Quick Details
-
Brand Name:
-
BTON
-
Use:
-
FTTH
-
Warranty Time:
-
3 Years
-
Optical Fiber:
-
single/multi mode
-
Transmision Distance:
-
2~120km
-
Connector:
-
TC/ST/SC/FC
-
Power Supply:
-
external/internal power supply
-
Color:
-
black/white/silver
-
Wavelength:
-
1310~1550nm
-
Logo:
-
OEM/ODM
-
Warranty:
-
3 years
-
Brand:
-
BTON
Quick Details
-
Type:
-

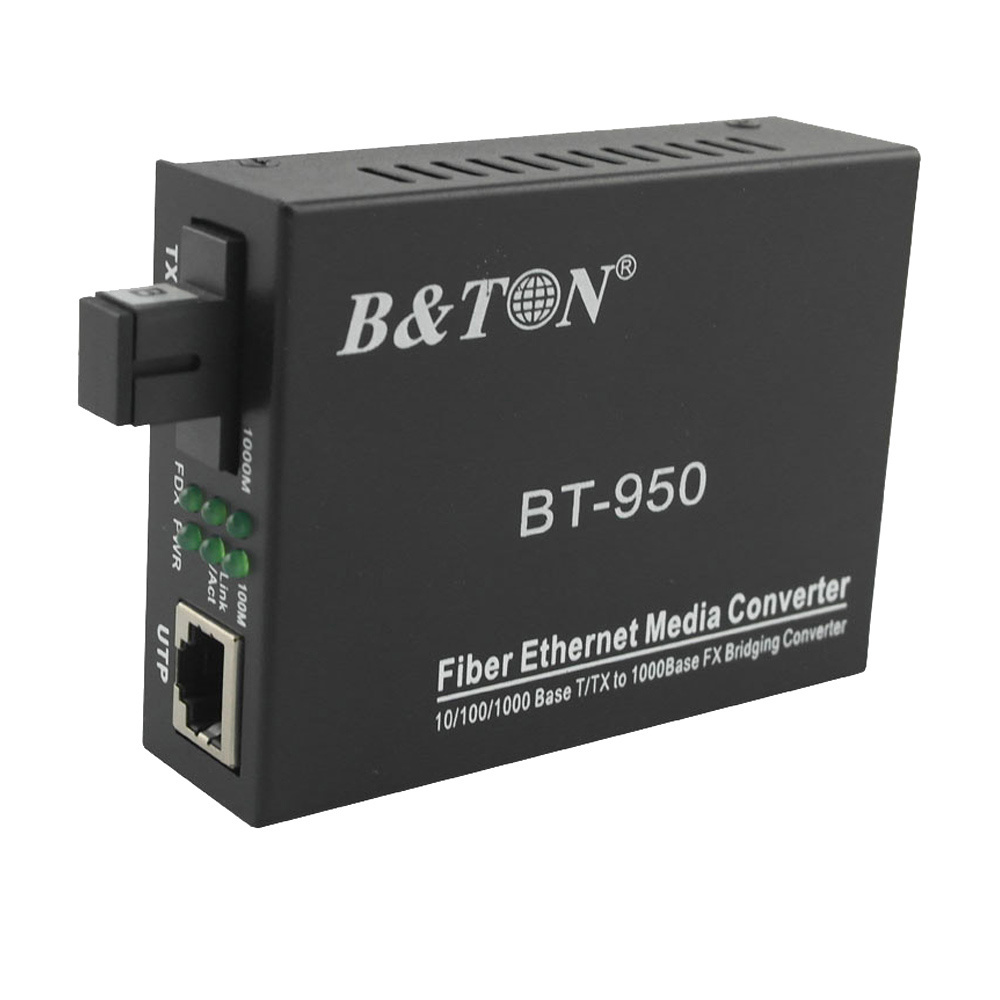

Fiber optic media converter
-
Model Number:
-
BT-950SM-25
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BTON
-
Use:
-
FTTH
-
Warranty Time:
-
3 Years
-
Optical Fiber:
-
single/multi mode
-
Transmision Distance:
-
2~120km
-
Connector:
-
TC/ST/SC/FC
-
Power Supply:
-
external/internal power supply
-
Color:
-
black/white/silver
-
Wavelength:
-
1310~1550nm
-
Logo:
-
OEM/ODM
-
Warranty:
-
3 years
-
Brand:
-
BTON
| Specification |
| Rate: self-adaptive 10/100M or 10/100/1000M |
| Protocol supported: IEEE802.3/IEEE802.3U etc. |
| Cable type: single / dual fiber |
| Optic mode: single / multimode |
| Transmission mode: half / full duplex |
| Ethernet interface: RJ-45 |
| Optic interface: SC/FC/ST |
| Optic wavelength: 850nm, 1310nm, 1550nm |
| BER: < 1/1000000000 |
| MTBF: 3 years |
| Power: 2.5W |
| Power supply: AC220V/0.5A, DC-48 V /0.5A, DC5V/1A |
| Working temperature: 0~50°C |
| Working humidity: 5%-95% |
| Storage temperature: -40°C~70°C |
| Storage humidity: 5%~95%(no-condensing) |
| Model | Optic fiber | Wavelength (nm) | Power | Rx sensitivity(dBm) | Transmission distance (KM) | Loss allowed |
| BT-950MM-2 | Multimode | 850/1310 | -20~-12 | -30 | 2 | 10 |
| BT-950SM-25 | Single mode | 1310 | -15~-7 | -34 | 25 | 19 |
| BT-950SM-40 | Single mode | 1310 | -9~-5 | -36 | 40 | 27 |
| BT-950GM | Multimode | 850 | -9.5~4 | -17 | 0.55 | 8 |
| BT-950GS-10 | Single mode | 1310 | -9~-3 | -21 | 10 | 12 |
| BT-950GS-20 | Single mode | 1310 | -6~-1 | -21 | 20 | 15 |
| BT-950GS-40 | Single mode | 1550 | -5~0 | -24 | 30 | 20 |
| BT-950SM-2A/B | Multimode | 1310/1550 | -14~-8 | -30 | 2 | 17 |
| BT-950SM-25A/B | Single mode | 1310/1550 | -6~-1 | -31 | 25 | 21 |
| BT-950SM-40A/B | Single mode | 1310/1550 | -8~-3 | -33 | 40 | 25 |
| BT-950GS-10A/B | Single mode | 1310/1550 | -6~-1 | -22 | 20 | 22 |
| BT-950GS-20A/B | Single mode | 1310/1550 | -6~-1 | -22 | 20 | 22 |
BTON Company
Factory Display
Testing and Olding
Certificates
About us:
Shenzhen Factory-BTON is a manufacturer of Fiber Media Converter, Fiber Video Converter, SFP Module and Optic Fusion Splicer with good quality ,all products with CE/FCC/RoHS approved. Welcome to send inquiry to us.
Hope your business will be better and better,and all goes well with you !
