- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
casas prefabricadas 100 m.2
-
Keyword:
-
Luxury Prefabricated Houses
-
Type:
-
Light Steel Structure Frame
-
Color:
-
Customized Color
-
Material:
-
Galvanized Steel Frame
-
Style:
-
Modern Simple
-
Design:
-
Costom Requests
-
MOQ:
-
100 Square Meters
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHONGLIAN
-
Model Number:
-
Prefab house
-
Product name:
-
casas prefabricadas 100 m.2
-
Keyword:
-
Luxury Prefabricated Houses
-
Type:
-
Light Steel Structure Frame
-
Color:
-
Customized Color
-
Material:
-
Galvanized Steel Frame
-
Style:
-
Modern Simple
-
Design:
-
Costom Requests
-
MOQ:
-
100 Square Meters

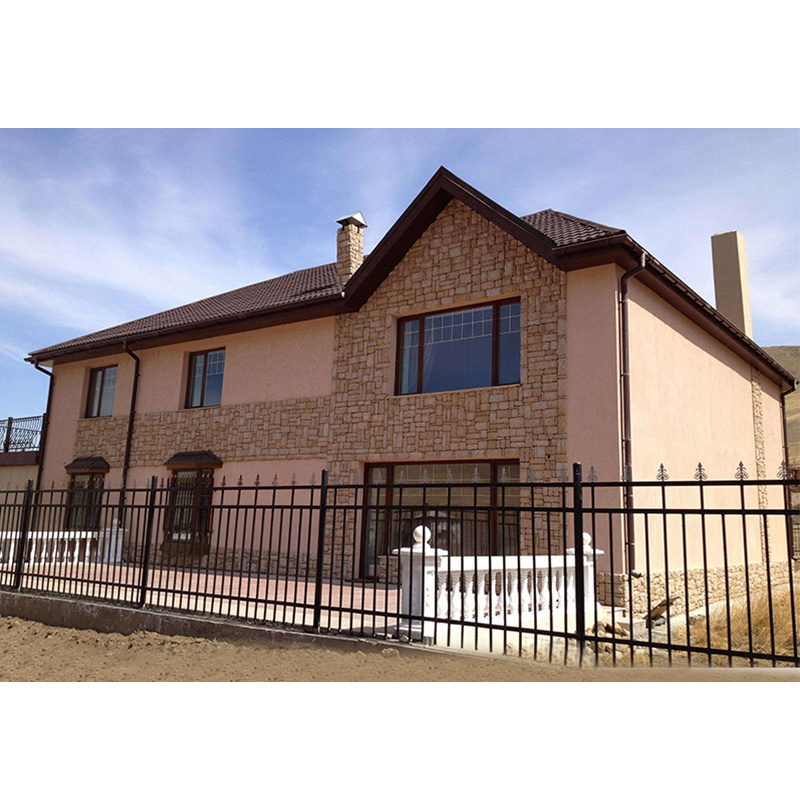

popular prefabricated home villa 100 m.2 modulares casas prefabricadas
Light steel structure workshop refers to the main load-bearing component is composed of steel. Including steel columns, steel beams, steel base, sandwich pannel, roof, windows and doors.
Specifications:
| 1 | Steel Structure Parts (Q235 or Q345) Hot galvanized or painted. | (1). Steel Column: H Section Steel |
| (2). Steel Beam: H Section Steel | ||
| (3). Withstand Wind Column: H Section Steel | ||
| (4). Connected beam: Circular Tube | ||
|
(5). Roof Purline: cold formed galvanized C Section Steel or Z Section Steel
|
||
|
(6). Wall purline: cold formed galvanized C Section Steel or Z Section Steel |
||
|
(7). End Wall purline: C Section Steel or Z Section Steel |
||
|
2
|
Panel Material parts | (1). External Wall panel: (below is selectable) |
| 1) 50mm, 75mm or 100mm thickness EPS sandwich panel | ||
| 2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel | ||
| 3) 900# Corrugated Galvanized Steel sheet with different Color | ||
| 4) Kinds of PVC wall panel. | ||
| (2). Internal Wall panel: (below is selectable) | ||
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel | ||
| 2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel | ||
| (3). Roofing panel: (below is selectable) | ||
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel | ||
|
2)50mm, 75mm or 100mm thickness Rockwool sandwich panel
|
||
| 3)Corrugated Steel Sheet, and insulating layer if need. | ||
| 4)Corrugated PVC roof panel. | ||
| (4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) | ||
|
3
|
Door and Window | (1). External Door ( Rolled up door or Sliding door ) |
| -1. Over-heat Orbit Sliding Door with double open | ||
| -2. Galvanized steel opening by power-operated Roller Door | ||
| (2). Internal Door: | ||
|
50mm Thickness EPS sandwich panel with aluminum alloy door frame |
||
| (3). Window: | ||
| PVC Window or aluminum alloy window frame with glass. | ||
| 4 | Drainage parts | (1).Galvanized water channel: |
|
2mm thickness galvanized steel water channel @ 3000mm or 2440mm/pcs |
||
| (2). Down spout: ∅110 PVC Down spout with Accessorie | ||
| 5 | Connecting Piece | (1) Purline draw bar: ∅12 |
| (2) Horizontal Bracing: ∅24 Circular Tube | ||
| (3) Knee-Bracing: L Steel | ||
| (4) Purline Drive pipe: Φ32*2 | ||
| (5) Column Bracing: ∅24 Circular Tube | ||
| 6 | Others | (1) Ventilating device |
| (2) Crane beam | ||
| (3) Canopy | ||
| (4) Bolt: Foundation bolt, High strengthen bolt, Normal bolts. | ||
|
We also have so many accessories, for example, steel bracket, bolts, self drilling screw, rivet, inner and outer cullies, rainspout, trimming sheet, glass cement, etc. you can buy them according to your exact requirement. |
||
