Quick Details
-
Material:
-
TPO
-
Length:
-
15m,20m,25m
-
Usage:
-
Waterproof Projects
-
Width:
-
1.0m, 2.0m
-
Certificate:
-
ISO
-
Color:
-
Black, White
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
PVC membrane update products TPO waterproofing membrane
-
Thickness:
-
1.2mm, 1.5mm, 1.8mm, 2.0mm
-
Material:
-
TPO
-
Length:
-
15m,20m,25m
-
Usage:
-
Waterproof Projects
-
Width:
-
1.0m, 2.0m
-
Certificate:
-
ISO
-
Color:
-
Black, White

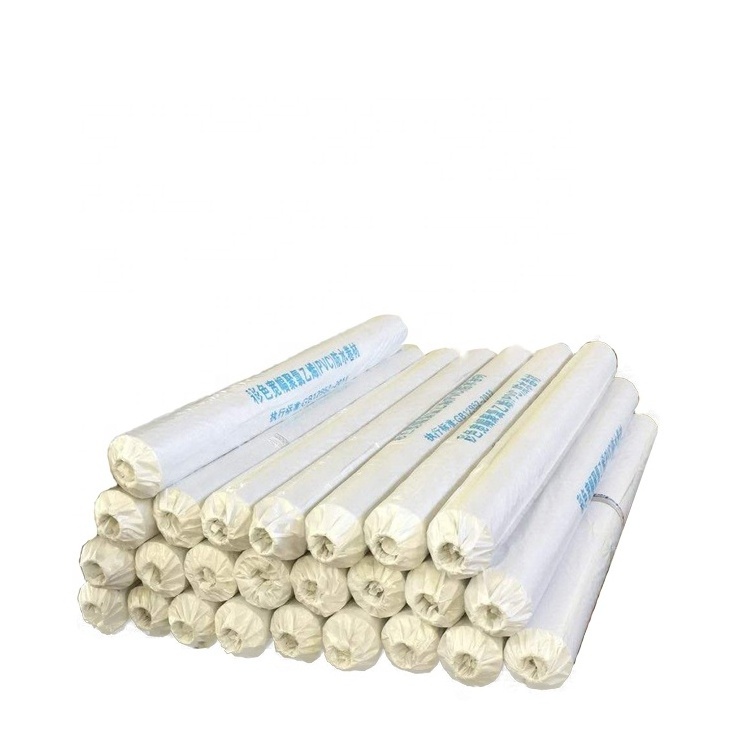

PVC membrane update products TPO waterproofing membrane
Production:
The TPO membrane is made from the incorporation of ethylene propylene rubber into polypropylene matrix and reinforced with polyester mesh or fabric backing or non-reinforcement. The very durable membrane has light color with a high solar reflection index (SRI), no toxic emissions, weatherproof and UV resistance.
Feature:
- High solar reflection index (SRI), weatherproof and UV /oxidation resistance, long service life
- High tensile strength and flexibility at low temperatures, good elongation
- Strong dimensions stability and adaptability to deformation and cracks, resistant to wind stress
- Excellent mechanical and chemical resistance
- High puncture and tear resistance, low weight
- No plasticizers or chlorinated ingredients Weldability and easy installation
Specification:
| NO. | Model | I | II | ||
| Base | PY | ||||
| 1 | Soluble Content g/m²≥ | 3mm | 2100 | 2100 | |
| 4mm | 2900 | 2900 | |||
| 5mm | 3500 | 3500 | |||
| Test | * | * | |||
| 2 | Impermeability 30min | Pressure | 0.3 | 0.3 | |
| MPa≥ | |||||
| 3 | Heat Resistance | °c | 90 | 105 | |
| ≤mm | 2 | ||||
| Test | No Flowing and Dripping | ||||
| 7 | Tearing strength | Longitudinal | 250 | 350 | |
| Transverse | |||||
| 4 | Low Temperature Flexibility°c | -18 | -25 | ||
| No Cracking | |||||
| 5 | Tension | Maximum (N/50mm) | 500 | 800 | |
| Secondly Maximum (N/50mm) | * | * | |||
| Test | No Cracking or apart | ||||
| 6 | Elongation | Maximum %≥ | 30 | 40 | |
| Secondly-Maximum %≥ | * | * | |||
