Quick Details
-
Place of Origin:
-
China
-
Housing Material:
-
Aluminium
-
Color of appearance:
-
Black, Silver
-
Length of tubes:
-
1500mm/1800mm
-
Diameter of tubes:
-
47mm/58mm
-
Heat Pipe Material:
-
Glass,glass with copper
-
Installation:
-
Free installation
-
Hail resistance:
-
25mm
-
Working temperature:
-
Antifreezing -40 degree
-
Heat preservation:
-
More than 72 hours
-
Use:
-
bathroom,heating system,hotel,school,swimming pool,hospital,etc
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Car
-
Type:
-
Evacuated Tube
-
Place of Origin:
-
China
-
Housing Material:
-
Aluminium
-
Color of appearance:
-
Black, Silver
-
Length of tubes:
-
1500mm/1800mm
-
Diameter of tubes:
-
47mm/58mm
-
Heat Pipe Material:
-
Glass,glass with copper
-
Installation:
-
Free installation
-
Hail resistance:
-
25mm
-
Working temperature:
-
Antifreezing -40 degree
-
Heat preservation:
-
More than 72 hours
-
Use:
-
bathroom,heating system,hotel,school,swimming pool,hospital,etc

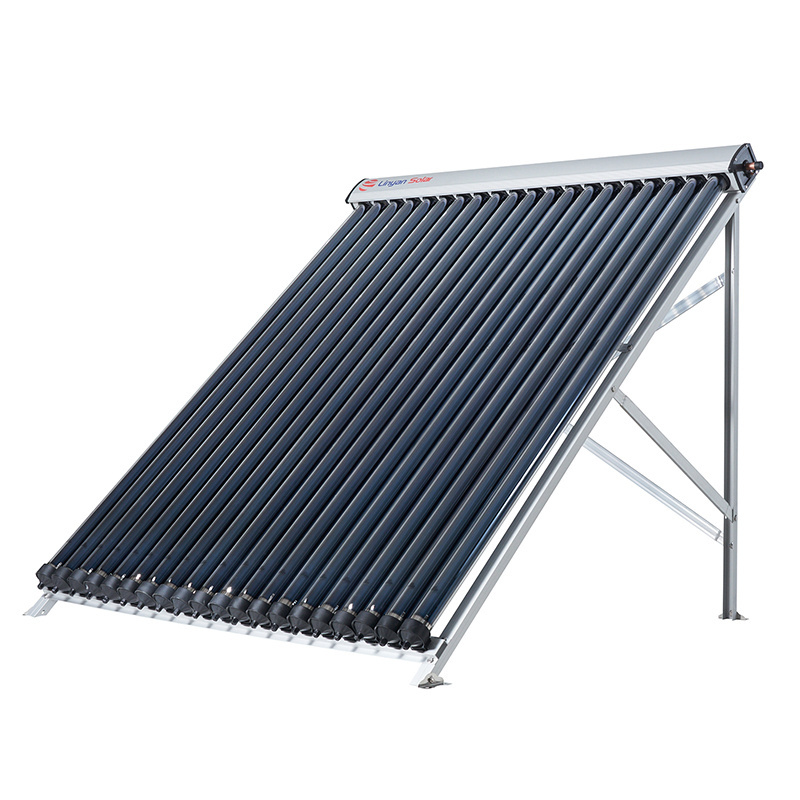

European Style Heat Pipe Solar Collector/Solar Panel/Solar Water Heater(Manufacturer)
Specifications
solar collector:
1.High efficient heat pipe for split system
2.Solar keymark,SRCC,CE,ISO9001,CCC,SGS certified
3.High quality and pure copper
Heat Pipe Solar Collector Work Principle:
|
Inner manifold material
|
Red copper material |
|
Outer shell material of manifold
|
Aluminium alloy |
|
Frame/Bracket material
|
Aluminium alloy |
| Heat pipe material |
99.93% pure copper / lead free ,45%silver brazing |
|
Rubber Seals and rubber Rings
|
HTV grade silicone rubber |
|
Optional installation angle
|
0°,30° ,38° ,45° |
|
Maximum Operating Pressure
|
12bar |
|
Vacuum tube
|
47mm*1500mm,58mm*1800mm with heat pipe |
|
Daily efficiency
|
=55%(=42% in winter) |
|
Hailstone resistance
|
Dia =25mm |
|
Optional flow rate
|
0.1L/min/tube 0.026G/min/tube |
|
Heat pipe anti-freezing
|
=-40 Celsius degree |
|
Life span
|
More than 15 years |
|
Working pressure
|
0.6MPa(6bar) |
|
Insulation
|
Rock wool /Polyurethane |
We can customize according to customers' requirement
