Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SAICHUAN
-
Model Number:
-
SS1
-
Product name:
-
Battery Storage Connector
-
Material:
-
PA66+copper alloy,tin/silver plated
-
Withstanding voltage:
-
3000V AC
-
Rated voltage:
-
1500V AC
-
Rated current:
-
max400A
-
wire gauge:
-
10mm2/25mm2/35mm2/50mm2/70mm2/95mm2/120mm2
-
Mating cycles:
-
500times
Quick Details
-
Type:
-
hv connector
-
Application:
-
connector for energy storage battery
-
Gender:
-
Male-Female
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SAICHUAN
-
Model Number:
-
SS1
-
Product name:
-
Battery Storage Connector
-
Material:
-
PA66+copper alloy,tin/silver plated
-
Withstanding voltage:
-
3000V AC
-
Rated voltage:
-
1500V AC
-
Rated current:
-
max400A
-
wire gauge:
-
10mm2/25mm2/35mm2/50mm2/70mm2/95mm2/120mm2
-
Mating cycles:
-
500times

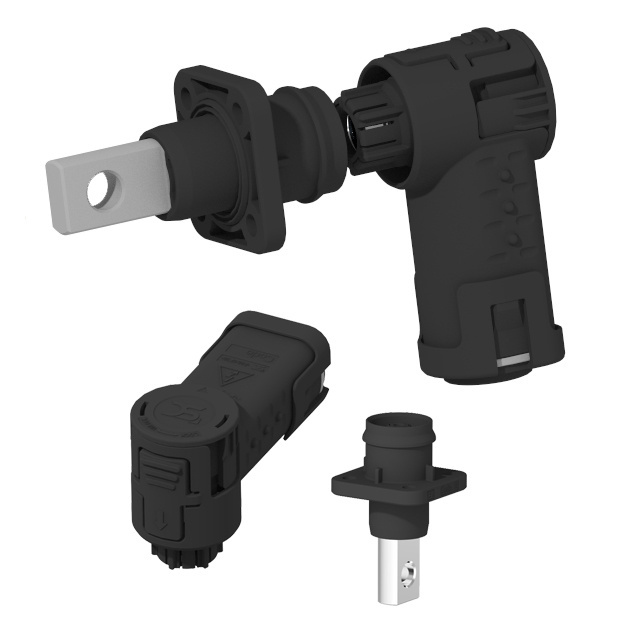

High voltage HV energy storage connector 60A-400A IP67 Plastic 6mm-14mm Contact Plug HV connector
The SS1 series products are connectors for energy storage systems, which are a type of energy storage connector developed by our company specifically for the energy storage industry. They mainly include three products: 60A~120A, 120A~200A, and 250A~400A. The socket of this series of products is individually sealed with IP67 (optional), and after the head seat is inserted, it can meet IP67 (optional). It has functions such as key position and positive and negative pole color double error prevention, 360 ° arbitrary angle insertion, etc., making it convenient and fast to achieve blind insertion. This product has been granted a patent for a 360 ° rotatable plug-in energy storage connector.
|
Product name
|
ENERGY STORAGE CONNECTOR, HV connector
|
|
|
|
|||
|
Rated Voltage
|
1500V
|
|
|
|
|||
|
Rated Current
|
400A max
|
|
|
|
|||
|
Insulation Resistance
|
5000MΩ
|
|
|
|
|||
|
Shielding
|
360°
|
|
|
|
|||
|
IP Rating
|
IP67 (optional), IP69K, socket separately sealed (optional)
|
|
|
|
|||
|
Operating Temperature
|
-40℃~125℃
|
|
|
|
|||
|
Flammability Rating
|
UL94 V-0
|
|
|
|
|||
|
Shell
|
nylon
|
|
|
|
|||
|
Contact Specifications
|
Adapting Cable
|
Rated Current
|
|
6mm
|
10mm²/16mm²/25mm²
|
60A/80A/120A
|
|
8mm
|
25mm²/35mm²/50mm²
|
120A/150A/200A
|
|
12mm
|
70mm²/95mm²/120mm²
|
250A/300A/350A/400A
|
