- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOYU
-
Voltage:
-
380V/420V
-
Dimension(L*W*H):
-
1650*920*1630mm
-
Marketing Type:
-
brick machine supermarket
-
Weight (KG):
-
400 kg
-
material:
-
clay.soil.mud,cement
-
molding cycle:
-
20-25s
-
capacity:
-
300pcs/h
-
size:
-
1650*920*1630cm
-
brick type:
-
solid and hollow block
-
forming pcs:
-
2pcs
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
2400pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOYU
-
Voltage:
-
380V/420V
-
Dimension(L*W*H):
-
1650*920*1630mm
-
Marketing Type:
-
brick machine supermarket
-
Weight (KG):
-
400 kg
-
material:
-
clay.soil.mud,cement
-
molding cycle:
-
20-25s
-
capacity:
-
300pcs/h
-
size:
-
1650*920*1630cm
-
brick type:
-
solid and hollow block
-
forming pcs:
-
2pcs

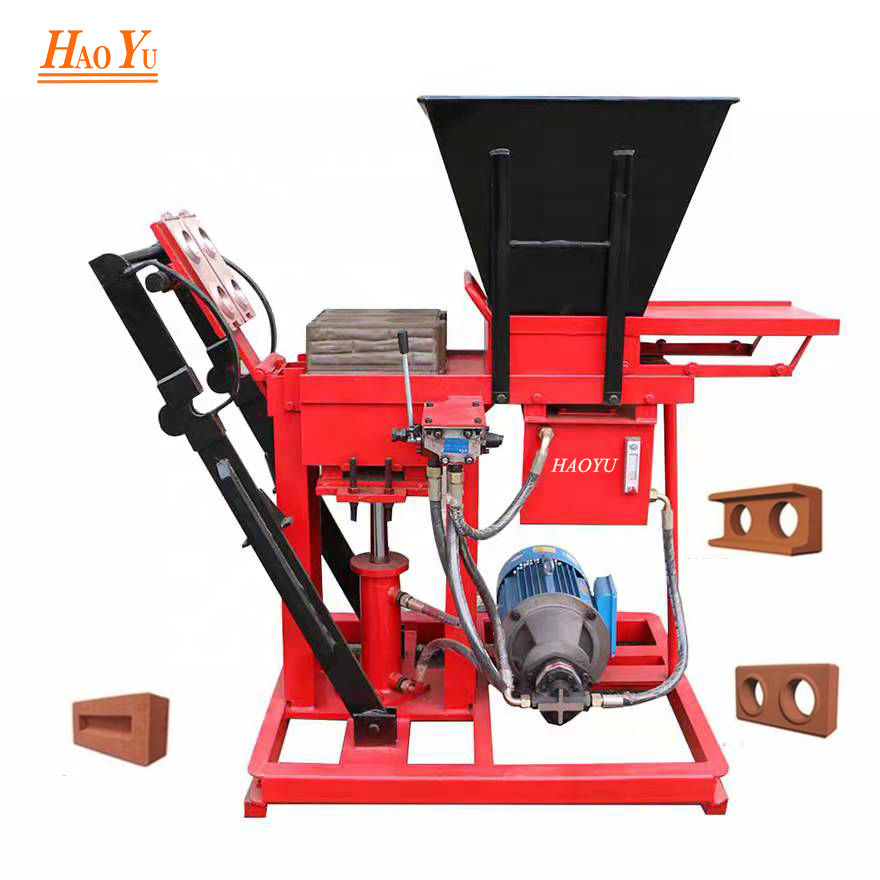

| Parameter of HY2-25 interlock cement clay brick machine | |
| Overall Size | 1650*920*1630mm |
| Total Mass | 400kg |
| Power Source | Diesel engine/motor |
| Power | 5.5KW |
| Rated Pressure | Hydraulic 16MPa |
| Cycle | 20-25s |
| Capacity | 2400pcs/day(8h) |
| block sameple |
| Raw material for interlock block making machine ma |
| Clay and Cement | |
| Raw Material | Quantity per piece |
| Cement | 6~8% |
| Clay | 80 ~90% |
| Water | 3% |
| Other Specify | You can change the proportion depend on our needs.This brick is heavy.but strong |
| Full Clay | |
| Raw Material | Quantity per piece |
| Clay | 97% |
| Water | 3% |
| Other Specify | You can change the proportion depend on our needs.This brick is heavy.but strong |
1.Manual interlock brick making machine
| Price list and Technical Parameter |
| No | Model | KW | Pcs/Cycle | Capacity(pcs/h) | Pcs/8hours | Price(USD) |
| 1 | HY1-40 | No | 1 | 90∼100 | 720∼800 | 600∼680 |
| 2 | Hy2-40 | No | 2 | 180∼200 | 1440∼1600 | 700∼780 |
2.Semi-automatic interlock brick making machine
|
♦ Diesel engine or Elecricity can be selected ♦ Three or Single phase options ♦ The oil cylinder are tailor-made for the brick machine,high quality and low failure rate |
| NO. | Model | HP | KW | Pcs/Cycle | Capacity(pcs/h) | Pcs/8hours | Price USD |
| 1 | HY1-25 | 6 | 2.2 | 1 | 144∼180 | 1152-1440 | 2400-2800 |
| 2 | HY2-25 | 8 | 4 | 2 | 288∼360 | 2204-2880 | 2800-3200 |
| 3 | ECO2700 | 12 | 5.5 | 1 | 270∼340 | 2160-2720 | 3500-4000 |
| 4 | ECO7000 | 12 | 5.5 | 2 | 480∼580 | 3840-4800 | 4000-4500 |
3.Middle capacity automatic interlock brick making machine
4.Big capacity automatic interlock brick making machine
| NO | Model | KW | Pcs/Cycle | Capacity(Pcs/h) | Pcs/8hours | Price USD |
| 1 | HY 1-10 | 5.5 | 1 | 360∼430 | 2880∼3440 | 3500∼4500 |
| 2 | HY 2-10 | 7.5 | 2 | 720∼860 | 5760∼6880 | 4500∼5500 |
| 3 | HY 4-10 | 11 | 4 | 1400∼1720 | 11520∼13760 | 8000∼9000 |
| 4 | HY 5-10 | 11 | 5 | 1800∼2150 | 14400∼17200 | 9000∼10000 |
5.Movable automatic interlock brick making machine
| NO | Model | HP | KW | Pcs/Cycle | Capacity(Pcs/H) | Pcs/8hours | Price USD |
| 1 | HY 1-20 | 8 | 3 | 1 | 180∼220 | 1440∼1750 | 2700∼3000 |
| 2 | M7M1 | 8 | 1 | 275∼300 | 2200∼2500 | 4500∼5500 | |
| 3 | M7MI Twins | 10 | 2 | 550∼600 | 4400∼4800 | 6000∼7000 |
