Quick Details
-
Jacket:
-
XLPE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinbo
-
Model Number:
-
PV1-F
-
solar cable Rated Voltage:
-
0.6-1KV
-
Insulation Diameter:
-
5±0.15 mm
-
Cable Color:
-
Black / Red
-
Insulation Thickness:
-
1.2±0.10 mm
-
Approx Outer Diameter:
-
6mm
-
Approx Cable Weight:
-
70kg/km
-
Sunlight Resistant cable Certificate:
-
ISO,CCC,OHSAS,etc
-
Conductor construction:
-
56/0.3mm
-
working temperature:
-
-40-125 ℃
-
solar cable OEM/ODM:
-
available
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Power Station
-
Conductor Material:
-
Copper
-
Jacket:
-
XLPE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinbo
-
Model Number:
-
PV1-F
-
solar cable Rated Voltage:
-
0.6-1KV
-
Insulation Diameter:
-
5±0.15 mm
-
Cable Color:
-
Black / Red
-
Insulation Thickness:
-
1.2±0.10 mm
-
Approx Outer Diameter:
-
6mm
-
Approx Cable Weight:
-
70kg/km
-
Sunlight Resistant cable Certificate:
-
ISO,CCC,OHSAS,etc
-
Conductor construction:
-
56/0.3mm
-
working temperature:
-
-40-125 ℃
-
solar cable OEM/ODM:
-
available
Rated voltage 0.6 / 1KV photovoltaic cable
1.pv solar cable 10mm Overview
This product is a new energy device supporting products, based on the German Rhine TUV 2Pfg1169 standard production, mainly for indoor and outdoor solar installations and large-scale photovoltaic power plants. With anti-aging, low smoke and halogen free, UV resistance, weather resistance and a wide range of temperature resistance and other characteristics, in complex environments to maintain its excellent electrical and mechanical properties, compared with ordinary cables with more reliable performance.
2.pv solar cable 10mm Product standards:
2Pfg 1169 / 08.2007 (German standard)
Q / XBGF002 (standard)
3.The use of features pv solar cable 10mm:
a) Long-term working temperature of the cable: -40-125 ℃ ;
b) The rated voltage of the cable: AC 0.6 / 1kv;
c) Cable bend radius: ≥ 4D
XLPE Single Twin Core Solar battery Pannel System Cable TUV 2pfg Pvf1-F 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm PV Solar cable wire
XLPE Single Twin Core Solar battery Pannel System Cable TUV 2pfg Pvf1-F 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm PV Solar cable wire
XLPE Single Twin Core Solar battery Pannel System Cable TUV 2pfg Pvf1-F 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm PV Solar cable wire
XLPE Single Twin Core Solar battery Pannel System Cable TUV 2pfg Pvf1-F 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm PV Solar cable wire
pv solar cable 10mm Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions.
pv solar cable 10mm Technical specification:
|
Cross Section mm2 |
Insulation Mediun Thickness(mm) |
Sheath Mediun Thickness(mm) |
Electric res. At 20℃ ≤ Ω/km |
Testing Voltage A.C.kv/5min |
|
1x1.5 |
0.7 |
0.8 |
13.5 |
6.5 |
|
1x2.5 |
0.7 |
0.8 |
8.21 |
6.5 |
|
1x4 |
0.7 |
0.8 |
5.09 |
6.5 |
|
1x6 |
0.7 |
0.8 |
3.39 |
6.5 |
|
1x10 |
0.7 |
0.8 |
1.95 |
6.5 |
|
1x16 |
0.7 |
0.8 |
1.24 |
6.5 |
pv solar cable 10mm Description:
|
Product Name |
4mm dc solar cable |
|
Solar cable Modle no. |
PV1-F |
|
Conductor Material |
Tinned copper |
|
Conductor construction |
56/0.3mm |
|
Insulation material |
XLPE |
|
Insulation Diameter |
5±0.15 mm |
|
Insulation Thickness |
1.2±0.10 mm |
|
Jacket material |
XLPE |
|
Approx Outer Diameter |
6mm |
|
Approx Cable Weight |
70kg/km |
|
Cable Color |
Black / Red |

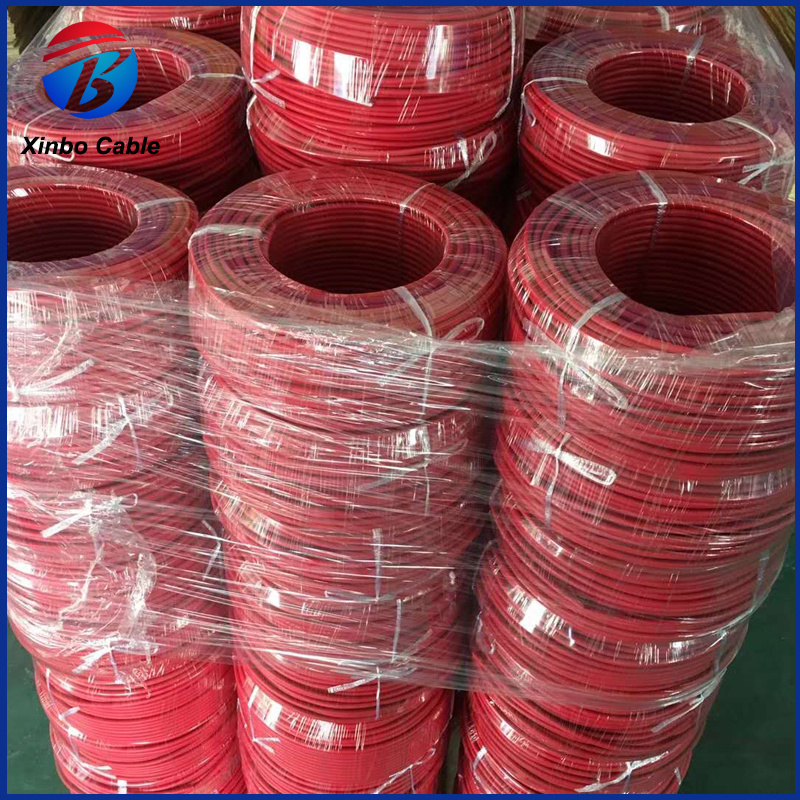

pv solar cable 10mm packaging details:
