Quick Details
-
Panel Size:
-
256*128mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GTKF-001
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Pixel configuration:
-
SMD 1R1G1B
-
Keyword:
-
360 degree led display
-
Item:
-
led sphere display
-
Product name:
-
led ball display
-
Screen Dimension:
-
Customized
-
Pixel Pitch:
-
4mm
Quick Details
-
Application:
-
indoor advertising
-
Brand Name:
-
GTEAK
-
Color:
-
Full color
-
Panel Size:
-
256*128mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GTKF-001
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Pixel configuration:
-
SMD 1R1G1B
-
Keyword:
-
360 degree led display
-
Item:
-
led sphere display
-
Product name:
-
led ball display
-
Screen Dimension:
-
Customized
-
Pixel Pitch:
-
4mm
360 degreen led sphere display of ball style for exhibition
1.Our own designed small size led module 64*64mm for the curved led tv screen
2. Linsn control system. P4 indoor led modules for this curved led screen
3. Special style and customied size.
4.Application: Mainly used in meeting room, stage show,Exhibiion center, TV studio,shopping mall,railway station,church,bank for the advertising,live show, training, teaching etc. church, shopping mall, airport, railway station and other outdoor advertising and sign display applications
5. P2.5, P3, P4, P5 P6 different choice.
| Parameter | GTKF-001 | |
| Basic | Pixel Configuration | SMD 3 in 1 |
| Parameter | Pixel Pitch (mm) | 4mm |
| Pixel Density | 62,500 pixels/m2 | |
| Module Resolution | 16*16 pixels | |
| Module Dimension | 64mm×64mm | |
| Weight | 9.0 kg/cabinet | |
| Cabinet Material | Flexible PCB board | |
| Frame Frequency (Hz) | 50/60Hz | |
| Brightness (nit) | more than 1200 cd/m2 | |
| Viewing angle | 140°/140° | |
| Flatness error | ≤0.5mm | |
| Using Parameter | Working Voltage (V) | 220V±15% |
| Max. Power Consumption | 800W/m2 | |
| Storage Temperature (°C) | -20~60 | |
| Operating Temperature (°C) | -10~40 | |
| Storage Humidity (RH) | 10%~90% | |
| Operating Humidity (RH) | 10%~90% | |
| Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION ect | |
| Lifetime Typical Value (hrs) | 100,000 | |

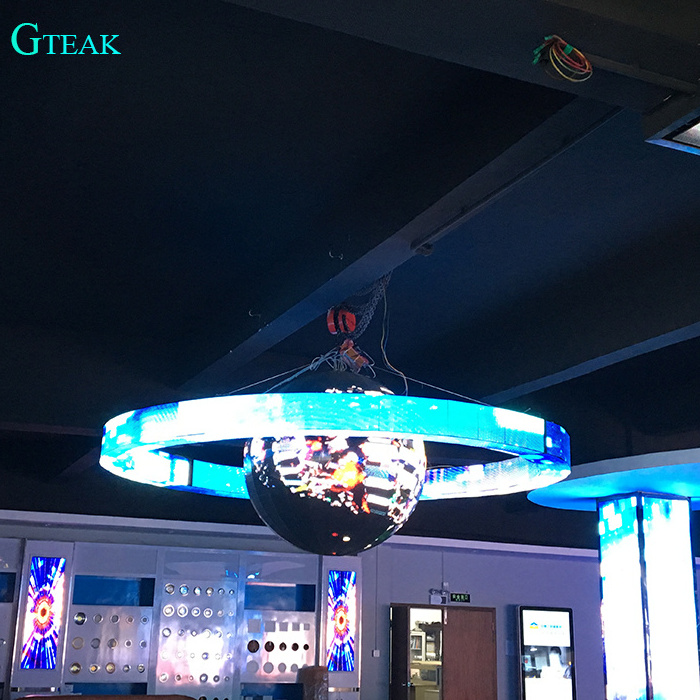

led sphere display For the hanging style.Or we can accept customized size and shape.
Also we have other plat round led display
Other flexible products introduction
.Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any uneven or curved led screen .
2.Super thin and light
led ball display is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.
3.Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the on the surface for the curved led tv screen .
4.Low power consumption
The maximal power consumption of a module is less than 12W
5.Wide application
Can be used in so many fields and occasions ,especially in all kinds of irregular buildings . For example hotel advertising,stage renting,television,shopping malls,big markets,outdoor stadiums,concerts, fairground ,sightseeing districts, etc...
