Quick Details
-
Rated Voltage:
-
3V, 5V
-
Frequency:
-
2048
-
Application:
-
Emergency Lights, Car Instruments, Computer Case
-
Material:
-
ABS, ABS
-
Voltage Range:
-
1.5~3.3V, 3.3~5V
-
Voltage - Rated:
-
3 Volt, 5 Volt
-
Features:
-
Passive
-
Mounting Type:
-
2 pin
-
Size / Dimension:
-
12*6.5(mm)
-
Description:
-
breadboard buzzer
-
Product name:
-
buzzer speaker
-
Buzzer type:
-
buzzer 5v 12065
-
Operating Voltage:
-
1.5V, 3V, 3.3V, 5V
-
Sound pressure at 10cm:
-
Min 80dB
-
Oscillation frequency:
-
2048hz
-
Response time:
-
Max 50ms
-
Active or passive:
-
Passive
-
Operation temperature:
-
-20~80℃
-
Connection:
-
2 pin
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
ISSR
-
Model Number:
-
12075
-
Rated Voltage:
-
3V, 5V
-
Frequency:
-
2048
-
Application:
-
Emergency Lights, Car Instruments, Computer Case
-
Material:
-
ABS, ABS
-
Voltage Range:
-
1.5~3.3V, 3.3~5V
-
Voltage - Rated:
-
3 Volt, 5 Volt
-
Features:
-
Passive
-
Mounting Type:
-
2 pin
-
Size / Dimension:
-
12*6.5(mm)
-
Description:
-
breadboard buzzer
-
Product name:
-
buzzer speaker
-
Buzzer type:
-
buzzer 5v 12065
-
Operating Voltage:
-
1.5V, 3V, 3.3V, 5V
-
Sound pressure at 10cm:
-
Min 80dB
-
Oscillation frequency:
-
2048hz
-
Response time:
-
Max 50ms
-
Active or passive:
-
Passive
-
Operation temperature:
-
-20~80℃
-
Connection:
-
2 pin

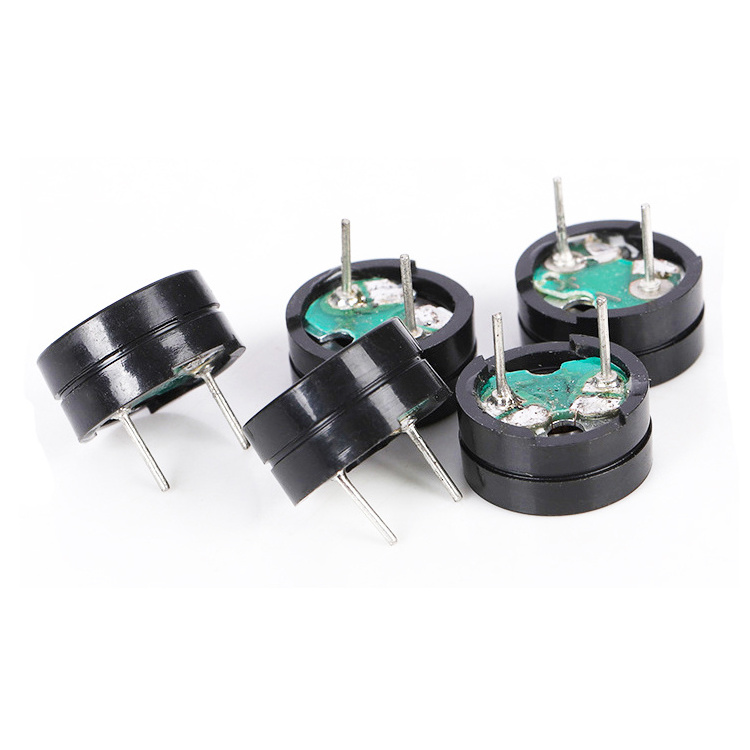

IISSR Wholesale 12mm 80dB 1.5V~5V Passive Buzzer Speaker for Emergency Light Toys Instruments Breadboard Magnetic Buzzer 5V 12065
| Comparison Item | Piezo Electric Buzzer | Magnetic Buzzer |
| Power consumption | Small (Voltage type) | Larger (Current type) |
| Spare parts | Small | More |
| Thinning | Easy | More difficult |
| Weight | Light | Heavier |
| Sound pressure | Medium | Large |
| Sound quality | Medium | Good |
| Working principle | Use the piezoelectric effect of piezo ceramics to drive the vibration of the metal sheet to produce sound | Use an electromagnetic coil to drive a metal vibrating diaphragm to produce sound |
| Comparison Item | Passive Buzzer | Active Buzzer |
| Price | Cheap | More expensive |
| Drive type | Require an external excitation signal | No need external excitation signal |
| Sound frequency | Controllable and adjustable | Not adjustable |
| Appearance | Circuit boards are usually exposed | Circuit boards are usually covered with vinyl |
| Test | Set the multimeter to the ohm block RX1. Then, use the black test lead to connect the positive terminal of the buzzer. Touch slowly. If it makes a clicking sound and the resistance value is 8Ω or 16Ω or 42Ω, etc., it is a passive buzzer. | If it emits a continuous sound and the resistance is above a few hundred ohms, it is an active buzzer. |
Specifications of Buzzer & Speaker
________________________________________________________________________________________________________________
| Buzzer Model | 12065 |
| Buzzer Type | Magnetic Buzzer |
| Active or Passive | Passive |
| Rated Voltage | 3V, 5V |
| Operating Voltage | 1.5~3.3V for 16ohm, 3.3~5V for 42ohm |
| Operating Temperature | -30℃~+60℃ |
| Sound Output at 10cm (dB) | Min. 80dB |
| Oscillation Frequency | 2048Hz |
| Dimension | Φ12 x H6.5 mm |
| Weight | 4g |
Buzzer & Speaker Production Process
________________________________________________________________________________________________________________
Buzzer & Speaker Products Show
________________________________________________________________________________________________________________
Buzzer & Speaker Package
________________________________________________________________________________________________________________
Applications of Buzzer & Speaker
________________________________________________________________________________________________________________
Our Certificates
________________________________________________________________________________________________________________
Our company has obtained more than 20 patents as well as software copyrights. Moreover, ISSR has obtained ISO,9001, CE, ROHS, UL certificates. In addition, our transducers are certified by NSF IATF16949:2016.
