Quick Details
-
Lift Speed:
-
8m/min
-
Year:
-
2023
-
Weight (KG):
-
2000 kg
-
Product name:
-
CD1 MD1 Electric hoist
-
Application:
-
Construction Building Passenger Hoist Lifter
-
Capacity:
-
0.5-10t
-
Running speed:
-
20m/min
-
Sling type:
-
Wire rope
-
Lifting height:
-
6-30m
-
Over load limit:
-
Available
-
mine hoist hook:
-
Double thicken
-
Quality:
-
Check one by one
-
color:
-
Customquirmentsers' Re
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yongniu
-
Lift Speed:
-
8m/min
-
Year:
-
2023
-
Weight (KG):
-
2000 kg
-
Product name:
-
CD1 MD1 Electric hoist
-
Application:
-
Construction Building Passenger Hoist Lifter
-
Capacity:
-
0.5-10t
-
Running speed:
-
20m/min
-
Sling type:
-
Wire rope
-
Lifting height:
-
6-30m
-
Over load limit:
-
Available
-
mine hoist hook:
-
Double thicken
-
Quality:
-
Check one by one
-
color:
-
Customquirmentsers' Re
Product Description

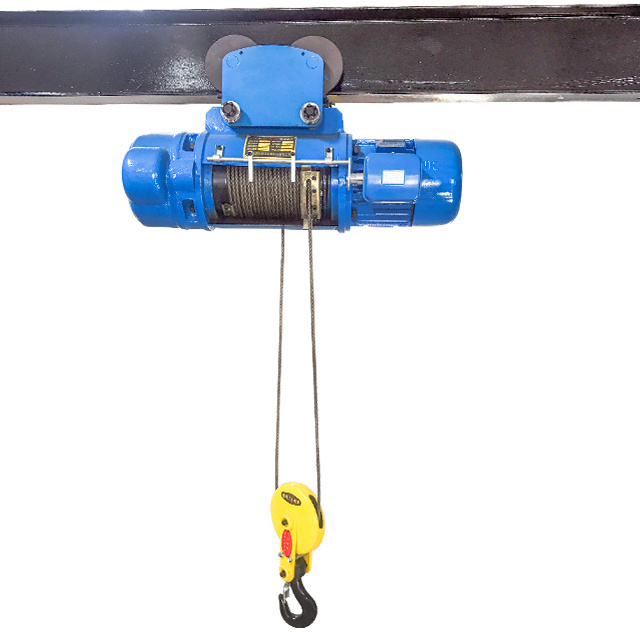

CD1/MD1 type electric hoist
CD1/MD1 type steel- wire rope electric hoist is a small lifting equipment . It is structure of compact, light in weight, small -sized shape ,and smooth operation etc. If a hard gear reducer is used, the mechanical life will be lengthened and effciency will be higher. Conical rotor brake motor has safety restricitions on both side.
MD1 type electric hoist has a fast,steady lifting speed that keeps it stable. CD1,MD1 type steel -wire rope electric hoist can widely used for lifting weights.
Specification
|
Model
|
CD1/MD1
|
|
|
|
|
|
|||||
|
Lifting weight(t)
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|||||
|
Lifting height(m)
|
6-30
|
|
|
|
|
|
|||||
|
Lifting speed (m/min)
|
8、8/0.8
|
|
|
|
|
7、7/0.7
|
|||||
|
Running speed (m/min)
|
20
|
|
|
|
|
|
|||||
|
Diameter (mm)
|
4.8
|
7.7
|
11
|
13
|
15
|
15
|
|||||
|
I -Beam orbit (mm)
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
28a-63c
|
28a-63c
|
|||||
|
Lifting motor Power (kw)
|
0.8/0.8/0.2
|
1.5/1.5/0.2
|
3、3/0.4
|
4.5、4.5/0.4
|
7.5、7.5/0.8
|
13、13/1.5
|
|||||
|
Running motor Power (kw）
|
0.2
|
0.2
|
0.4
|
0.4
|
0.8
|
0.8*2
|
|||||
|
Power voltage
|
3p 220-660V 50/60Hz
|
|
|
|
|
|
|||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
