Quick Details
-
Dimension(L*W*H):
-
L2300*W1450*H800
-
Weight:
-
850 KG
-
Product name:
-
Industrial Machinery Woodworking Machinery Wood Crushers
-
Raw material:
-
Straw Grass Wood Branches
-
Keywords:
-
Small forestry machinery
-
Blades:
-
3 moving knives, 1 static knife
-
Max log diameter:
-
10cm
-
Feature:
-
Petrol wood crusher machine
-
Chips size:
-
1-3cm
-
Advantage:
-
Low Power Consumption
-
Feed conveyor link length:
-
2m
-
Color:
-
Customised
Quick Details
-
Use:
-
Cutting Forestry Wood Log Waste
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
jiunuo
-
Dimension(L*W*H):
-
L2300*W1450*H800
-
Weight:
-
850 KG
-
Product name:
-
Industrial Machinery Woodworking Machinery Wood Crushers
-
Raw material:
-
Straw Grass Wood Branches
-
Keywords:
-
Small forestry machinery
-
Blades:
-
3 moving knives, 1 static knife
-
Max log diameter:
-
10cm
-
Feature:
-
Petrol wood crusher machine
-
Chips size:
-
1-3cm
-
Advantage:
-
Low Power Consumption
-
Feed conveyor link length:
-
2m
-
Color:
-
Customised
PRODUCT SPECIFICATIONS
|

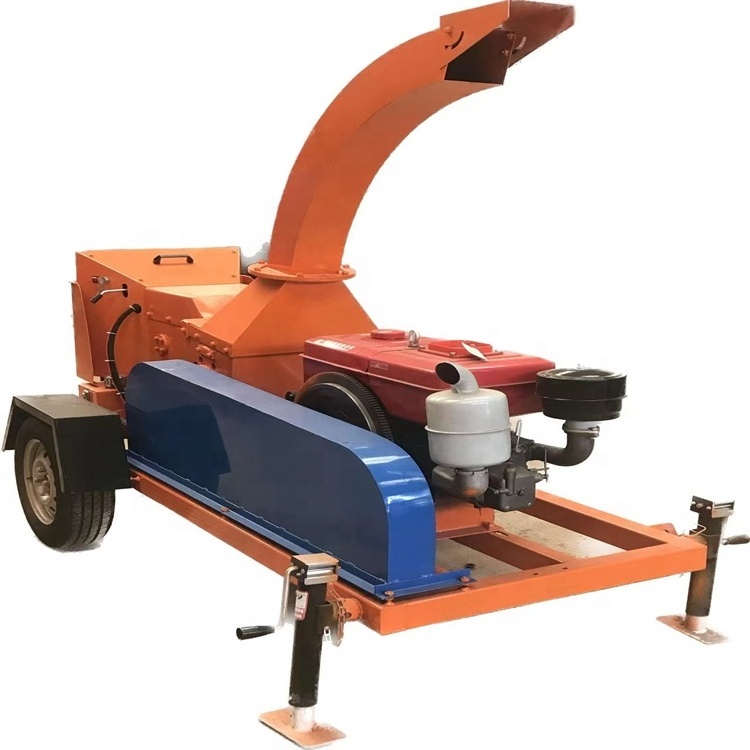

Tree branch crusher
|
JN6130
|
Data
|
|
|
|
diesel-powered
|
Motor powered type
|
|
|
Cutter disc diameter mm
|
300
|
300
|
|
|
Matching power
|
25Hp diesel engine
|
4P-22Kw
|
|
|
Starting mode
|
Electric starting
|
Air switch
|
|
|
Main engine speed
|
2600r/min
|
2900r/min
|
|
|
Number of blades
|
Three operating knives and one static knife
|
Three operating knives and one static knife
|
|
|
Blade length mm
|
300
|
300
|
|
|
Feed roller diameter
|
280mm
|
280mm
|
|
|
Feed roller power
|
Hydraulic motor
|
Hydraulic motor
|
|
|
Feed gear
|
In one reverse one stop three manual control
|
In one reverse one stop three manual control
|
|
|
Feed throat size mm
|
300x200
|
300x200
|
|
|
Tyre size
|
165/70r13
|
165/70r13
|
|
|
Hub size
|
13 "aluminum alloy wheels
|
13 "aluminum alloy wheels
|
|
|
Generator power
|
600w
|
There is no
|
|
|
Battery specification
|
12V 105aH
|
There is no
|
|
|
Discharge port direction
|
360 degree quick adjustment device
|
360 degree quick adjustment device
|
|
|
Other configuration
|
Taillight, feed light, foldable hand jack, adjustable traction height
|
Foldable hand jack, adjustable traction height
|
|
FEATURES AT A GLANCE
Left elevation
Right elevation
Front elevation
PRODUCT DETAIL DESCRIPTION
The blade is made of A8 material to improve the crushing efficiency
A8 tungsten steel double blade material, extended service life.
Hydraulic forced feed to improve crushing efficiency
Hydraulic forced feeding, easy operation, higher production efficiency.
Diesel operation, power and fuel saving
Diesel operation, power and fuel saving.
The discharge port can be rotated 360 degrees at will
Adjustable discharge Angle, direct injection to the hopper, adjustable discharge cover, free adjustment of discharge distance.
Large and ultra-long feed port, more efficient operation.
Feeding and discharging are safe and convenient, and multi-person operation is more efficient
The load-bearing force of aluminum alloy wheels is convenient
Lightweight tires are stable and adaptable to more complex scenarios
The motor version adds control cabinet equipment for safer operation
Safe work for you to consider more
All-round safety warning stickers
Simple and convenient operation safe operation details determine success or failure
Adopt safety warning lights for you to consider more.
The equipment is equipped with warning lights for safer operation
Hand lift support frame
Adjustable height Adjustable height Applicable to various scenarios
APPLICABLE SCENE
Use in multiple scenarios
Crushing effect can be seen, strong crushing easily won.
COMPANY PROFILE
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of"quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
CERTIFICATES & HONORS
PACKING&SHIPPING
We provide the right products according to the customer's budget and the size of the workshop, Accortling to your business development stage and specfic requirements, we provide protessional soluttans. Secvices include equipment configuration, workshop layout, installaion and debugging, equipment operation and maintenance training, turnkey engineering services and other professionai consulting.
