Quick Details
-
Model Number:
-
FPV5806, FPV5806
-
Size:
-
as show
-
For Vehicle Type:
-
Airplanes
-
Tool Supplies:
-
Battery
-
Four-wheel Drive Attributes:
-
Assemblage
-
Remote Control Peripherals/Devices:
-
Remote Controller
-
Upgrade Parts/Accessories:
-
Adapter
-
RC Parts & Accs:
-
Transmitters
-
Material:
-
Metal
-
Origin:
-
Mainland China
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FPV5806, uuustore
-
Model Number:
-
FPV5806, FPV5806
-
Size:
-
as show
-
For Vehicle Type:
-
Airplanes
-
Tool Supplies:
-
Battery
-
Four-wheel Drive Attributes:
-
Assemblage
-
Remote Control Peripherals/Devices:
-
Remote Controller
-
Upgrade Parts/Accessories:
-
Adapter
-
RC Parts & Accs:
-
Transmitters
-
Material:
-
Metal
-
Origin:
-
Mainland China

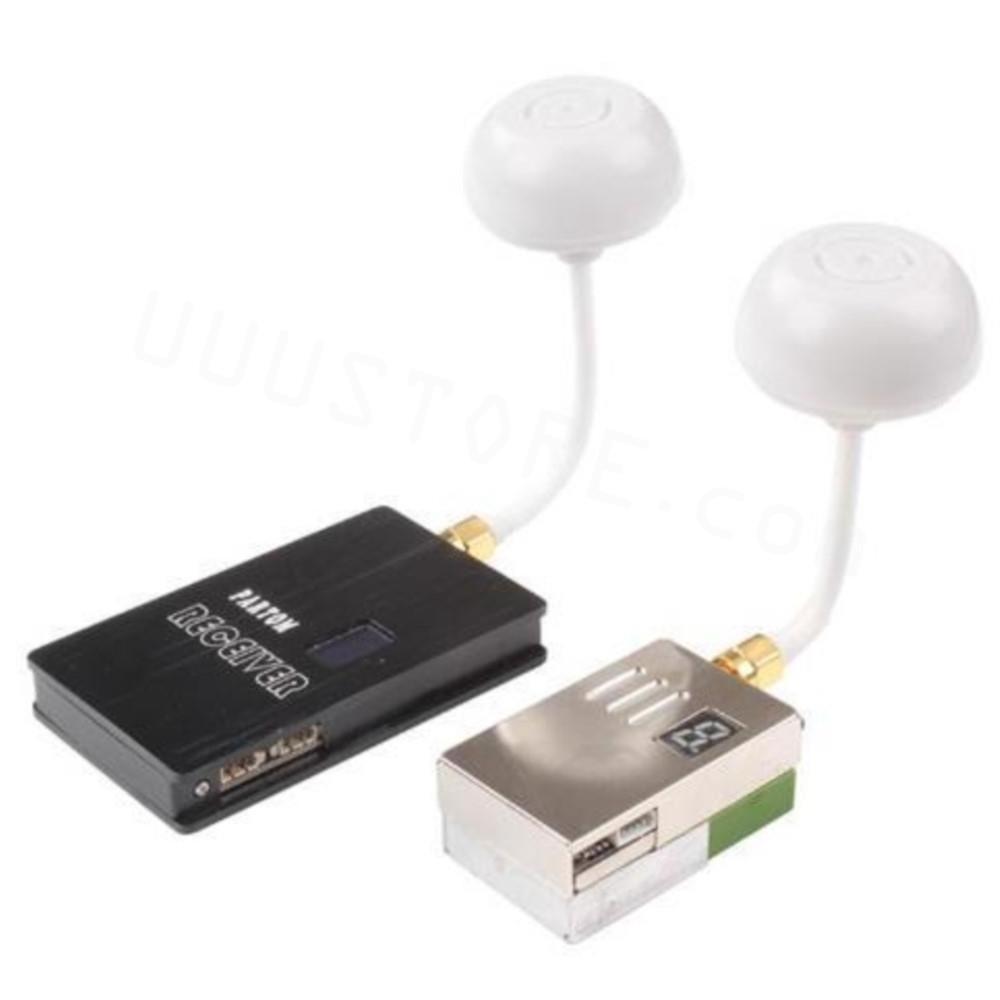

PARTOM 5.8G 600mW 9CH Wireless AV transmitter and receiver cctv monitor system transmitter and receiver
Description:
Kimpok wireless video transmitters make wireless video easy and inexpensive. Our Wireless video transmitters are the solution when it is difficult or impossible to run cables, you can place your cameras where you need them, without the concern of running video cable.
It\'s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
KP-FPV5806 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. the transmission range is about 800-1100m or so in the open area.
Features:
- Wireless transmission: no need to set up communications cable
- Image, audio sync, color black and white compatible
- Small size, light weight, easy to carry, good installation
- Responsive, timely, send and receive real-time transmission
- Using FM mode, anti-interference ability, good image quality
- Highly integrated, stable and reliable transmission distance
- DC power supply, easy to use.
- Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Specification:
|
Voltage |
DC 12V |
|
Current |
700mA |
|
Frequency |
5.8Ghz |
| Frequency Band | 5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz |
|
Number of channels |
9CHs |
|
Transmit Power |
600mW |
|
Video Output |
1 V p-p(FM) |
|
Audio Output |
1 V p-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance (Open environment) |
800m-1100m |
|
Overall Configuration |
Transmitter, receiver, AV cable, power supply, antenna |
|
Temperature |
-10°C ~ +50°C |
|
Transmitter Weight |
35g |
|
Receiver Weight |
67g |
| Whole Set Weight | 360g |
|
Dimensions (L * * H) |
Transmitter: 45.5*28.5*18mm. Receiver:72*43*11mm |
|
Box size (L * * H) |
245*160*65mm |
Installing:
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line\'s points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera\'s audio and video apart
And black one connects camera\'s power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver
