Quick Details
-
Brand Name:
-
UNIPOMPE
-
Model Number:
-
PS-01F
-
Max. Current:
-
30A
-
Max. Working Pressure:
-
10 bar
-
Adjustable pressure:
-
1.5-3.0bar
-
Rate voltage:
-
220V/110V
-
Frequency:
-
50/60Hz
-
Current:
-
30A
-
Starting pressure setting:
-
1.5 bar or 2.2bar
-
Protection rating:
-
IP65
-
connection:
-
G1'' male or G11/4'' male
-
Max operatin temperature:
-
60°C
-
Name:
-
water pressure switch
-
Certification:
-
CE or ROHS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
UNIPOMPE
-
Model Number:
-
PS-01F
-
Max. Current:
-
30A
-
Max. Working Pressure:
-
10 bar
-
Adjustable pressure:
-
1.5-3.0bar
-
Rate voltage:
-
220V/110V
-
Frequency:
-
50/60Hz
-
Current:
-
30A
-
Starting pressure setting:
-
1.5 bar or 2.2bar
-
Protection rating:
-
IP65
-
connection:
-
G1'' male or G11/4'' male
-
Max operatin temperature:
-
60°C
-
Name:
-
water pressure switch
-
Certification:
-
CE or ROHS

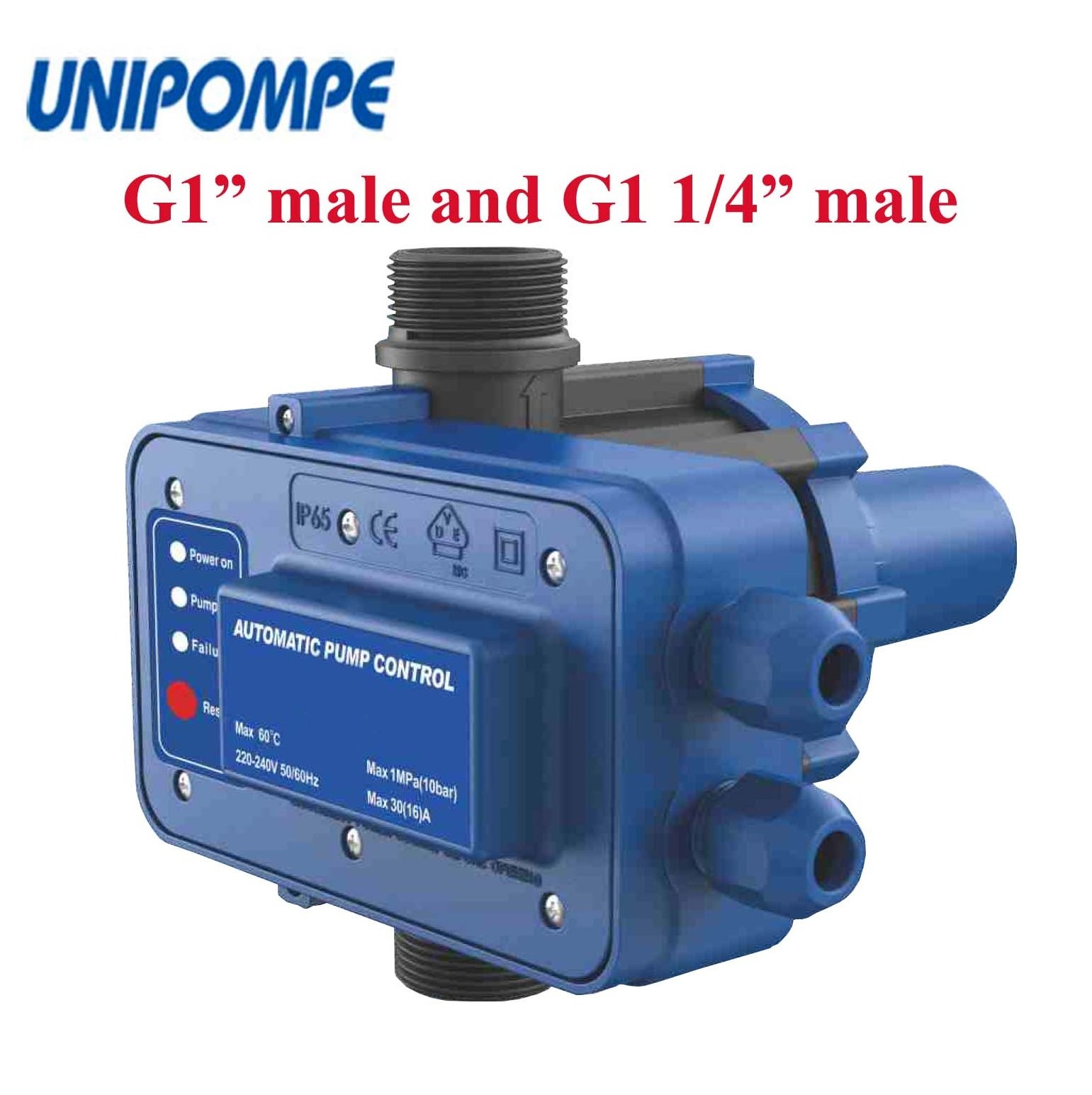

Hot sale 11/4'' connection water pressure switch pressure controller for pumps
1. Automatic pressure controller for water pumps
2. Start and stop water pump automatically
3. Stop the pump in the case of water shortage
4. After power cut off, restart the pump automatically when the power on
5. Forced start
6. Joint screw: G1'' male or G11/4''
7. CE and RoHs certificated
1. It has the features of stable performace, low maintenance and long life etc.
2. Completely replaced the complicated traditional pump control system composed of pressure gauge,pressure switch, T-valve, check valve and pressure tank.
3. Its starting flow is about 36-60L/h and is convenient for home application.
1.Rate voltage: 220V-240V/110V-120V
2.Frequency: 50HZ/60HZ
3.Max. Rated Current: 30A (16A)
4.Max allowable pressure:10 bar(1Mpa)
5.Max. power:1.1KW
6.Joint screw: G1'' male or G11/4''
7. Protection Garde: IP65
8.Starting Pressure : 1.5/2.2 bar
9.Max ambient temperature:60°C
| Starting Pressure | Max. rated current | Max. allowable pressure | Rated Voltage | Frequency |
| 1.5bar or 2.2bar | 30( 16)A | 10bar | 220V/3Hp, 110V/1.5Hp | 50/60Hz |
| Max. ambient temperature | Max. liquid temperature | Protection Degree | Joint screw | Adjust pressure range |
| 40 ℃ | 60℃ | IP65 | G1'' or G11/4'' | 1.5bar - 3.0bar |
1) Optional models and function:
- PS-01FA: Starting pressure setting is adjustable during installation, adjustment range: 1.5 ~ 3.0bar
- PS-01FM: Automatically restart after water shortage, the restart interval time is 1 minute, 30 minutes, 1 hour recycle The above 2 options function can be achieved at the same time, or you can choose just one.
2) Color
3) Joint screw: G1'' or G11/4''
4) Cable length
1. It will indicate the pump has started when the green light Power on lights up after connecting the power.
2. When the yellow light Pump on lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure.
3. If this lapse is insufficient, the red light failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure.
