Quick Details
-
Voltage:
-
380v/3ph/50hz
-
Dimension(L*W*H):
-
105*50*102CM/130*50*108CM/150*50*108CM etc.
-
Weight:
-
850KG-5300KG
-
Working Pressure:
-
200Bar, 250Bar
-
Air capacity:
-
85KG-1300KG
-
Product name:
-
LPG Air Compressor
-
Air outlet size:
-
G3/4"/G1"/G1 1/2"/DN65"/G2
-
Certification:
-
ISO/CE
-
Application:
-
All industries
-
OEM:
-
Avaliable
-
Feature:
-
High power/Long term employment
-
Color:
-
customizable
-
Keywords:
-
Air Compressor Screw
-
Keywords 2:
-
Industrial rotory Screw air Compressor
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SPARTA
-
Model Number:
-
S-S-10/8S
-
Voltage:
-
380v/3ph/50hz
-
Dimension(L*W*H):
-
105*50*102CM/130*50*108CM/150*50*108CM etc.
-
Weight:
-
850KG-5300KG
-
Working Pressure:
-
200Bar, 250Bar
-
Air capacity:
-
85KG-1300KG
-
Product name:
-
LPG Air Compressor
-
Air outlet size:
-
G3/4"/G1"/G1 1/2"/DN65"/G2
-
Certification:
-
ISO/CE
-
Application:
-
All industries
-
OEM:
-
Avaliable
-
Feature:
-
High power/Long term employment
-
Color:
-
customizable
-
Keywords:
-
Air Compressor Screw
-
Keywords 2:
-
Industrial rotory Screw air Compressor
-
After-sales Service Provided:
-
Online support

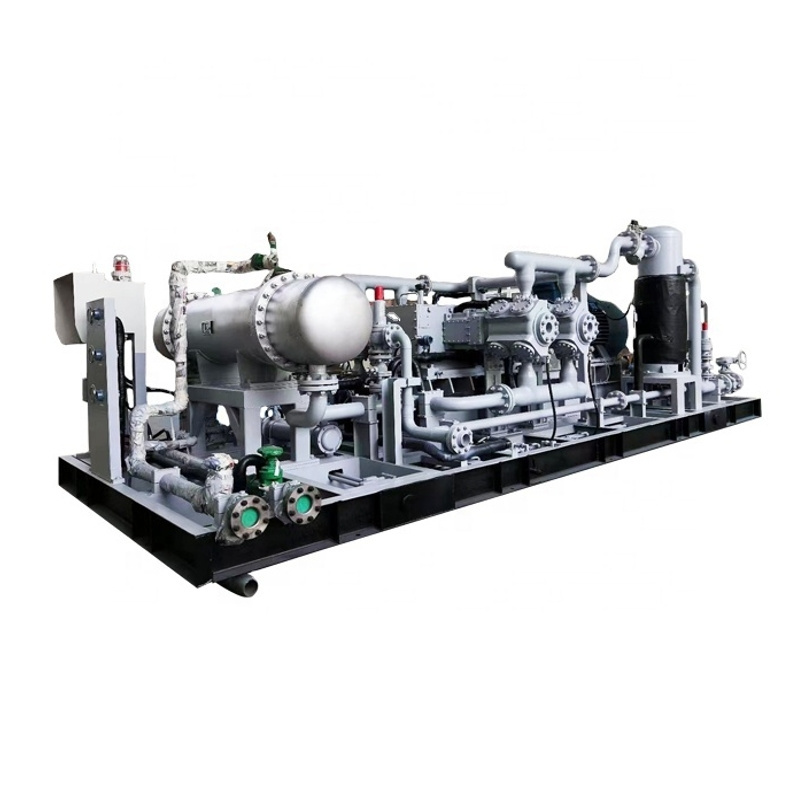

High Performance Industrial CNG PH3 Diaphragm Special Gas Compressor For Gas Filling Station
Large compressor types are divided into: symmetrical balance type, M type.
The middle body between the slideway and the cylinder can be designed with a long-shaped single-chamber, a short-shaped
single-chamber, an extended-shaped double-chamber, and a long-short dual-chamber structure according to user requirements; it
adopts a water-cooling system, and all levels are equipped with intake and exhaust buffers There are two sets of lubricating
systems. When the oil pressure is low, the auxiliary oil pump system automatically starts to run. All equipment is integrated on
the skid-mounted base, which has the characteristics of compact structure, good sealing performance, small starting torque, good
inertia force balance, small mechanical vibration, high reliability, easy maintenance, and long service life.
Lubrication method: 1. Without oil 2. With oil
Cooling method: 1. Water cooling 2. Air cooling 3. Mixed cooling (selected according to actual needs)
Overall structure: fixed, mobile, skid-mounted, soundproof cabin, etc. (selected according to actual needs)
The middle body between the slideway and the cylinder can be designed with a long-shaped single-chamber, a short-shaped
single-chamber, an extended-shaped double-chamber, and a long-short dual-chamber structure according to user requirements; it
adopts a water-cooling system, and all levels are equipped with intake and exhaust buffers There are two sets of lubricating
systems. When the oil pressure is low, the auxiliary oil pump system automatically starts to run. All equipment is integrated on
the skid-mounted base, which has the characteristics of compact structure, good sealing performance, small starting torque, good
inertia force balance, small mechanical vibration, high reliability, easy maintenance, and long service life.
Lubrication method: 1. Without oil 2. With oil
Cooling method: 1. Water cooling 2. Air cooling 3. Mixed cooling (selected according to actual needs)
Overall structure: fixed, mobile, skid-mounted, soundproof cabin, etc. (selected according to actual needs)
|
order number
|
performance parameter
|
|
|
Relevant instructions
|
||
|
1
|
Compressor model
|
|
|
Type M F-5.3/20-50
|
||
|
2
|
Compressor structure form
|
|
|
Symmetric equilibrium M-type reciprocating piston type
|
||
|
3
|
Compressed medium
|
|
|
natural gas
|
||
|
4
|
Nominal volume flow
|
|
|
5.3m3/min
|
||
|
5
|
volume flow
|
|
|
Maximum of 150000 Nm3/d
|
||
|
6
|
Inhale pressure
|
|
|
2.0MPa(G)
|
||
|
7
|
discharge pressure
|
|
|
5.0MPa(G)
|
||
|
8
|
suction temperature
|
|
|
≤40℃
|
||
|
9
|
Gas transmission temperature
|
|
|
Ambient temperature of + 15℃
|
||
|
10
|
Piston rod diameter
|
|
|
Φ 50mm
|
||
|
11
|
Compressor itinerary
|
|
|
105mm
|
||
|
12
|
Compressor speed
|
|
|
740r/min
|
||
|
13
|
Compressor shaft power
|
|
|
≤275kW
|
||
|
14
|
Equipped with power motor parameters
|
main motor
|
|
YB X 4-400-6 315kW 740r/min B3
Ex dⅡBT4 IP55 AC380V/50Hz |
||
|
|
|
Cooling fan
|
|
YBF2-100L-4 3.0kw X 2 IP55 380V/50Hz dⅡBT4
|
||
|
|
|
Oil pump motor
|
|
YBD-00-14 3kW 380V /50Hz
ExdⅡBT4 |
||
|
15
|
Detection and control mode
|
|
|
Transmitter detection and PLC control
|
||
|
16
|
Main motor starting mode
|
|
|
variable frequency starting
|
||
|
17
|
Alert shutdown protection
|
|
|
Low intake pressure, high final exhaust pressure, low oil
All levels of high exhaust temperature alarm shutdown protection |
||
|
18
|
cooling-down method
|
|
|
forced air cooling
|
||
|
19
|
Noise sound power level
|
|
|
≤119dB(A)
|
||
|
20
|
lubricating system
|
|
forced lubricgtion
|
Crankshaft, connecting rod, and crosshead
|
||
|
|
|
|
oil-free lubrication
|
Cylinder, filler
|
||
|
21
|
lubricating oil pressure
|
|
|
0.35～0.55 MPa
|
||
|
22
|
Lubricating oil type / GB12691
|
|
|
> 5℃: compressor oil L-DAB150
|
||
|
|
|
|
|
<5℃: compressor oil L-DAB100
|
||
|
23
|
Lubricating oil volume (airbody)
|
|
|
100L
|
||
|
24
|
Total oil consumption
|
|
|
200g/h
|
||
|
25
|
Lubricating oil temperature
|
|
|
≤70℃
|
||
|
26
|
driving mode
|
|
|
The coupling is straight
|
||
|
27
|
Installation form
|
|
|
Have a foundation
|
||
|
28
|
vibration severity
|
|
|
≤18.0
|
||
|
29
|
External dimensions of the unit (length, width and height)
|
|
|
6500×2500×2000（mm）
|
||
|
30
|
Total weight of the whole machine
|
|
|
～15t
|
||
|
31
|
|
|
|
|
||
|
|
After-sale Service
• Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
• Warranty: One year for the whole machine Genuine spare parts will be provided with best price.
• Over board engineer service is available.
• Warranty: One year for the whole machine Genuine spare parts will be provided with best price.
• Over board engineer service is available.
Special Customized Service
1) Full OEM
• Quantity: at least 5 pcs
• In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
• Quantity: no limit
• Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name
plate, as the name plate factory has the MOQ.
3) Logo OEM
• Quantity: no limit
• Only the logo will be changed to yours, and no extra fee will be charged.
• Quantity: at least 5 pcs
• In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
• Quantity: no limit
• Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name
plate, as the name plate factory has the MOQ.
3) Logo OEM
• Quantity: no limit
• Only the logo will be changed to yours, and no extra fee will be charged.
