Quick Details
-
Brand Name:
-
luckmed
-
Model Number:
-
LM-UC
-
Quality Certification:
-
ISO
-
Safety standard:
-
ISO
-
Product name:
-

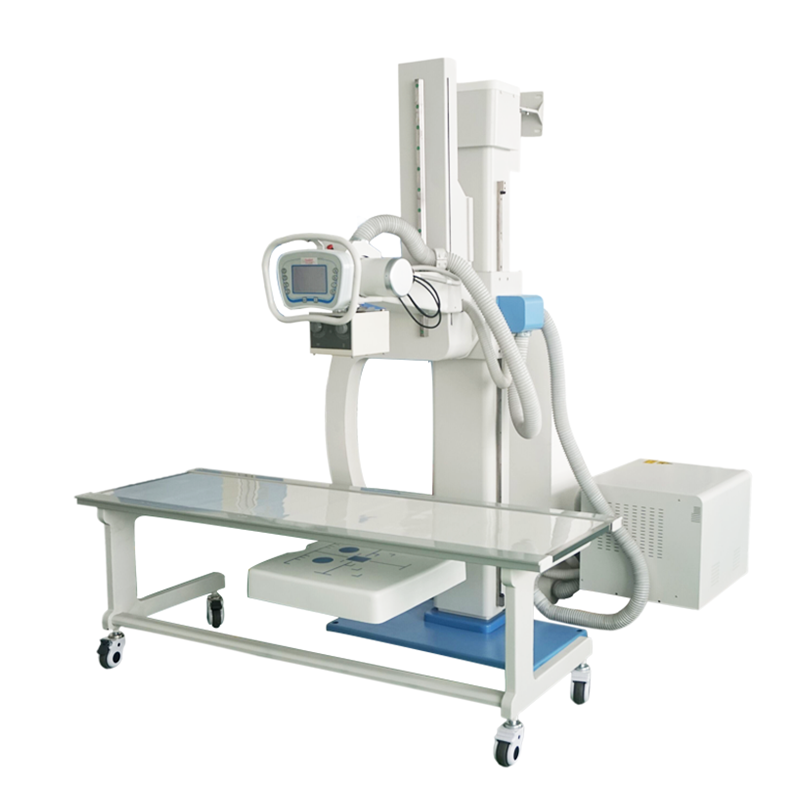

Medical X Ray Diagnostic Equipment-UC arm
-
Function:
-
Medical Diagnostic
-
Application:
-
X-ray Room
-
Color:
-
Whtie
-
Type:
-
UC arm
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
luckmed
-
Model Number:
-
LM-UC
-
Quality Certification:
-
ISO
-
Safety standard:
-
ISO
-
Product name:
-
Medical X Ray Diagnostic Equipment-UC arm
-
Function:
-
Medical Diagnostic
-
Application:
-
X-ray Room
-
Color:
-
Whtie
-
Type:
-
UC arm
Product Description
Advantages
-UC DR with smart outlook, high precise mechanical performance, widely check up body parts. It can automatically to adjust the flat
-panel detector height according to actual check up body part.
It can be matched with the different kinds of radiography tables freely.
-UC ARM with two functions about resetting and rotate protection. It can preset three positions into the machine, and press the three resetting key the system will move to the positions you preset. When the U arm is at a lower position, it can press the key to rotate it. It will not rotate. Then run up it to a higher position, it will work. This function is to protect the machine from topple and fall because of the UC arm touch the ground when it rotates.
-Super image chain to get perfect image. Special IT image workstation software realizes real time image collect, storage,
processing,
print and transfer etc function.
-Adopt a-SI flat panel detector, with stable performance and reduce x ray dose in greatly extent.
-panel detector height according to actual check up body part.
It can be matched with the different kinds of radiography tables freely.
-UC ARM with two functions about resetting and rotate protection. It can preset three positions into the machine, and press the three resetting key the system will move to the positions you preset. When the U arm is at a lower position, it can press the key to rotate it. It will not rotate. Then run up it to a higher position, it will work. This function is to protect the machine from topple and fall because of the UC arm touch the ground when it rotates.
-Super image chain to get perfect image. Special IT image workstation software realizes real time image collect, storage,
processing,
print and transfer etc function.
-Adopt a-SI flat panel detector, with stable performance and reduce x ray dose in greatly extent.
Specification
|
Item Name
|
Specification
|
|
Power Supply
|
Power supply: three phase 380V±10%；Power frequency: 50Hz±1Hz; I.R.: ≤0.2 Ω; Power capacity: ≥55KVA; Grounding
resistance: ≤2 Ω
|
|
X Ray HV Generator
|
Max output power 50kVA (tube voltage: 100kV; tube current: 500mA); Tube current adjustment range: 25mA~630mA, load
time adjustment range: 1.0m~6300ms, tube current time product adjustment range: 0.1mAs~6630mAs
|
|
X Ray Tube
|
20.40KW/125KV, bifocus 1.0/2.0, Anode Heat Capacity140KJ
|
|
Collimator
|
Manual,SID=100cm, light field of view brightness >160lux, Illumination ratio>4:1, light 24V/150W, field of view light time:30s;
multi shielding leaves
|
|
UC ARM
|
UC arm up and down stroke:1200mm±20mm; The lowest position of UC arm to ground: 480mm ± 20mm; UC arm
rotation:-30°~120°; Detector rotation：-45°~+45°; SID stroke：1000mm~1800mm
|
|
Flat Panel Detector
|
Detector technology: Amorphous Silicon; Scintillator: CSI; Active area: 17”×17”; Pixel pitch: 140μm; Limiting resolution:
3.6Lp/mm; Number of pixels: 3072x3072; AD conversion: 16 bit; Gray scale: 16384 gradation; Data interface: Gigabit
Ethernet; Full image acquisition time: Approx.3s after X-ray exposure
|
|
Image Workstation System
|
image collect, storage, processing, print and transfer etc function.
|
Packing & Delivery
1. FEDEX/ UPS/DHL/TNT FOR SAMPLES, DOOR TO DOOR
2.BY AIR OR BY SEA FOR BATCH GOODS, FOR FCL. AIRPORT/PORT RECEIVING
3. CUSTOMERS SPECIFYING FREIGHT FORWARDERS OR NEGOTIABLE SHIPPING METHODS
4.DELIVERY TIME: 3-7 DAYS FOR SAMPLES; 5-25 DAYS FOR BATCH GOODS
5. PAYMENT TERMS: TT/LC/PAYPAL/WESTUNION/MONEY GRAM
