Quick Details
-
Operating Model:
-
Automatic/Manual
-
Apply:
-
LED lamp beads
-
Applying:
-
liquid dispensing
-
Use:
-
medical equipment
-
Function:
-
glue dispensing
-
Keywords:
-
dispensing
-
Advantage:
-
Full auto
-
Machine:
-
Head Seal Pressure
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
zcx
-
Weight (KG):
-
55
-
Operating Model:
-
Automatic/Manual
-
Apply:
-
LED lamp beads
-
Applying:
-
liquid dispensing
-
Use:
-
medical equipment
-
Function:
-
glue dispensing
-
Keywords:
-
dispensing
-
Advantage:
-
Full auto
-
Machine:
-
Head Seal Pressure

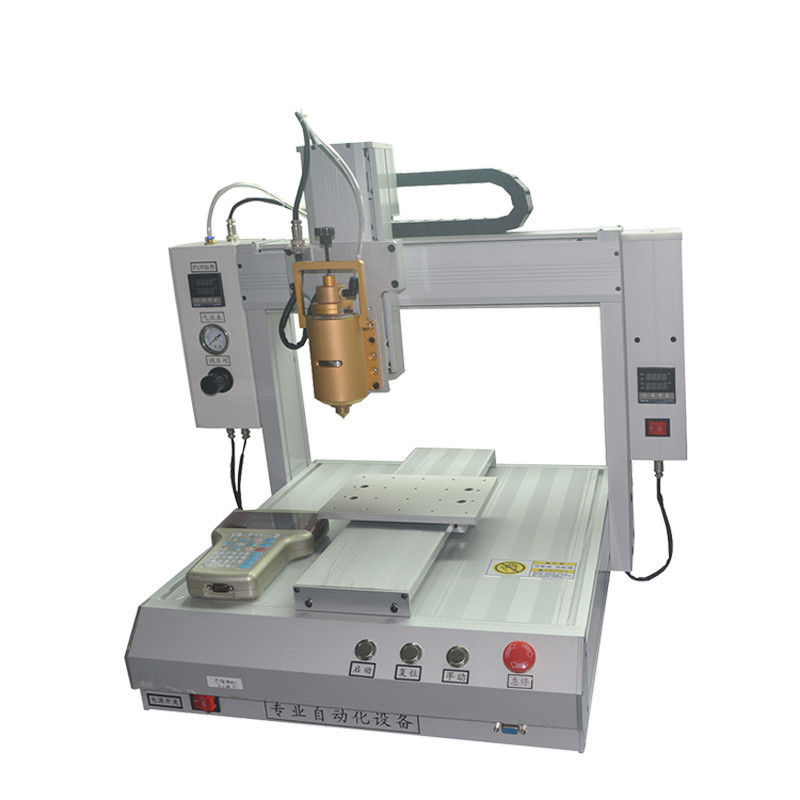

DJ331 Scrape Spraying Gluing Way Hot Melt Glue Machine With Gear Pump
Specification:
| Aluminum alloy gluing robot(single component) | ||||||||
| Model | DJ331 | DJ331R | DJ431 | DJ431R | DJ4331R | DJ5331R | DJ641 | |
| Axis range | X | 300mm | 300mm | 400mm | 400mm | 400mm | 500mm | 600mm |
| Y-1 | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm | 400mm | |
| Y-2 | 300mm | 300mm | ||||||
| Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | |
| R | 360° | 360° | 360° | 360° | ||||
|
Product dimension
(mm) |
L | 640 | 640 | 640 | 640 | 740 | 840 | 940 |
| W | 590 | 590 | 590 | 590 | 590 | 590 | 690 | |
| H | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| Drive Mode | Grinding line trial+ Stepping+ synchronous belt | |||||||
| Motor power | 350W | |||||||
| Control system | Four-axis control system | |||||||
| Repeating Precise | ±0.04mm | |||||||
| Path edit | hand-held program controller | |||||||
| Output speed | 5-100g/5s | |||||||
| Glue supply | Pneumatic | |||||||
| Air presure | 0.5~0.8mpa | |||||||
| File storage | 999 programs | |||||||
| Hot-melt glue | Available | |||||||
| Expansibility | Multiple expansibility in various industry process | |||||||
| Program | point,line,arc,circle,irregular figure and supporting 4 axis action | |||||||
| Working Environment | Temperature 0-40℃, humidity 20-90% | |||||||
| Power | 220/110V 50Hz (Please specify) | |||||||
| Body weight(kg) | 35 | 35 | 45 | 45 | 55 | 60 | 65 | |
Features:
1. Can replace manual operation by high precision programming of dots, strips, arcs and patterns on different planes or curved surface.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computer, PLT files, TCF files and G code files.
4. Suitable for glue: Anaerobics, Coatings, Cyanoacrylates,White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.
ZCX glue dispenser and automatic liquid dispensing machine
Product Application:
Widely used in lighting modules, display screens, soft and hard light strips, fluorescent lamps, wall washers, waterproof power supplies, resistors, capacitors and other products.
