Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hwatian
-
Model Number:
-
5T Tractor Winch with Diesel engine
-
Capacity:
-
5T
-
Pulling speed:
-
fast and slow
-
Drive:
-
belt driven
-
Rope type:
-
wire rope
-
Power supply:
-
15HP
-
Driven:
-
Diesel engine
Quick Details
-
Power:
-
15HP
-
Application:
-
Electric power construction
-
Voltage:
-
Other
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hwatian
-
Model Number:
-
5T Tractor Winch with Diesel engine
-
Capacity:
-
5T
-
Pulling speed:
-
fast and slow
-
Drive:
-
belt driven
-
Rope type:
-
wire rope
-
Power supply:
-
15HP
-
Driven:
-
Diesel engine
Product Description

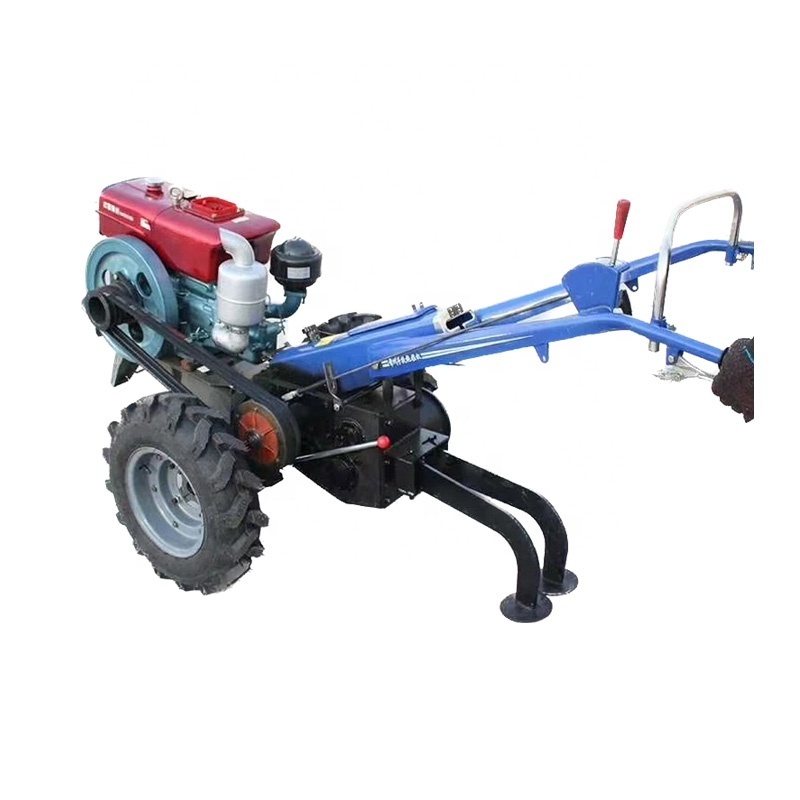

5T Double Drum Hand Walking Tractor Winch Hand tractor Winch Driven Diesel Engine
Cable Winch is a construction tool for setting upair high-voltage transmission lines and laying underground cables.
It can smoothly and conveniently set up iron frames, set up wires and others lifting and traction under various complex conditions.
Uses:
suitable for the construction of the tower line, tracion line, tight line operation, laying cable
Advantage:
1. compact dimensions
2. Stable tensile force
3. stable performance
4. simple control
5. easy maintenance
6. restructured from the model 12 hand tractor, widly used for pylon-conductor setting in power line construction
Product Spec
| Walking Tractor Winch | |||||||||||
| Model |
Rotational speed
(RPM) |
Gear | Tractive force(T) |
Traction Speed
(m/min) |
Ground Clearance
(mm) |
Wheel Distance
(mm) |
Travel speed
(km/h) |
Rotational speed(RPM) | Power |
Outline Size
(mm) |
Weight
(kg) |
| 5T Tractor Winch with Diesel engine | forwarder | slow I | 6.0 | 11.7 | 150 | 1040 | 3-13 | 2000 | 15HP | 2440x1300x1140 | 700 |
| slow II | 3.7 | 18.9 | |||||||||
| fast I | 2.0 | 34.4 | |||||||||
| fast II | 1.2 | 55.6 | |||||||||
| reversal | slow | No Lifting | 6.2 | ||||||||
| fast | No Lifting | 21.3 | |||||||||
Detail Images
FAQ
Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
7-25 working days after payment depend on your quanitty, some products have stocks
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
