Quick Details
-
Model Number:
-
Q11F-16P
-
Brand Name:
-
Xinhong
-
Model:
-
Q11F-16P
-
Certificate:
-
ISO9001:2008 , CE
-
Product name:
-

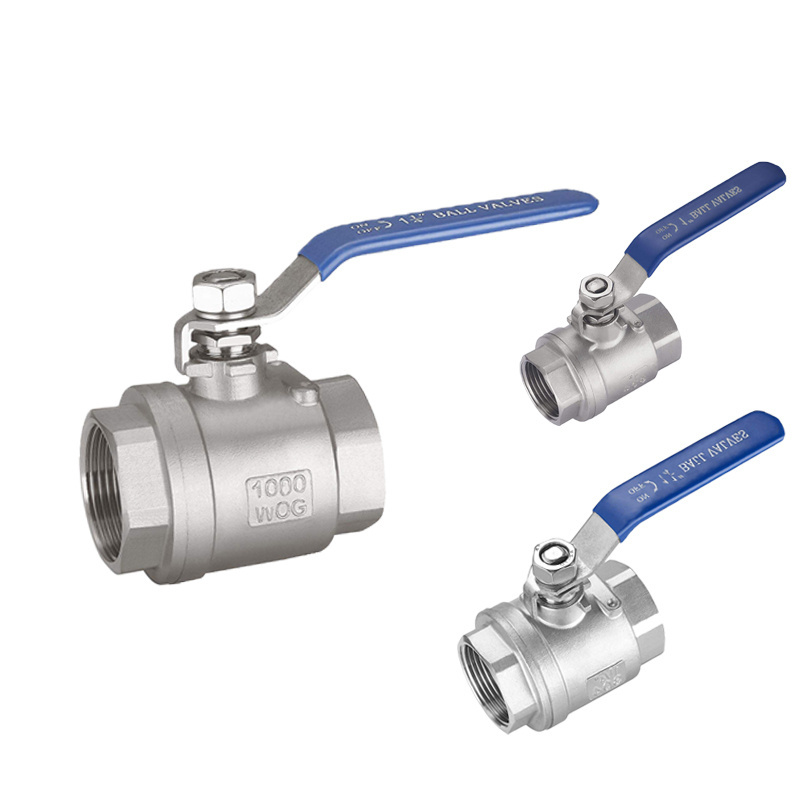

2PC ball valve
-
Working Pressure:
-
PN16
-
Body material:
-
stainless steel
-
Body:
-
304
-
Valve Body:
-
stainless steel
-
Medium:
-
Water, oil, gas, acidic liquid
-
Working Temperature:
-
-40 C~180 C
Quick Details
-
Port Size:
-
DN15-DN100
-
Warranty:
-
1 years, 12 Months
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Q11F-16P
-
Brand Name:
-
Xinhong
-
Model:
-
Q11F-16P
-
Certificate:
-
ISO9001:2008 , CE
-
Product name:
-
2PC ball valve
-
Working Pressure:
-
PN16
-
Body material:
-
stainless steel
-
Body:
-
304
-
Valve Body:
-
stainless steel
-
Medium:
-
Water, oil, gas, acidic liquid
-
Working Temperature:
-
-40 C~180 C
MATERIAL OF MAIN PARTS
|
BODY
|
CF8 CF8M
|
|
BONNET
|
CF8 CF8M
|
|
BALL
|
304 316
|
|
STEM
|
304 316
|
|
SEAT
|
PTFE
|
|
GASKET
|
PTFE
|
|
MIDDLE HEAD PAD
|
PTFE
|
|
PACKING SLEEVE
|
201 304
|
|
HANDLE
|
201 304
|
|
NUT
|
201 304
|
DIMENSIONS
|
DN
|
L
|
D
|
H
|
E
|
|
15
|
52.5
|
13
|
44
|
85
|
|
20
|
56
|
19
|
51
|
94
|
|
25
|
65
|
23
|
58
|
106
|
|
32
|
75
|
30
|
63
|
115
|
|
40
|
90
|
38
|
80
|
142
|
|
50
|
102
|
48
|
90
|
143
|
ENTERPRISE INTRODUCTION
Zhejiang Xinhong Valve&fitting CO.,LTD is a valve manufacture factory who owned 16 years experience of valve producing, selling and service. The company occupies a land area of 2, 000 square meters, has 120 staff .The company has a modern factory building, excellent machining equipment, boring machine, vertical lathe, CNC lathe, plasma spray welding, chemical composition analysis, mechanical performance testing, hardness testing, imported direct-reading spectrometer, non-destructive testing. Ensure that products conform to the relevant design and inspection standards, so that the quality level of products is continuously improved.
Xinhong valve products include gate valves, globe valves, ball valves, check valves, and so on. The main materials of the valve are stainless steel 201,304,316,316L. Product drive mode can be selected according to the actual conditions of users manual, gear drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other transmission methods; Valve specifications from DN 6 to DN 200; Working pressure from 1.0 to 6.0 Mpa and 150 LB; Working temperature -20 to 300 degrees Celsius . Products are widely used in petroleum, chemical, steel, pharmaceutical, environmental protection, mining, paper, urban construction, water supply and drainage and other industries, selling well throughout the country, and through foreign trade companies exported to Europe, the United States, Southeast Asia, the Middle East and other countries and regions, by the majority of users trust and praise.
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 100pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 12 months after leaving our factory.
