Quick Details
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
0 - 500 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
PREF
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
7200 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
2500*1700*1700
-
Year:
-
2022
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Guillotine shear
-
Brand name:
-
PREF
-
Model:
-
8*2500
-
Color:
-
Customised
-
Control system:
-
E21S
-
Function:
-
Cuting Sheet Metal
-
Quality standard:
-
German Standard
-
MOTOR:
-
Seimens
-
Electrical:
-
Schneider- Germany
-
Application:
-
Metal Sheet Cutting
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
8 mm
-
Shearing Angle:
-
90
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
0 - 500 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
PREF
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
7200 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
2500*1700*1700
-
Year:
-
2022
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Guillotine shear
-
Brand name:
-
PREF
-
Model:
-
8*2500
-
Color:
-
Customised
-
Control system:
-
E21S
-
Function:
-
Cuting Sheet Metal
-
Quality standard:
-
German Standard
-
MOTOR:
-
Seimens
-
Electrical:
-
Schneider- Germany
-
Application:
-
Metal Sheet Cutting
Products Description

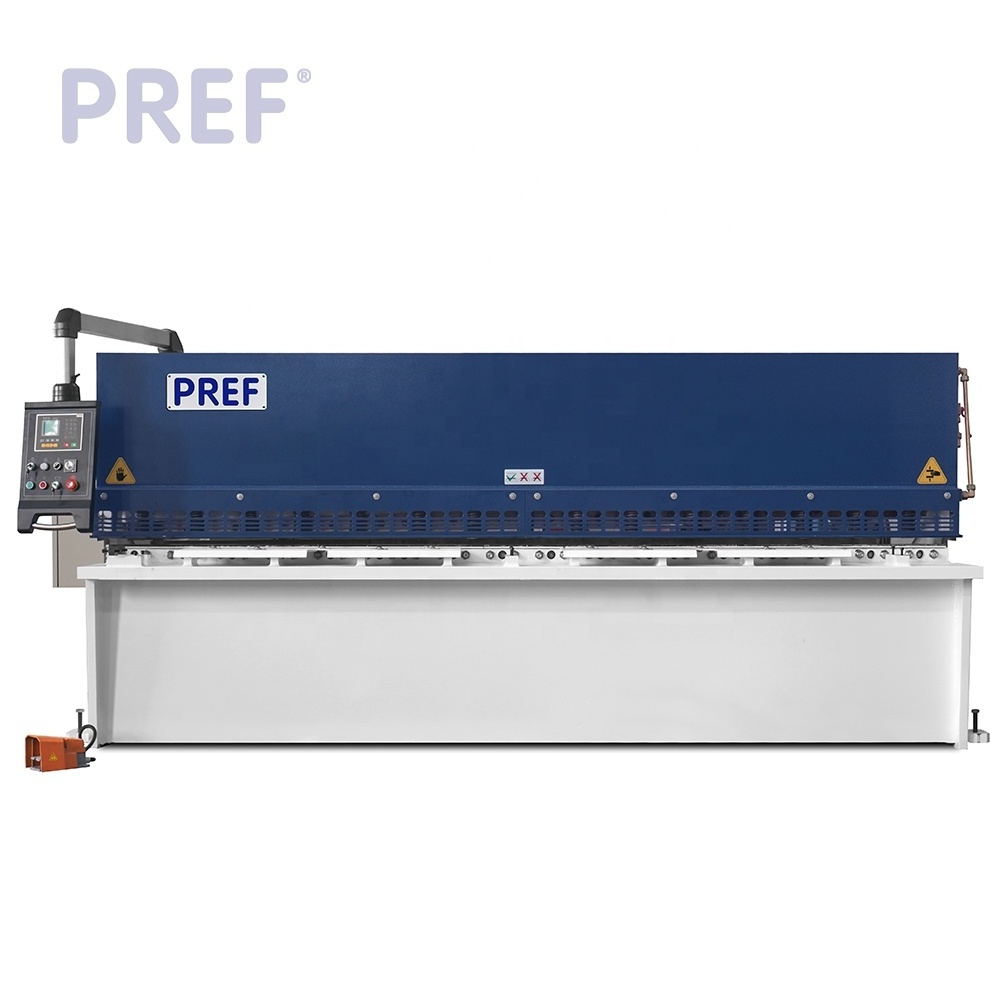

Swing beam
Shearing Machine
QC12K NC hydraulic swing beam shearing machine with E21S has an all-steel welded structure and comprehensive treatment (vibration ageing, heat treatment) to remove internal stresses, resulting in excellent rigidity and stability. Precision sliding guides are used to eliminate guide gaps, resulting in high shearing quality. The E21S system is easy to operate.
Standard Equipment
* Estun E21S NC control system
* Powered Back guage X-axis
* DELTA Inverter controlled back guage
* HIWIN Ball screws &Polished rod with 0,05mm accuracy
* Squaring Arm and Front Support Arms
* Germany Bosch-Rexroth Hydraulic
* Germany EMB Tubing connector
* Germany Siemens Main Motor
* Telemecanique Schneider Electrics
* Hydraulic &Electrical overload protection
* Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si).
* Powered Back guage X-axis
* DELTA Inverter controlled back guage
* HIWIN Ball screws &Polished rod with 0,05mm accuracy
* Squaring Arm and Front Support Arms
* Germany Bosch-Rexroth Hydraulic
* Germany EMB Tubing connector
* Germany Siemens Main Motor
* Telemecanique Schneider Electrics
* Hydraulic &Electrical overload protection
* Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si).
Safety Equipment
.
* Safety Standards(2006/42/EC)
1.EN 12622:2009+A1:2013
2.EN ISO 12100:2010
3.EN 60204-1:2006+A1:2009
* Front finger Protection(Safety light curtain)
* South Korea Kacon Foot Switch(Lever 4 of Safety)
* Back metal safe fence with CE standards
* Safety relay with Monitor the pedal switch &safety protection
1.EN 12622:2009+A1:2013
2.EN ISO 12100:2010
3.EN 60204-1:2006+A1:2009
* Front finger Protection(Safety light curtain)
* South Korea Kacon Foot Switch(Lever 4 of Safety)
* Back metal safe fence with CE standards
* Safety relay with Monitor the pedal switch &safety protection
Estun E21S NC control System
* Backgauge control
* Control for general AC motors, frequency inverter
* Intelligent positioning
* Double programmable digital output
* Stock counter
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English
* Control for general AC motors, frequency inverter
* Intelligent positioning
* Double programmable digital output
* Stock counter
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English
Details Images
|
Main Configuration
|
|
|
|
|||
|
NM
|
ITEM
|
QUANTITY
|
REMARK
|
|||
|
1
|
Control System
|
1set
|
E21S ESTUN
|
|||
|
2
|
Hydraulic system
|
1set
|
Bosch Rexroth-Germany
|
|||
|
3
|
Oil pump
|
1set
|
SUNNY-USA
|
|||
|
4
|
hydraulic valve
|
1set
|
REXROTH-Germany
|
|||
|
5
|
ball screw &Linear Guides
|
1set
|
HIWIN-Taiwan
|
|||
|
6
|
Backgauge
|
1set
|
HIWIN-Taiwan
|
|||
|
7
|
Main electrical components
|
1set
|
SCHNEIDER-Germany
|
|||
|
8
|
sealing ring
|
1set
|
NOK-Japan/PARKER-America
|
|||
|
9
|
Hose connector
|
1set
|
EMB-Germany
|
|||
|
10
|
Pedal switch
|
1set
|
KACON-South korea
|
|||
Optional
