Quick Details
-
Engine Brand:
-
CHANGCHAI or euro 5 or EPA engine
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
HIGHTOP
-
Exciting Force:
-
35
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Road Roller
-
working weight(kg):
-
860KG
-
Vibration force(kN):
-
35
-
amplitude(mm):
-
0.6
-
Walking speed(km/h):
-
0-6
-
Gradeability(%):
-
30
-
vibration frequency(Hz):
-
70
-
Dimensions(mm):
-
860*1960*2160
-
engine power(HP):
-
8hp
-
Static line load(N/cm):
-
55
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
4kw, 6kw
-
Weight:
-
860
-
Engine Brand:
-
CHANGCHAI or euro 5 or EPA engine
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
HIGHTOP
-
Exciting Force:
-
35
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Road Roller
-
working weight(kg):
-
860KG
-
Vibration force(kN):
-
35
-
amplitude(mm):
-
0.6
-
Walking speed(km/h):
-
0-6
-
Gradeability(%):
-
30
-
vibration frequency(Hz):
-
70
-
Dimensions(mm):
-
860*1960*2160
-
engine power(HP):
-
8hp
-
Static line load(N/cm):
-
55
single wheel road roller / Walking double wheel roller compactor / riding roller
The certificate our company have:
MS Cassie Wang
24-HOUR ONLINE SERVICE:
whats app /we chat/phone number:+ 86 15263720091
specification of single wheel road roller / Walking double wheel roller compactor / riding roller/ compactor /vibratory roller:
| Model | HT-600C single wheel | HT-S600 Walking double wheel | HT-08 riding roller |
| working weight(kg) | 420 | 650 | 860 |
| Vibration force(kN) | 25 | 30 | 35 |
| amplitude(mm) | 0.6 | 0.6 | 0.6 |
| Walking speed(km/h) | 0-4 | 0-4 | 0-6 |
| Gradeability(%) | 30 | 30 | 30 |
| vibration frequency(Hz) | 70 | 70 | 70 |
| Dimensions(mm) | 700*880(1650)*1060(1250) | 750*800(2340)*1090 | 860*1960*2160 |
| Package dimensions(mm) | 700*880*1060(1550) | 750*800(840)*1090(1620) | 860*1960*1325 |
| Drum size(mm) | Φ430*600*1(T7.6) | Φ430*600*2(T7.6) |
forwardΦ560*700(T10)
backΦ430*500/can do 430*700 |
| engine model | Changchai173F/changfa 170/Honda gasoline160 | Changchai 178F/changfa 178/ water coll R180/Honda gasoline270 | Changchai178F/changfa 178/water cool R180 |
| engine power(HP) | 6(4kw) |
8
(R180:5.67kw)(178F:4kw) |
8
(R180:5.67kw)(178F:4kw) |
| Static line load(N/cm) | 45 | 54 | 55 |
| drive mode | Hydraulic drive | Dual drive hydraulic rotation | single drive mechanical rotation |
| Vibration method | mechanical vibration | mechanical vibration | Electromagnetic clutch |
| way of walking | two-way hydraulic | two-way hydraulic | Two-way hydraulic single vibration |
| Start method | Manual/Electric Start | Manual/Electric Start | Manual/Electric Start |
| Tank volume(L) | 20 | 20 | 30 |
| Hydraulic tank volume(L) | 20 | 20 | 6 |

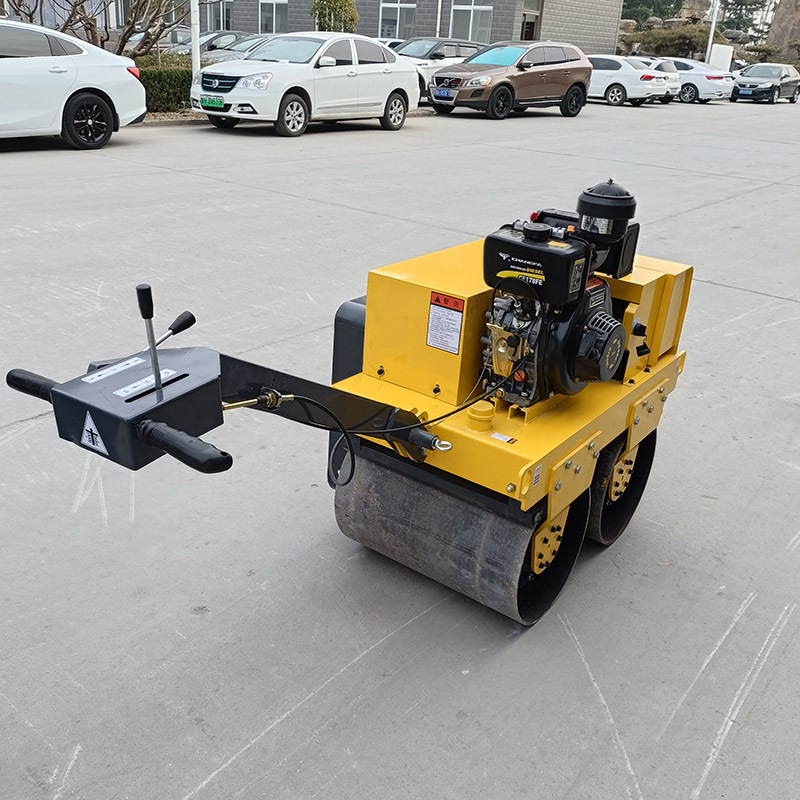

photos of single wheel road roller / Walking double wheel roller compactor / riding roller :
