Quick Details
-
Power:
-
380v/60A/3 phase Customized
-
Table Size:
-
2880x1100
-
Weight:
-
3000 kg
-
Product name:
-
scissor lifting platform
-
Keywords:
-
Mobile Scissor Platform Lift
-
Type:
-
Hydraulic Cylinder Drive
-
Application:
-
Widely
-
Control:
-
Control Panel + Remote Controller
-
Load capacity:
-
100-500kg
-
Color:
-
Customized Color Acceptable
-
Material:
-
High Strength Steel
-
Usage:
-
Higher Level
-
Name:
-
Lifting Equipment Electric Scissor Lift
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOCRANE
-
Power:
-
380v/60A/3 phase Customized
-
Table Size:
-
2880x1100
-
Weight:
-
3000 kg
-
Product name:
-
scissor lifting platform
-
Keywords:
-
Mobile Scissor Platform Lift
-
Type:
-
Hydraulic Cylinder Drive
-
Application:
-
Widely
-
Control:
-
Control Panel + Remote Controller
-
Load capacity:
-
100-500kg
-
Color:
-
Customized Color Acceptable
-
Material:
-
High Strength Steel
-
Usage:
-
Higher Level
-
Name:
-
Lifting Equipment Electric Scissor Lift

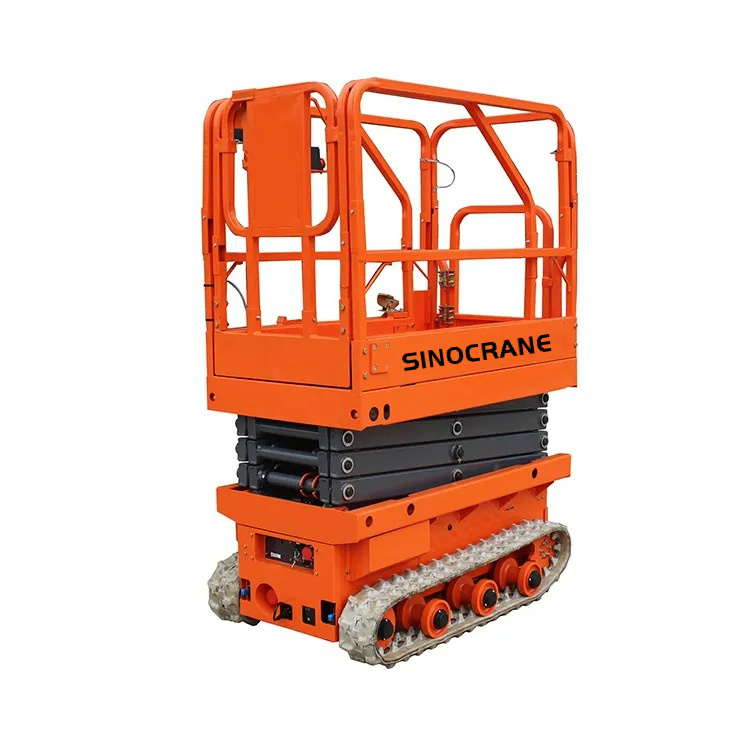

Self propelled crawler scissor l ifting platform has the function of automatic walking. Only one person can operate the machine to continuously complete the actions of lif t ing, forward, backward and steering when working at hei g ht. The product has the characteristics of beautiful appearance, flexible movement, simple operation, large bearing capacity, stable lif t ing, safety and reliability .
Crawler scissor lift ing table is suitable for soft road, pothole unequal road environment is harsh , Due to the track plate has a pattern and can be installed with spurs, it can firmly grasp the ground on rain, snow, ice or uphill and will not slip.
Features
Crawler Scissor Lifts doesn't need any outriggers, one man operates on the working platform.Sort chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition, and high working efficiency . The pedal extension platform can be quickly spread to the operating point.The fordable fence reduces the volume of the whole machine.
35 % climbing ability, can climb up the slope smoothly.Drawer-type chassis is easy to maintain. The fault code is automatically displayed for easy maintenance.
|
P roject |
U nit |
E ssential parameter |
E ssential parameter |
E ssential parameter |
E ssential parameter |
||||
|
Safe working load |
Kg |
320 |
450 |
320 |
450 |
320 |
450 |
320 |
450 |
|
Extended platform safe working load |
kg | 113 | 113 | 113 | 113 | ||||
|
Maximum working height (H2) |
m | 8 | 10 | 12 | 14 | ||||
|
Maximum platform height |
m | 6 | 8 | 10 | 12 | ||||
|
Overall length |
mm | 2470 | 2600 | 2470 | 2600 | 2470 | 2600 | 2470 | 2600 |
|
Overall width |
mm | 1390 | 1580 | 1390 | 1580 | 1390 | 1580 | 1390 | 1580 |
|
Overall height (fence not folded) |
mm | 2280 | 2330 | 2400 | 2470 | 2530 | 2580 | 2670 | 2750 |
|
Overall height(fence folding) |
mm | 1745 | 1780 | 1865 | 1940 | 1995 | 2050 | 2100 | 2130 |
|
Working platform size |
mm |
2270x111 0x 700 |
2270x111 0x 700 |
2270x111 0x 700 |
2270x111 0x 700 | ||||
|
Platform extension size |
mm | 900 | 900 | 900 | 900 | ||||
|
Lift motor pump |
Kw | 48/4.0 | 48/4.0 | 48/4.0 | 48/4.0 | ||||
|
Machine traveling speed(Folded state) |
Km/h | 3.5 | 3.5 | 3.5 | 3.5 | ||||
|
Machine traveling speed(Lifting state) |
Km/h | 0.8 | 0.8 | 0.8 | 0.8 | ||||
|
Up-down speed |
sec | 28/38 | 28/38 | 28/38 | 28/38 | ||||
|
S torage battery |
V/Ah | 8x6V/200 | 8x6V/200 | 8x6V/200 | 8x6V/200 | ||||
|
C harger |
V/A | 48/35 | 48/35 | 48/35 |
48/35 |
||||
|
Maximum gradeability |
% | 25 | 25 | 25 | 25 | ||||
|
Maximum allowable a ngle of work |
° | 1.5 ° - 3 ° | 1.5 ° - 3 ° | 1.5 ° - 3 ° | 1.5 ° - 3 ° | ||||
|
Machine weight approx |
Kg | 2400 | 2550 | 2550 | 2700 | 2850 | 3000 | 3450 | 3600 |
1. When the lifting equipment is in use, the work surface should be kept level.
2.
When working outdoors and in harsh environments, the user should tie a safety rope.
3. During the lifting and lowering process of the machine, it is strictly forbidden for people to climb and unrelated personnel to approach it.
4. The hydraulic oil used should be kept clean, not mixed with water and other impurities, and generally replaced every six months.
5. Only after supporting the safety brace, can you repair and clean the machine.
6. Electrical appliances and hydraulic systems should be maintained by professionals.
Henan SINOCRANE GLOBAL Service always with "careful design, careful construction, do first-class project, create first-class brand. Abide by the service commitment, excellent construction management team and construction technology, and contribute excellent projects to the society . To provide customers with satisfactory products and services
Design and Construction Rules
All the standards which are required for the platform are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
-- 89/392/EEC standard (93/68/EEC)
-- 91/368/EEC standard
-- 73/23/CEE standard
-- "EMC" standard 89/336/EEC
-- EN 60204-1
-- EN 292 mechanical safety
-- ISO 2141
-- ISO 2766
International Standards
-- June 9, 1993 / Sept. 22, 1993 notice
-- July 29, 1992, 92-765, 92-766, 92-767 notice
-- DIN 5684
-- DIN 15400; DIN 15401
-- NFE 26-010
-- NFE 26-030
China Main National Standards
Design rules for platform GB/T 3811-2008
Safety rules for lifting appliances GB 6067-2010
Common platform technical condition GB 7592-87
