Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHL
-
Model Number:
-
type DA
-
Material:
-
Aluminium
-
Standard or Nonstandard:
-
Standard
-
Structure:
-
Universal
-
Flexible or Rigid:
-
Rigid
-
size:
-
2'' 3'' 4''
-
type:
-
female coupler with male adapter
-
Temperature:
-
-20-220 degree
-
pressure:
-
0-2Mpa
-
surface treatment:
-
sand blast ,grind ,oxidation
-
sirculation medium:
-
water ,oil,liquefied gas and so on
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHL
-
Model Number:
-
type DA
-
Material:
-
Aluminium
-
Standard or Nonstandard:
-
Standard
-
Structure:
-
Universal
-
Flexible or Rigid:
-
Rigid
-
size:
-
2'' 3'' 4''
-
type:
-
female coupler with male adapter
-
Temperature:
-
-20-220 degree
-
pressure:
-
0-2Mpa
-
surface treatment:
-
sand blast ,grind ,oxidation
-
sirculation medium:
-
water ,oil,liquefied gas and so on

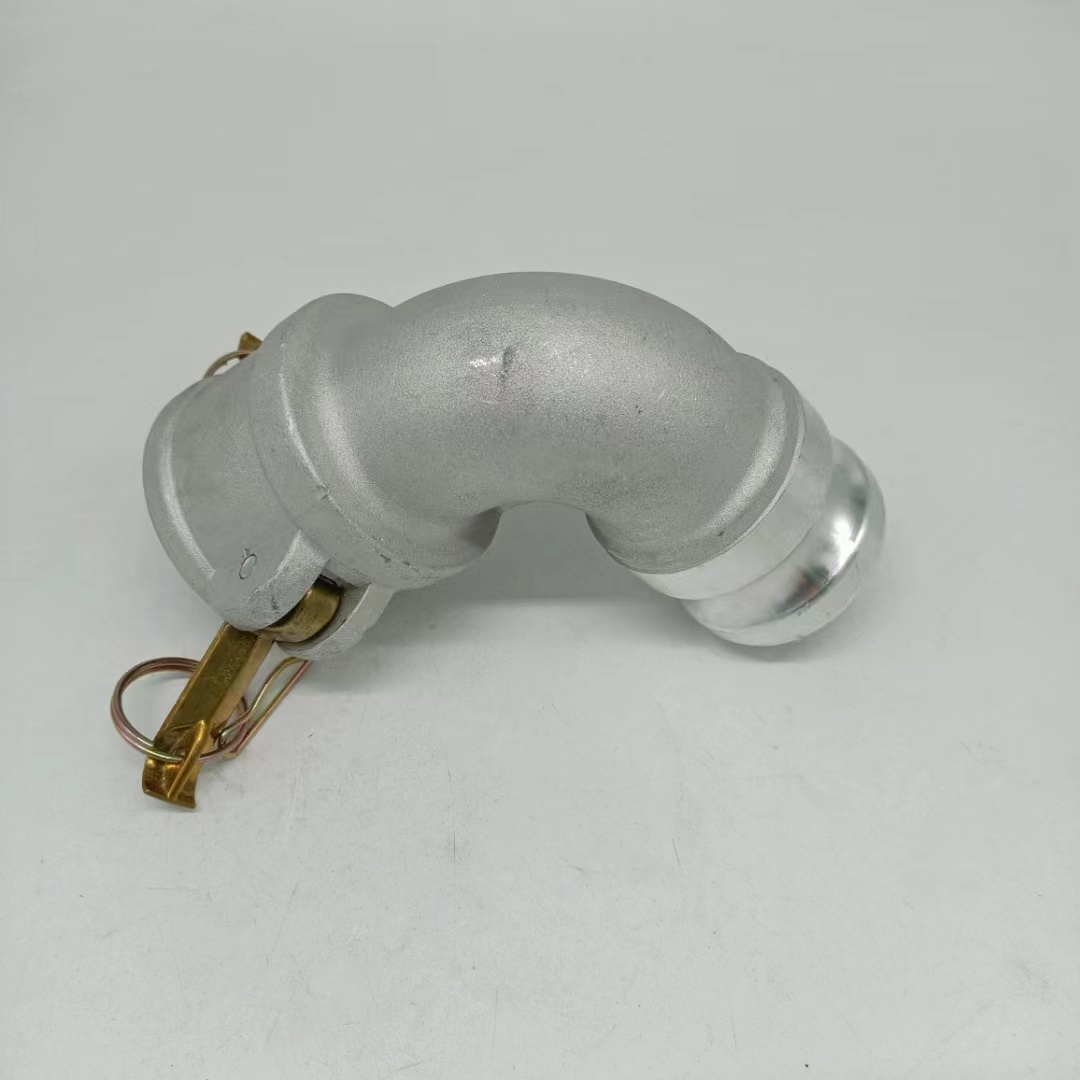

Pipe fitting camlock quick coupling type C 90 degree
90 degree elbow fittings
aluminum camlock 90 degree
90degree or 45degree camlock
camlock 90 degree elbow
|
Standard |
Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828. |
|
Material |
Aluminium,Stainless steel,Brass,PP,Nylon |
|
Sizes |
from 2" to 4" |
|
Types |
DA90 degree,DA45degree |
|
Cam levers |
We use stainless steel cam levers or brass cam levers. |
|
Pins, Rings and Safety clips |
We use steel plated Pins,Rings and Safety clips. |
|
Sealings |
NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request. |
|
Threads |
NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT) |
|
Surface treatment
|
Grind,Oidation,Sand blast
|
|
Casting method
|
Gravity casting
|
| Delivery | 15-30days (according to quantity) |
| Other |
1.We are factory,best price will be offer 2.Free sample available 3.factory visit welcome |
