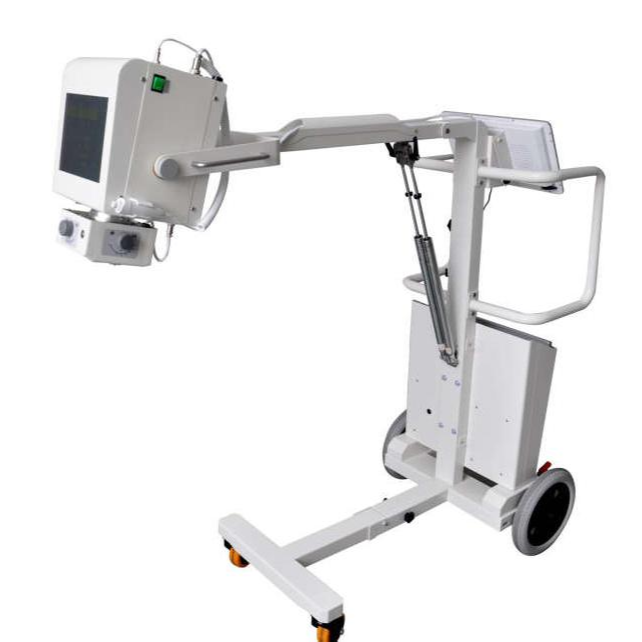

Digital radiography System(DR) is one of the most important diagnosis imaging equipment.By taking chest radiography of patients with fever,using image diagnosis to find suspected patient.Image diagnosis is the most important diagnostic method for clinical diagnosis and treatment.
|
Main Component Technical Spe.
|
20kw 200mA
|
50kw 500mA
|
||
|
X-ray Generator
|
Output Power
|
5kW
|
||
|
Power Voltage
|
Power Voltage
|
220V±22V
|
||
|
tube current
|
kV range
|
20~100mA
|
||
|
Output Voltage
|
mA range
|
0.2~200mAs
|
||
|
resistance power
|
Exposure time
|
0.01~4S
|
||
|
X-ray Tube
|
Anode heat storage
|
50kW
|
||
|
Exposure Time
|
Focus
|
1.8mm
|
||
|
Collimator
|
Inherent filtration
|
1.0mm Al /75kV
|
||
|
Anode speed
|
Light Source
|
LED
|
||
|
Wire Flat Panel Detector
|
Scintillator
|
CSI
|
||
|
Focus
|
Pixel Matrix
|
3328*3328
|
||
|
L*W*H of bed surface
|
Pixel Pitch
|
127um
|
||
|
Horizontal moving range
|
A/D Conversion
|
14bit
|
||
|
All-in-one PC
|
Dimension
|
15.6inch
|
||
|
grid density
|
Memory
|
8G
|
||
|
grid ratio
|
Disk Capacity
|
512G
|
||
|
Focus Distance
|
Resolution
|
1920*1080
|
||
|
Mobile Machine Frame
|
Net Weight
|
70KGS
|
||
|
Mobile Machine Frame
|
Max.Height
|
200cm
|
||
|
|
Width
|
66cm
|
||
|
|
SID
|
50~200cm
|
||
* Exposure by hand switch
