Quick Details
-
Warranty:
-
1YEAR
-
Brand Name:
-
ZH
-
Model Number:
-
ZB3A-12
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1.5KW
-
Outlet Size:
-
25mm
-
Power:
-
1.5kw
-
motor:
-
ABB or Domestic
-
Product name:
-
stainless steel rotor pump
-
MOQ:
-
1 piece lobe pump
-
Connection:
-
Clamp, Thread, Welded, Flange
-
Motor Power:
-
0.55KW-22KW
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Material:
-
304 or 316L
-
Packing:
-
plywood or customerized
-
Delivery details:
-
Usually within 10 days after payment
-
Motor:
-
ABB/domestic
-
Certification:
-
CE, ISO
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
4bar
-
Voltage:
-
380V,3 Phases,50 Hz or other
-
Warranty:
-
1YEAR
-
Brand Name:
-
ZH
-
Model Number:
-
ZB3A-12
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1.5KW
-
Outlet Size:
-
25mm
-
Power:
-
1.5kw
-
motor:
-
ABB or Domestic
-
Product name:
-
stainless steel rotor pump
-
MOQ:
-
1 piece lobe pump
-
Connection:
-
Clamp, Thread, Welded, Flange
-
Motor Power:
-
0.55KW-22KW
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Material:
-
304 or 316L
-
Packing:
-
plywood or customerized
-
Delivery details:
-
Usually within 10 days after payment
-
Motor:
-
ABB/domestic
-
Certification:
-
CE, ISO

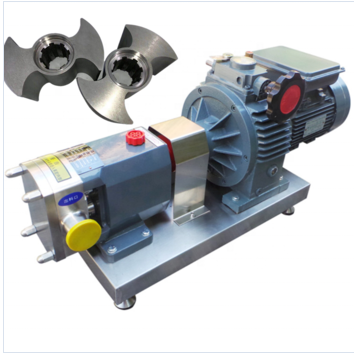

Rotor pump is also named rotary lobe pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and resvoIve in the sequence of a→b→c→d. When it revolves to position a, only housing I is filed with medium; when it revolves to position b, housing B encloses part of the medium, when it goes to position C, housing A encloses medium, and finally it goes to position d, then housing A, B and ll are interlinked and the medium is transported to the outlet. As this process is repeated, medium(material)is transported continuously.
Q: How long have you worked in this field?
A: Over 15 years.
Q:What's the delivery time?
A: Standard products will be 10-15 days after receive your down payment or full payment.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
Q: Are you manufacturer or trading company ?
A: We are a professional manufacturer.
Q: What is your factory's biggest advantage?
A: Technology is our core competitiveness.
