50W FM Broadcast Transmitter for Radio Station Radio Professional Long Range

50W FM Broadcast Transmitter for Radio Station Radio Professional Long Range

FOB Reference Price: Get Latest Price

≥1 Sets

US $596

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Frequency Range:: 87.5MHz~108 MHz

Frequency Setting step:: 10KHz

Carrier Frequency precision:: ±200Hz

Residual Wave Radiation:: ≥65dBc

Audio Input Impedance:: 600Ω,Balance

Separation:: 60dB Pilot Signal Modulation:8%~10%

Audio Input Level:: ±10dBm,step 0.01dB

S/N:: 75dB(30H~15kHz,100%)

Audio Harmonic Distortion:: <0.05%

Audio response:: ±0.05dB(30Hz~15KHz)

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: YXHT

Model Number:: 50W FM Transmitter

Frequency Range:: 87.5MHz~108 MHz

Frequency Setting step:: 10KHz

Carrier Frequency precision:: ±200Hz

Residual Wave Radiation:: ≥65dBc

Audio Input Impedance:: 600Ω,Balance

Separation:: 60dB Pilot Signal Modulation:8%~10%

Audio Input Level:: ±10dBm,step 0.01dB

S/N:: 75dB(30H~15kHz,100%)

Audio Harmonic Distortion:: <0.05%

Audio response:: ±0.05dB(30Hz~15KHz)

50W FM Broadcast Transmitter Kits

Details Images

Warranty：The warranty of all transmitters in our factory is 6 years.

1. Frequency Range:	87.5MHz~108 MHz
2. Frequency Setting step:	10KHz
3. Carrier Frequency precision:	±200Hz
4. Residual Wave Radiation:	≥65dBc
5. Audio Input Impedance:	600Ω,Balance
6. Separation:	60dB Pilot Signal Modulation:8%~10%
7. Audio Input Level:	±10dBm,step 0.01dB
8. S/N:	≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion:	<0.05%
10. Audio response:	±0.05dB(30Hz~15KHz)
11. Output Load Impedance:	50Ω
12. Output Power:	50W
13. Pre-emphasis:	0μS,50μS,75μS
14. Deviation:	±75kHz
15. Pilot Frequency:	19 kHz±1Hz
16. Sub-carrier Suppression:	≥65dB
17.RF Output Connector:	7/16'(female)or7/8'Flange
18.Size:	460mm480mm88mm
19.Weight:	7KG
20.Pilot Signal Modulation:	8%~10%

Product Description

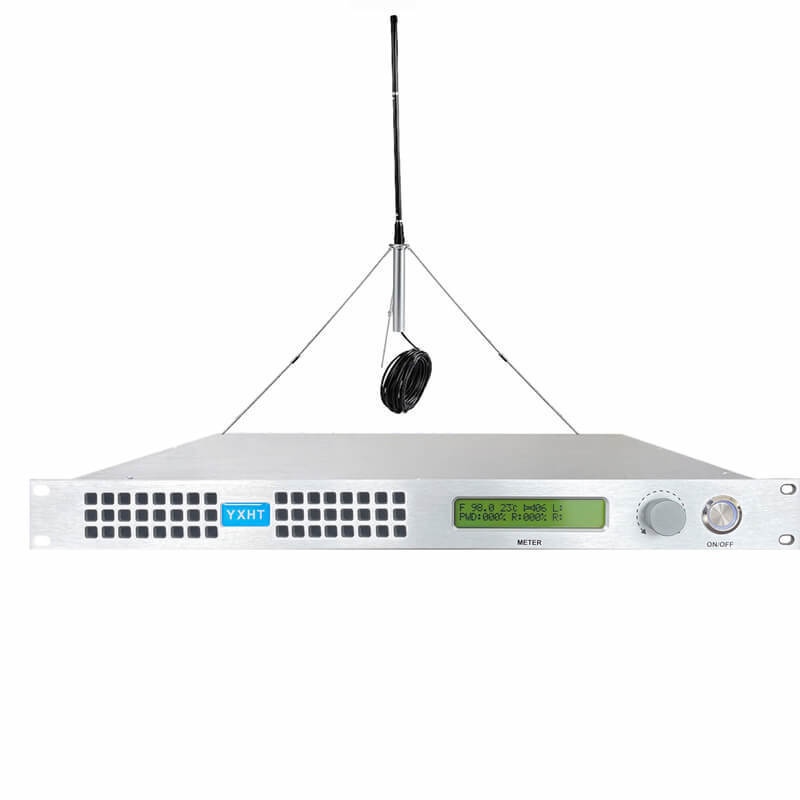

50W FM Broadcast Transmitter

· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-50C transmitters.Also it is low cost and small size.

Features:

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

Warranty: 6 years for all transmitters in our factory.

OUTSTANDING FEATURES:

1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.

2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.

3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.

4) ADJUSTABLE POWER OUTPUT The RF out of this 50w FM transmitter is continuously adjustable from 0-50 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
