Plastic Metal Scrap garbage compressor compactor Hydraulic baler machine

Plastic Metal Scrap garbage compressor compactor Hydraulic baler machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

≥10 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HW

Weight:: 1000 KG

Dimension(L*W*H):: 1000*750*2750MM

Name:: Plastic Metal Scrap garbage compress Hydraulic baler machine

Force:: 10-150T

Bale size:: 800*600 mm

Bale weight:: 30-1550 KG

Efficiency:: 4-6 bale/hour

Machine weight:: 1000-5100KGS

Machine Size:: 1000*750*2750mm

Color:: can be customized

Price:: Factory price

Quick Details

Voltage:: 220V/380V

Power:: 4.0kw, 2.2-25kw

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 1000 KG

Dimension(L*W*H):: 1000*750*2750MM

Name:: Plastic Metal Scrap garbage compress Hydraulic baler machine

Force:: 10-150T

Bale size:: 800*600 mm

Bale weight:: 30-1550 KG

Efficiency:: 4-6 bale/hour

Machine weight:: 1000-5100KGS

Machine Size:: 1000*750*2750mm

Color:: can be customized

Price:: Factory price

Product Description

Product Application

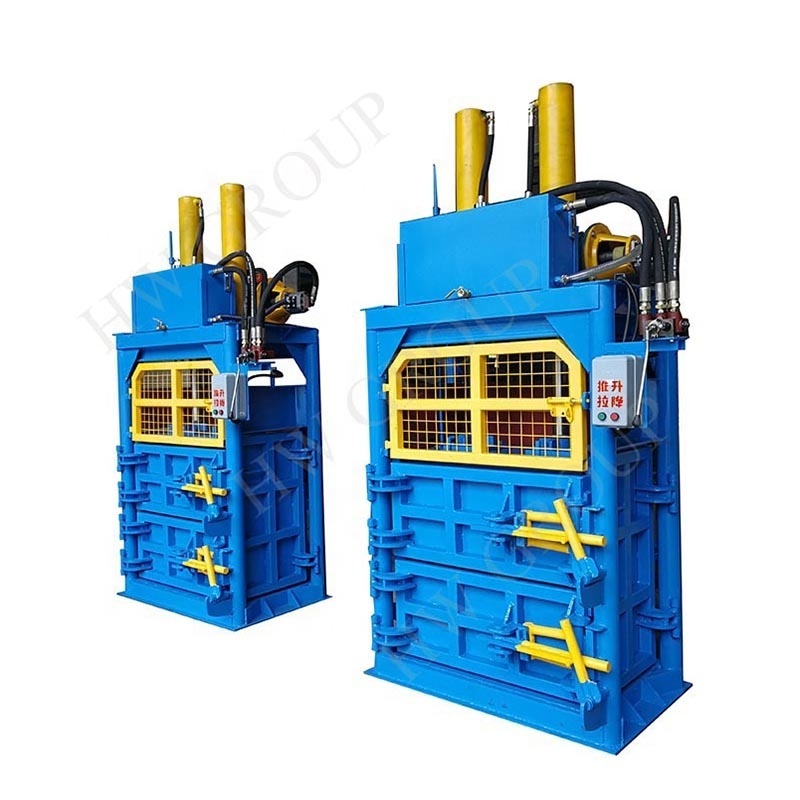

Plastic Metal Scrap garbage compress Hydraulic baler machine

(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers

Model	Force	Bale size	Bale weight	Efficiency	Power (KW)	Machine weight	Size (mm)
^HW10-6040	^10 Ton	^800*600 mm	^30-50 KG	^{4-6 bale/hour}	^2.2	^1000 KG	^9006502100
^HW20-8060	^20 Ton	^800*600 mm	^80-100 KG	^{4-6 bale/hour}	⁴	^1100 KG	^{10007502750}
^HW30-8060	^30 Ton	^800*600 mm	^100-130 KG	^{4-6 bale/hour}	^5.5	^1300 KG	^{10007502750}
^HW30-11070	^30 Ton	^1100*700 mm	^130-150KG	^{4-6 bale/hour}	^5.5	^1700 KG	^{13508503200}
^HW40-11070	^40 Ton	^1100*700 mm	^180-200KG	^{4-6 bale/hour}	^7.5	^1800 KG	^{13508503200}
^HW40-12080	^40 Ton	^1200*780 mm	^200-240KG	^{4-6 bale/hour}	^7.5	^2050 KG	^{160010503300}
^HW50-12080	^50 Ton	^1200*800 mm	^320-350KG	^{4-6 bale/hour}	^7.5 or 11	^2600 KG	^{160010503300}
^HW60-12080	^60 Ton	^1200*800 mm	^380-420KG	^{4-6 bale/hour}	^11 or 15	^2900 KG	^{160010503300}
^HW80-12080	^80TON	^1200*800 mm	^450-480KG	^{4-6 bale/hour}	¹⁵	^3300 KG	^{160010503300}
^HW100-12080	^100TON	^1200*800 mm	^500-550KG	^{4-6 bale/hour}	¹⁵	^3700KG	^{160010503300}
^HW120-150100	^120TON	^{1500*1000 mm}	^650-700KG	^{4-6 bale/hour}	^15 or 18.5	^4300KG	^{210015503300}
^HW150-150100	^150TON	^{1500*1000 mm}	^850-900KG	^{4-6 bale/hour}	^18.5	^5100KG	^{210015503300}

Certifications

Our Company

Packing & Delivery

Packaging
Size	3100 (L) * 1100 (W) * 980 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
