Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
188
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jinyi & OEM
-
Model Number:
-
JNG-18
-
Item:
-
Non-pressure Solar Water Heater
-
Out Tank material:
-
Stainless Steel
-
Out Tank Diameter:
-
470mm
-
Out Tank Thickness:
-
0.4mm
-
Inner Tank Material:
-
SUS304-2B
-
Inner Tank Diameter:
-
360mm
-
Inner Tank Thickness:
-
0.4mm
-
Insulation layer:
-
Polyurethane foam
-
Support:
-
Stainless steel
-
Vacuum Tubes Length:
-
1800mm
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
188
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jinyi & OEM
-
Model Number:
-
JNG-18
-
Item:
-
Non-pressure Solar Water Heater
-
Out Tank material:
-
Stainless Steel
-
Out Tank Diameter:
-
470mm
-
Out Tank Thickness:
-
0.4mm
-
Inner Tank Material:
-
SUS304-2B
-
Inner Tank Diameter:
-
360mm
-
Inner Tank Thickness:
-
0.4mm
-
Insulation layer:
-
Polyurethane foam
-
Support:
-
Stainless steel
-
Vacuum Tubes Length:
-
1800mm

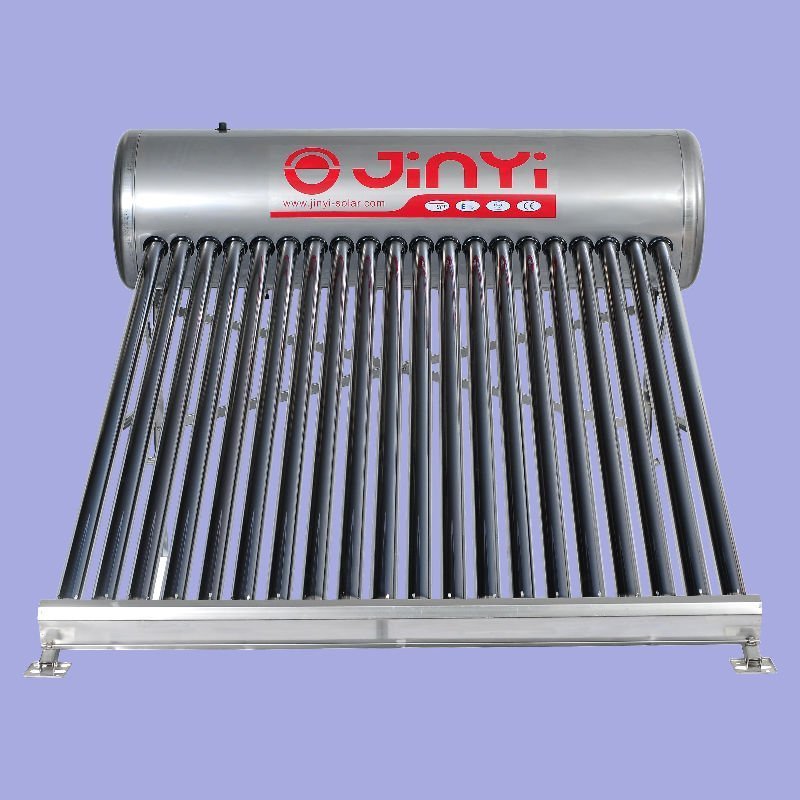

Jinyi Vacuum Tube Non-Pressure Solar Water Heater Kits
Characteristic
Using a thermosiphon vacuum tube solar water heater kits is an excellent way to start saving on your domestic hot water heating bills. The tank must be above the collector, so the thermosiphon phenomenon can occur, circulation water from collector to tank.
Advantages:
1. Can he operated completely automatic if connect with intelligent solar controller.
2. Simple structure, easy plug-in installation, can be installed both on flat and inclined roof, and can be used with an auxiliary electric booster as to provide tot water without sunshine.
3. Superior heat preservation ensured by one-off molding polyurethane foam with thickness 50 65mm.
4. Suitable for camping area, holiday residences.
5. stable and reliable performance, well wind resistance.
The details of material: Evacuated tube:
High quality borosilicate glass 3.3, Φ47×1500, Φ58×1800 Inner tank:SUS304-2B stainless steel plate Outer tank: Enamel steel plate Insulating layer: Polyurethane foam Bracket: Galvanized steel plate Capacity of tank: 30L- 360L
Working Principle Of Solar Water Heater Kits :
Two types for Non-Pressurized Solar Water Heater Kits:
Parameter for Solar Water Heater Kits
| Item | Specification |
| Outer Tank | |
| Material | SUS201 |
| Diameter | 470mm |
| Thickness | 0.4mm |
| Inner Tank | |
| Material | SUS304-2B |
| Diameter | 360mm |
| Thickness | 0.4mm |
| Tank Insulation | |
| PU Foam | High Density |
| Thickness | 55mm |
| Vacuum Tube | |
| O.D | 58mm |
| Length | 1899mm |
| Coating | AL/N/AL |
| Number | 18 tubes |
| Plated Frame | |
| Material | Coated Galvanized Steel |
kit picture for sosolar water heater kits
