Peak Power Watts: 340W (UE340M-60H)
Maximum Power Voltage: 34.2V
Maximum Power Current: 9.94A
Open Circuit Voltage: 41.1V
Short Circuit Current: 10.6A
Dimensions:1698×1004×35 mm (66.85×39.53×1.38 inches)
Weight:18.7 kg (40.8 lb)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
UNITED ENERGY
-
Model Number:
-
UE5KW-OFF
-
Output Voltage (V):
-
220v, 110-250V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Mounting System:
-
Pitched Roof (STD)
-
Wave Form:
-
Pure Sine Wave
-
AC Voltage:
-
110-250V(Adjustable)
-
Peak Power:
-
6000W
-
Battery Voltage:
-
48VDC
-
Communication:
-
RS485
-
System Type:
-
Off-grid Solar Power Generation
-
Service:
-
OEM ODM Accept
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
UNITED ENERGY
-
Model Number:
-
UE5KW-OFF
-
Output Voltage (V):
-
220v, 110-250V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Mounting System:
-
Pitched Roof (STD)
-
Wave Form:
-
Pure Sine Wave
-
AC Voltage:
-
110-250V(Adjustable)
-
Peak Power:
-
6000W
-
Battery Voltage:
-
48VDC
-
Communication:
-
RS485
-
System Type:
-
Off-grid Solar Power Generation
-
Service:
-
OEM ODM Accept
Products Description
Warranty
What's Included:
|
Components
|
UE1KW-OFF
|
UE2KW-OFF
|
UE3KW-OFF
|
UE4KW-OFF
|
UE5KW-OFF
|
||||
|
340W Mono Solar Panel
|
2 Piece
|
4 Piece
|
6 Piece
|
9 Piece
|
12 Piece
|
||||
|
MC4 Y Branch
|
1 Pair
|
1 Pair
|
2 Pair
|
/
|
/
|
||||
|
Combiner Box
|
/
|
/
|
/
|
3 in 1 out
|
3 in 1 out
|
||||
|
Off Grid Inverter
|
1KW
|
2KW
|
3KW
|
4KW
|
5KW
|
||||
|
12V 200AH Battery
|
1 Piece
|
2 Piece
|
4 Piece
|
4 Piece
|
8 Piece
|
||||
|
DC Cable
|
100 Meters
|
100 Meters
|
200 Meters
|
200 Meters
|
200 Meters
|
||||
|
MC4 Connector
|
4 Pair
|
4 Pair
|
6 Pair
|
6 Pair
|
8 Pair
|
||||
|
Mounting System
|
Standards Pitched Roof ( Customized Optional)
|
|
|
|
|
||||
Note: Product dimensions and physical appearance in this data sheet are nominal. United Energy reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

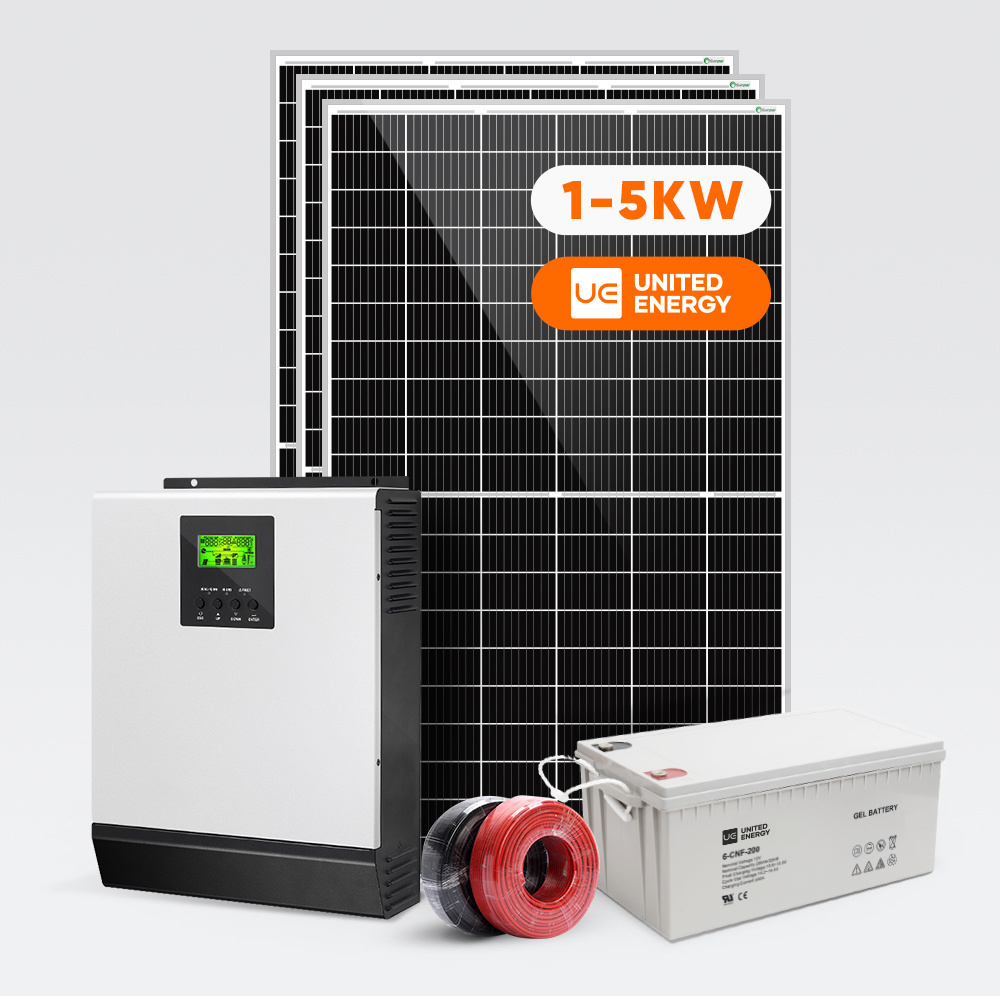

Off Grid System Configuration
Mono Solar Panels
Off Grid Inverter
The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
DC & AC Disconnect Switch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Our Factory
Packing & Delivery
|
Model
|
Single Set
|
20' Container Load
|
40' Container Load
|
|
UE1KW-OFF
|
1.7*0.45*1
|
30 Sets
|
70 Sets
|
|
UE2KW-OFF
|
1.7*0.6*1
|
12 Sets
|
28 Sets
|
|
UE3KW-OFF
|
1.7*0.6*1
|
12 Sets
|
28 Sets
|
|
UE4KW-OFF
|
1.7*0.75*1
|
10 Sets
|
24 Sets
|
|
UE5KW-OFF
|
1.7*0.75*1
|
5 Sets
|
12 Sets
|
Application
