Quick Details
-
Max. Lifting Height:
-
6m-18m
-
Span:
-
2~6m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
1000 kg
-
Product name:
-
360 degree rotating cantilever swing arm jib crane With Best Quality
-
Jib Crane Color:
-
Optional
-
Jib Crane Rotation angle:
-
0-360/90 Degree
-
Jib Crane feature:
-
Speed Crane Jib Crane Rotation
-
Jib Crane Lifting mechanism:
-
Wire Rope Electric Hoist
-
Jib Crane Type:
-
Slewing Arm Crane
-
Jib Crane Control method:
-
Pendent Control
-
Jib Crane Hoisting mechanism:
-
CD1/MD1type Electric Hoist
-
jib Crane Power source:
-
3 Phase 380V 50hz
-
Jib Crane Working Duty::
-
A3
Quick Details
-
Application:
-
Working Area
-
Rated Loading Capacity:
-
1ton~12ton
-
Rated Lifting Moment:
-
50KN
-
Max. Lifting Height:
-
6m-18m
-
Span:
-
2~6m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
1000 kg
-
Product name:
-
360 degree rotating cantilever swing arm jib crane With Best Quality
-
Jib Crane Color:
-
Optional
-
Jib Crane Rotation angle:
-
0-360/90 Degree
-
Jib Crane feature:
-
Speed Crane Jib Crane Rotation
-
Jib Crane Lifting mechanism:
-
Wire Rope Electric Hoist
-
Jib Crane Type:
-
Slewing Arm Crane
-
Jib Crane Control method:
-
Pendent Control
-
Jib Crane Hoisting mechanism:
-
CD1/MD1type Electric Hoist
-
jib Crane Power source:
-
3 Phase 380V 50hz
-
Jib Crane Working Duty::
-
A3

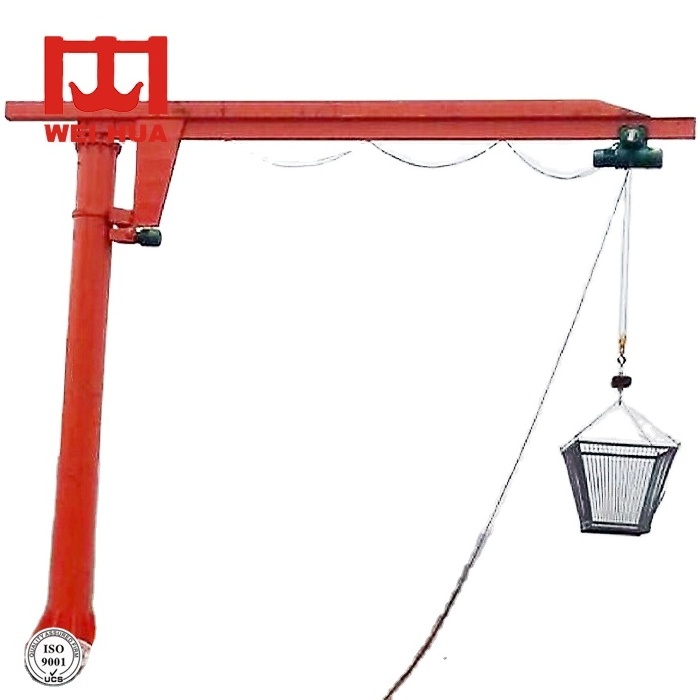

2ton Swing arm jib crane with electric hoist
Free Standing Column Jib Crane
•The 360 standard wall bracket jib crane 8t-6m is designed to offer maximum productivity with an industry leading safety factir of 10:1.
•This enclosed track wall bracket jib crane 8t-6m provides maximum coverage in 360 areas not served well by other cranes.
Wall Travelling Jib Crane
•The wall travelling wall bracket jib crane 8t-6m is the second transport level which carries goods independently from overhead cranes.
•It provides fluent moving of materials on an every level of the workshop.
•Equipped by wire rope hoists with low headroom or chain hoists series.
Contact us for more information !
Main Features
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Sketch Drawing
Technical Parameters
Contact me for more parameters and quotation !
|
Rated Capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Beam length |
mm |
2000~6000 |
|||||
|
Lifting height |
mm |
2000~6000 |
|||||
|
Lifting speed |
m/min |
8; 8/0.8 |
|||||
|
Travelling speed |
m/min |
10; 20 |
|||||
|
Turning speed |
r/min |
0.76 |
0.69 |
0.6 |
0.53 |
0.48 |
0.46 |
|
Turning degree |
degree |
360° |
|||||
|
Duty Class |
A3 |
||||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||||
|
Working temperature |
-20~42°C |
||||||
|
Control model |
Pendant pushbutton control or remote control |
||||||
