Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BHprefab
-
Model Number:
-
DC-144
-
Type:
-
Detacahble container
-
Color:
-
customized/options
-
Size:
-
customized/options
-
Material:
-
steel frame & insulation panel
-
Style:
-
Mordern
-
MOQ:
-
1 unit
-
Processing Service:
-
Bending, Welding, Decoiling, Cutting, Punching
-
Certification:
-
CE Certification
-
Advantage:
-
Fast Install
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Construction site office; Movable office;, Portable Steel Frame Structure Building
-
Product Type:
-
Container Houses
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BHprefab
-
Model Number:
-
DC-144
-
Type:
-
Detacahble container
-
Color:
-
customized/options
-
Size:
-
customized/options
-
Material:
-
steel frame & insulation panel
-
Style:
-
Mordern
-
MOQ:
-
1 unit
-
Processing Service:
-
Bending, Welding, Decoiling, Cutting, Punching
-
Certification:
-
CE Certification
-
Advantage:
-
Fast Install

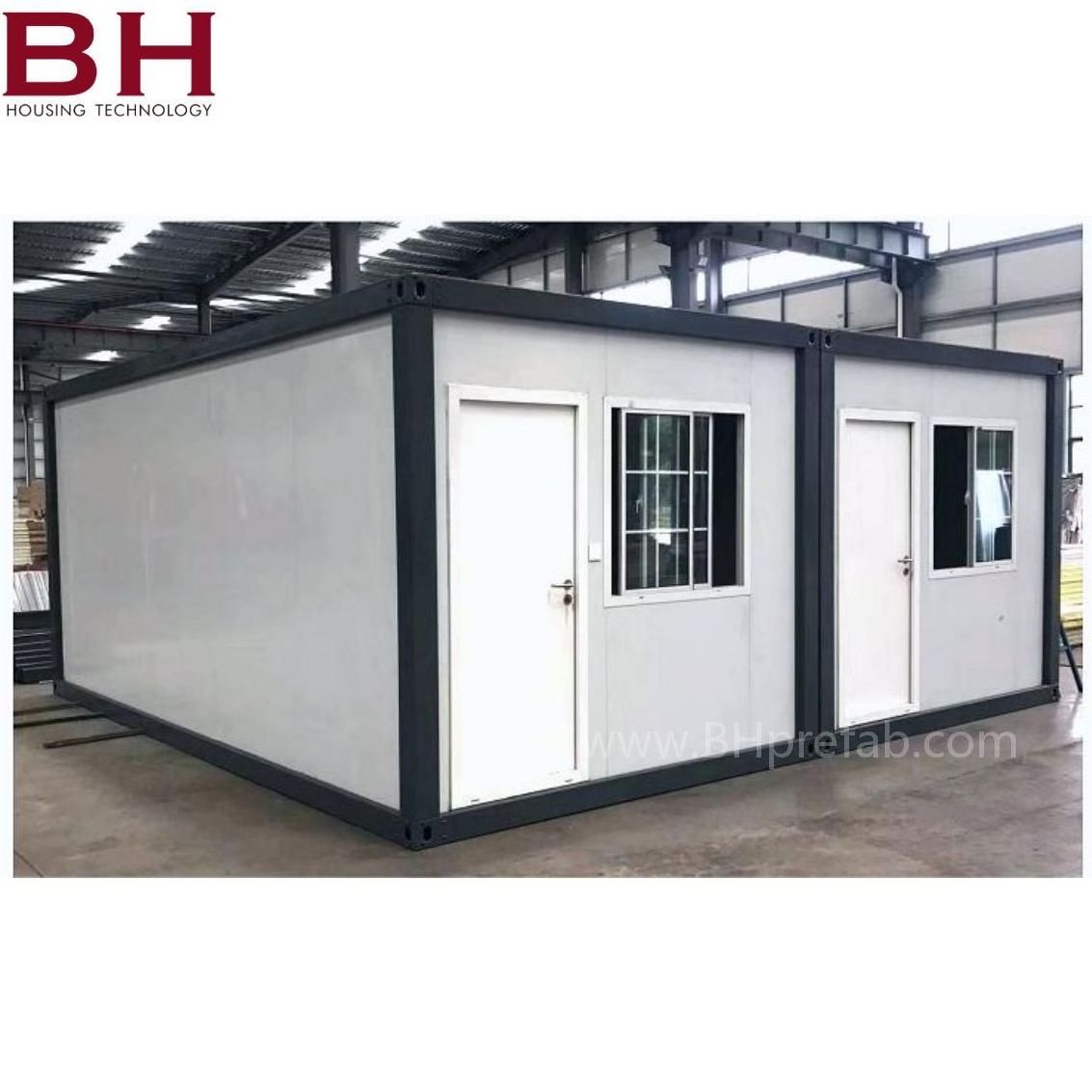

Prefab House Manual Installation Light Steel Structure Detachable Container for Hotel Building Philippines
Product Description
Specification
|
Detachable container-Standard Material &Technical Parameter
|
|
|
|
|||
|
Standard Materials
|
|
|
|
|||
|
Wall
|
50mm EPS sandwich panel
(rock wool/glass wool/MGO sandwich panel are optional) |
Roof
|
Roof system:
Option1: steel frame+insulationwool+steel sheet Option 2: steel sheet+Insulation sandwich panel |
|||
|
Structure
|
Powder coated Steel structure
(Galvanized Steel Structure is optional) |
Flooring
|
18mm MGO floor board
(fibercement board/plywood are optional) addition PVC carpet is available |
|||
|
Window
|
Aluminum sliding /UPVC sliding window, additon Anti thief window net is available
|
Door
|
Standard Steel door
(50mm Eps sandwich panel door is optional) |
|||
|
Electrical & sanitary system
|
Excluded, but optional as request by client
|
Partition
|
sandwich panel partiton is available
|
|||
|
Technical Parameter
|
|
|
|
|||
|
Size
|
3m(W)*5.95m(L)*2.8m(H)
|
Loading Qty
|
14 units ~17 untis per 40HQ
4 units~6 units per 20GP |
|||
|
Wind Load
|
80Km-100 Km/H
|
Eathquake resistance
|
7 degrees
|
|||
|
Floor Live load
|
180 kg/m
2
|
Roof Live Load
|
30kg/m
2
|
|||
|
life span
|
5~10 years
|
lift up & transportation
|
available
|
|||
|
Stackable design
|
1~3 floors are available
|
Install speed
|
2 persons in 4 hours by handwork with commom tool
|
|||
