- Product Details
- {{item.text}}
Quick Details
-
Machinery Function:
-
CRUSHING
-
Item:
-
bone crusher
-
Usage:
-
crush the animal bone
-
Material:
-
Stainless Steel
-
Capacity:
-
30-100kg/h
-
Power:
-
4kw
-
Voltage:
-
220V/380V
-
Weight:
-
230 kg
-
Dimension:
-
950*630*1100 mm
-
Function:
-
crushing
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNRISE
-
Machinery Capacity:
-
50-1000 KG/H
-
Machinery Function:
-
CRUSHING
-
Item:
-
bone crusher
-
Usage:
-
crush the animal bone
-
Material:
-
Stainless Steel
-
Capacity:
-
30-100kg/h
-
Power:
-
4kw
-
Voltage:
-
220V/380V
-
Weight:
-
230 kg
-
Dimension:
-
950*630*1100 mm
-
Function:
-
crushing
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
bone crusher, bone crusher machine, bone crushing machine
The bone broken machine adopts front blade, cutting blade angle to improve the efficiency of cutting bone, and smash particles more uniform. Hoppers install noise proof devices and have a better mute effect, durable material -stainless steel can extend the machine's service life. High-quality alloy steel cutter is forged by special heat, which achieves superior wear-resisting performance. The removable cutter can be polished after using a long time and has been blunt. This design is very environment-friendly, and can extend long service life. The motor is equipped with overload protection device. Feeding section and power supply chain protection can ensure users safety. The cutter adopts disperse stress design, which reduces a single blade of shear force and impact force.
Application of bone crushing machine
The bone broken machine is suitable for all kind of big animal bones, like dry/fresh cattle bones, pig bones, sheep bone, the donkey bone, and the broken ranges 5mm to 80mm. It has also been widely used in the broke-up of all kinds of hard food, for instance, sausage, ham sausage, lunch meat, meat balls, frozen food, salty flavor, bone marrow extract, bone glue, chondroitin, bone soup, bone peptide extract, biological products, instant noodles, puffed food, compound condiment, food and beverage ingredients, pet food and frozen meat. The machine can be used with conveyor belt, which can be more convenient through automatic feeding.
Feature of bone crushing machine
1. easy to operating, cleaning and maintaining.
2. Equipment structure is compact, can work more steadily.
3. Big capacity, low temperature.
4. Do not store the raw material. Particle can be adjustable.

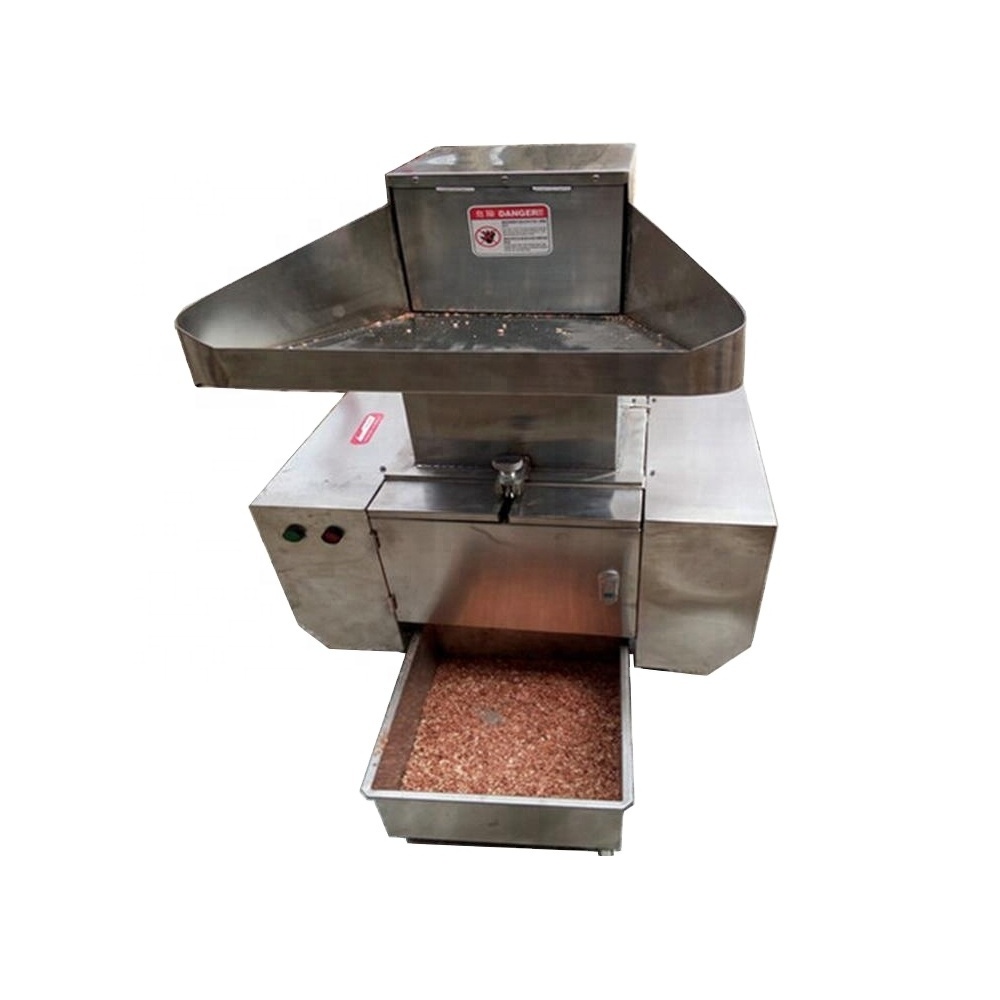

Pictures of our bone crusher, bone crusher machine
carbon steel bone crusher machine as following:
The final product of our bone crusher, bone crusher machine
Technical data of bone crusher
| Model | Capacity | Feed size | Power | Dimension | Weight |
| 150 | 20-60 kg/h | 150*200 mm | 2.2 kw | 450*720*900 mm | 160 kg |
| 230 | 30-100 kg/h | 250*210 mm | 4 kw | 950*630*1100 mm | 230 kg |
| 300 | 80-200 kg/h | 300*210 mm | 5.5 kw | 1000*700*1260 mm | 290 kg |
| 400 | 150-400 kg/h | 400*250 mm | 7.5 kw | 1800*820*1330 mm | 520 kg |
| 500 | 200-600 kg/h | 500*250 mm | 15 kw | 1700*1350*1760 mm | 850 kg |
| 600 | 300-900 kg/h | 600*320 mm | 22 kw | 1700*1480*1760 mm | 1250 kg |
| 700 | 500-1500 kg/h | 700*480 mm | 37 kw | 2000*1600*2000 mm | 1600 kg |
| 800 | 1000-4000 kg/h | 800*650 mm | 55 kw | 1600*2100*2600 mm | 2500 kg |
please check the package of our bone crusher, bone crusher machine as following;
Package: our machine are all with plywood case packing, one set machine with one case.
Payment: T/T, Westeran Union, L/C, Paypal, Secure payment of Alibaba.
Delivery time: We will deliver within 7-12 working days after receiving front payment.
Warranty period: All our machine is with one year warranty. We will provide free parts and techcical support for operation. After one year, we will provide spare parts with manufacturing cost.
After-sales Service:
1. Before deliver the machine, we will test and adjust everything properly.
2. Once all is done, we will make detailed picture for customer to confirm for delivery.
3. Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.
4. Any problems occur while using, we will provide profession advice and technical support ASAP.
5. Spare parts of the machien is provide whole serving life with resonable price.
