Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JINOU
-
Bluetooth specification:
-
Bluetooth V5.0 standard
-
RF level:
-
Class 1 / Class 2
-
Distance:
-
10m / 100m in open space
-
Power supply:
-
12V 1A power adapter
-
Max Connection:
-
28 SPP Bluetooth devices or 18 BLE devices
-
Internet protocol:
-
TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.
-
Internet:
-
RJ45/Wifi
-
Frequency range:
-
2.402G ~ 2.480GHz
-
Average power consumption:
-
120mA@12V
-
Size:
-
20*12*4cm
Quick Details
-
Chipset:
-
CSR/TI
-
Application:
-
IOT
-
Model Number:
-
BTP104-S
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JINOU
-
Bluetooth specification:
-
Bluetooth V5.0 standard
-
RF level:
-
Class 1 / Class 2
-
Distance:
-
10m / 100m in open space
-
Power supply:
-
12V 1A power adapter
-
Max Connection:
-
28 SPP Bluetooth devices or 18 BLE devices
-
Internet protocol:
-
TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.
-
Internet:
-
RJ45/Wifi
-
Frequency range:
-
2.402G ~ 2.480GHz
-
Average power consumption:
-
120mA@12V
-
Size:
-
20*12*4cm
Baisc introduction:

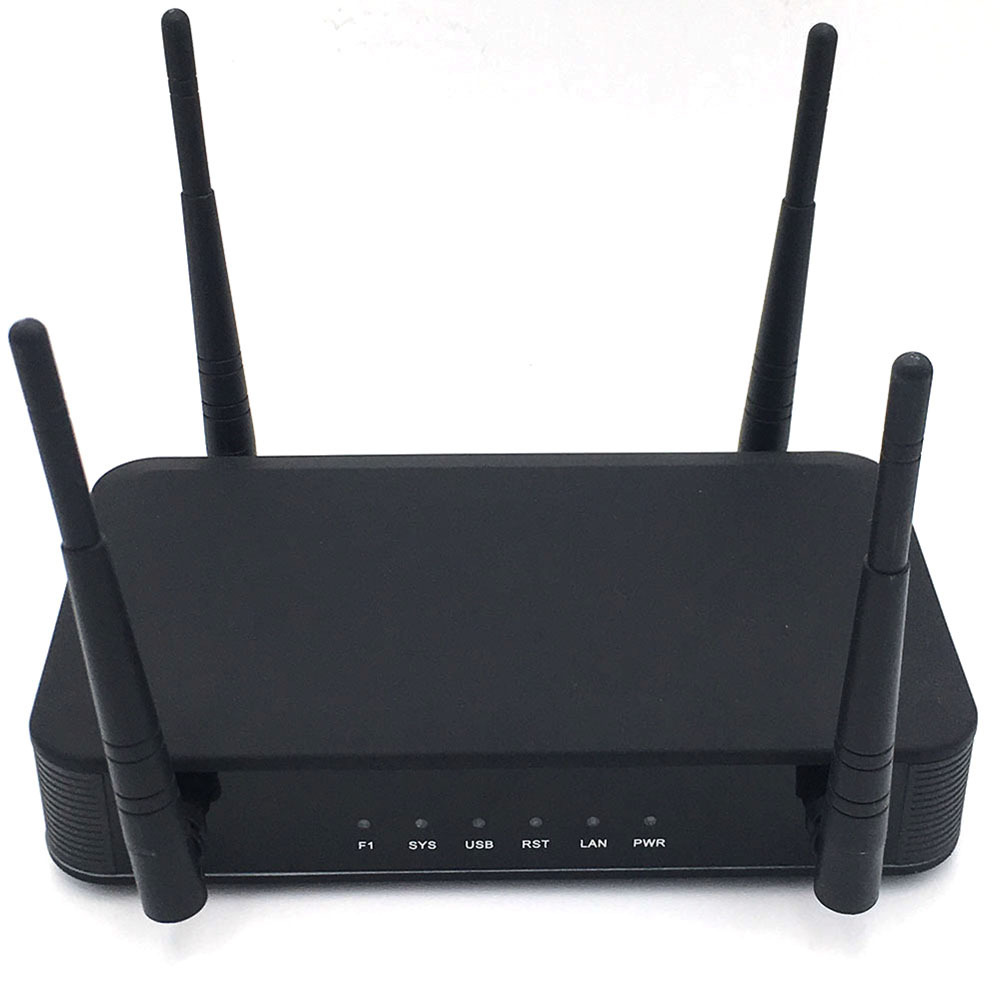

10M Bluetooth 5.0 Dual-mode Bluetooth Gateway
*Compatible with Bluetooth 3.0 and BLE4.0/5.0
*Linux system
*10M
*Scans unlimited broadcasting
*Connects 28 Bluetooth devices at most
The smart gateway is Bluetooth IoT gateway for smart home . It isoften uses in data connection, monitoring logistics and control different home smart devices.
Features
Easy internet connection
Flexible device scanning
Support Bluetooth devices if all the versions
Low cost, high speed internet access
Safe, easy to install and manage
Max connect 28 devices at the same time, and it the input ability can be extended by USB port
Technical specification
Support point to multi-point wireless connection
10M/100M adaptive network
Automatically distributes IP address
Support Bluetooth data encryption
Embedded Linux operating system
400MIPS High-performance processor
Average power consumption is 120mA@12V
Size: 20*12*4cm(not include antenna)
Bluetooth specification
Bluetooth V4.0 standard
Class 2 Bluetooth module s
External antenna
Frequency range: 2.402G ~ 2.480GHz
Achieved Bluetooth protocols: LC, LM, L2CAP, GATT, SDP, RFCOMM
Achieved internet protocols: TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.
Authentication: support Bluetooth safety certification
Internet
RJ45 port (can choose WiFi)
10M/100M adaptive
Application range
Device data collection
Staff monitor in school, workshop, etc.
Smart home, building automation
Logistics
Medical
Exercise and fitness
IOT
