- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Outdoor Antenna
-
Connector:
-
TS9 S MA CRC9
-
Gain:
-
10-12dBI
-
Frequency Range:
-
698-2700MHz
-
Color:
-
White
-
Weight:
-
200g
Quick Details
-
Type:
-
Cellular Antenna
-
Brand Name:
-
YY
-
Model Number:
-
YY-008
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Outdoor Antenna
-
Connector:
-
TS9 S MA CRC9
-
Gain:
-
10-12dBI
-
Frequency Range:
-
698-2700MHz
-
Color:
-
White
-
Weight:
-
200g

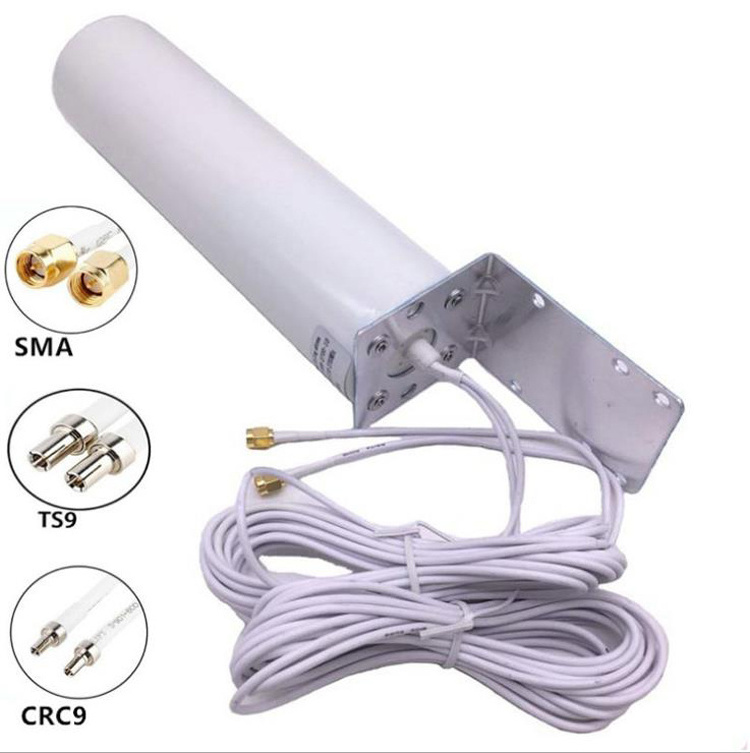

4G LTE Outdoor Antenna 3G 4G Outdoor Antenna with 5m CRC9 / TS9 / SMA Dual Slider Connector for 3G 4G Router Modem
Product Features:
1.Compatible with 4G mobile broadband Modems router, simple installation, no software required.
2.Fits 4G modems with TS9 male
3.Compatible list :3G 4G Router modem
4.Usable indoor or outdoors Enhance and maintain excellent signal quality.
5.Frequency range : 698-960/1710-2700MHZ
6.VSWR: <2.5
7.Gain: 10-12dBi
8.Polarization Type: Vertical
9.Radiation : Omni
10.Max Power imput: 10W
11.Input Impedance: 50 Ohms
12.Connector Type : Dual TS9 Male
13.Cable Type: RG174
14.Cable Length: Approx.5M
15.Dimensions: Appox.23 X 6.5 X 6.5CM
16.Material: Metal+Plastic
17.Color: White
18.Installation Tips:
Antenna should be mounted vertically to maximize performance
| Antenna Series | 4G,3G,2.4G wifi,1.2G,DVB-T TV Antenna,GPS Navigation Antenna,GSM Antenna,FM car Antenna etc. |
| RF connection series | LMR240,LMR400/7D-FB,LMR300/5D-FB,RG179,RG141,RG402,RG405,RG223 etc. |
| Coaxial RF connectors series | SMA,SMB,SMC,MCX,MMCX,BNC/Q9,TNC,N,UHF/M,FME,F,TV,FAKRA,CRC9,TS9/S197,IP-9/MS156,MS147 etc. |
