Quick Details
-
Specification:
-
450V1000uf
-
Packaging Type:
-
Carton
-
Application:
-
large power source uninteruptible power supplies
-
Package / Case:
-
screw
-
Series:
-
GN
-
Features:
-
Screw super long life inverter
-
Size / Dimension:
-
51*105
-
Description:
-
Screw super long life inverter
-
Capacitance:
-
450V1000uf
-

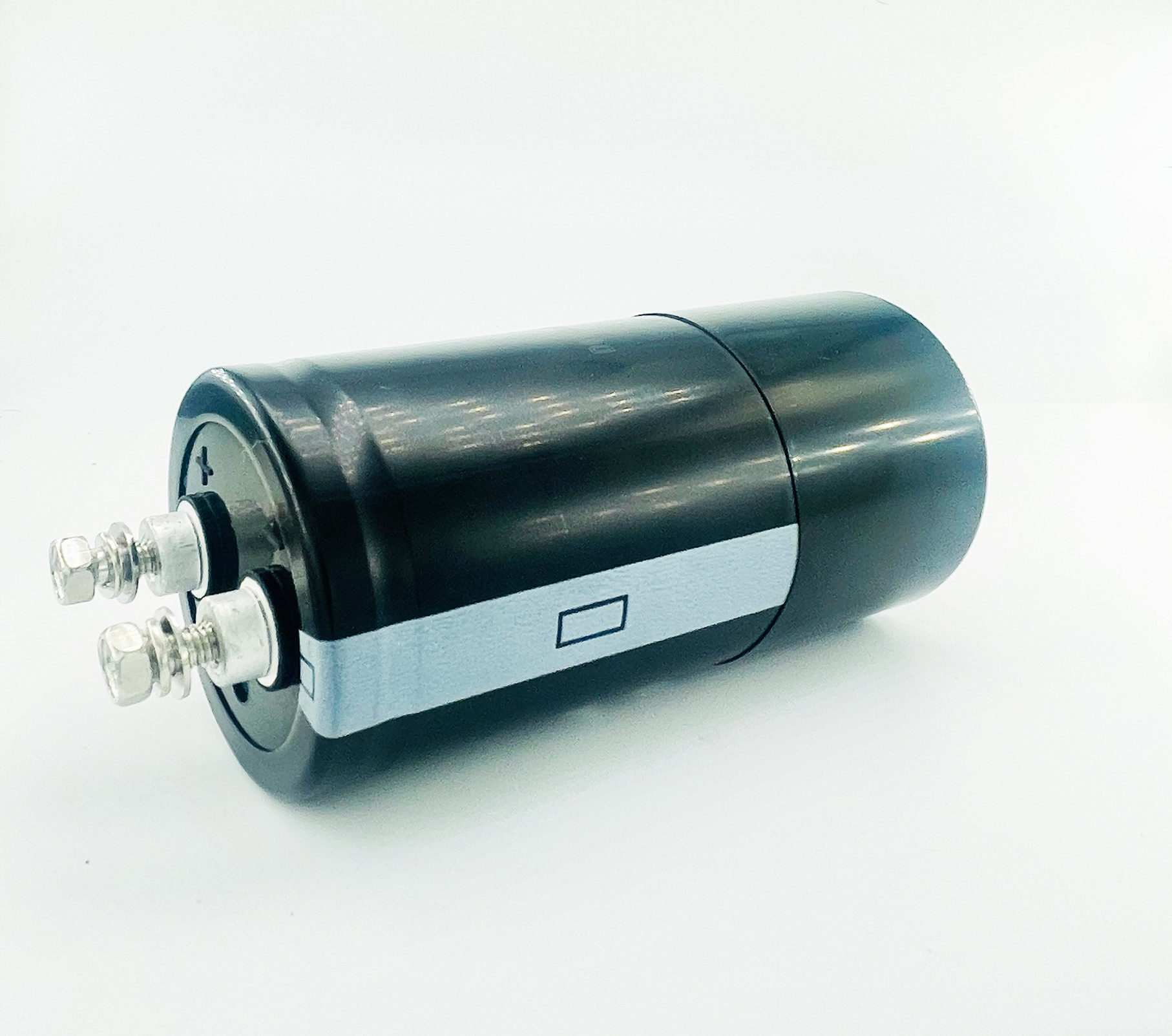

Type:
-
Screw Electrolytic Capacitor
-
Certificate:
-
Rohs/ Reach/ ISO9000/IAFT16949
-
Supplier Type:
-
Aluminum Electrolytic CapacitorAluminum Electrolytic Capacitor
-
Operating Temperature:
-
-25 C~+85
-
Material:
-
Aluminum Foil
-
Color:
-
Black
-
Voltage:
-
400V-450V
-
Load life:
-
10000 HOURS
-
Quality:
-
High -quality
-
Package:
-
Ppbag +carton
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
njhw/chang
-
Model Number:
-
GN
-
Specification:
-
450V1000uf
-
Packaging Type:
-
Carton
-
Application:
-
large power source uninteruptible power supplies
-
Package / Case:
-
screw
-
Series:
-
GN
-
Features:
-
Screw super long life inverter
-
Size / Dimension:
-
51*105
-
Description:
-
Screw super long life inverter
-
Capacitance:
-
450V1000uf
-
Type:
-
Screw Electrolytic Capacitor
-
Certificate:
-
Rohs/ Reach/ ISO9000/IAFT16949
-
Supplier Type:
-
Aluminum Electrolytic CapacitorAluminum Electrolytic Capacitor
-
Operating Temperature:
-
-25 C~+85
-
Material:
-
Aluminum Foil
-
Color:
-
Black
-
Voltage:
-
400V-450V
-
Load life:
-
10000 HOURS
-
Quality:
-
High -quality
-
Package:
-
Ppbag +carton
NanJia Hua Wei Electronics Co., Ltd.
NanJia Hua Wei Electronics Co., Ltd. was founded in 1987，It is a high-tech enterprise specialized in design, research, manufacturing and sales of a full range of aluminum electrolytic capacitor products. Huawei Electronics has entered the top 100 enterprise electronic components in China for consecutive years since 2003.
The company has honored titles, such as "Changzhou Advanced Unit for Quality Management", "District Leader Quality Award" and "National Leader in Capacitor Industry Quality". Trademarks and products were awarded "Jiangsu Famous Brand" and "Jiangsu Famous Brand Product"
Hua Wei Electronics has established a global sales service network, with multiple domestic offices and foreign sales branches. Our products are exported to Japan, Korea, Indonesia, India, Turkey, the United States, Russia, Germany, Brazil and other countries. We have established a good reputation and brand among customers, and become a strategic partner and excellent supplier for many customers.
Providing with a full range of aluminum electrolytic capacitors
Products meet RoHS, REACH, HF
NanJia Hua Wei Electronics，as the only domestic supplier of a full range of aluminum electrolytic capacitors, produces a total of more than 100 series including six types: Lead, SMD, Snap-in, Screw, Solid, and Hybrid. Hua Wei Electronics promises to provide services and products that can help create a safe and healthy environment and minimize the impact of its own operations on the environment with the standards of great capacitor companies.
Capacity: 3 billion PCs/yearProduct type: lead type, solder pin type, solder lug type,Bolt-type solid aluminum electrolytic capacitor
Capacity: 1.2 billion pieces/yearProduct Type: Chip Aluminum Electrolytic Capacitor
Capacity: 1.8 billion PCs/yearProduct Type: Lead Type Aluminum Electrolytic Capacitor
Quality guarantee.
laboratory
Product information
GN
Series
High ripple current, Super long life, Load life of 10000 hours at 85℃,
Used large power source, Uninterruptible power supplies,
Frequency converter circuit .etc.
Features
Used large power source, Uninterruptible power supplies,
Frequency converter circuit .etc.
Adapted to the RoHS directive.
Specifications
|
Items
|
Performance Characteristics
|
|
|
|
Operating Temperature Range
|
-25~+85℃
|
|
|
|
Rated Voltage Range
|
400~450V
|
|
|
|
Nominal Capacitance Tolerance
|
±20%（+20℃，120Hz）
|
|
|
|
Leakage Current
|
I ≤0.01CV(μA)（at 20℃, after 5 minutes, Whichever is smaller）
|
|
|
|
Dissipation Factor(+20℃, 120Hz)
|
≤0.15
|
|
|
|
Temperature Characteristics
(Impedance ratio at 120Hz) |
Rated Voltage (V)
|
400～450
|
|
|
|
Z-25℃/Z+20℃
|
8
|
|
|
Shelf Life
|
after storage for 1000 hours at +85℃ , U
R to be applied for 30 minutes and then resumed for 16 hours:
Capacitance change ： ±20% of the initial measured value
Leakage current ： ≤Initial specified value Dissipation factor ： ≤2times of the initial specified value |
|
|
|
|
Useful Life
|
|
Load Life
|
Endurance Test
|
|
|
Lifetime
|
15000h
|
＞150000h
|
10000h
|
10000h
|
|
|
Leakage Current
|
Not more than specified value
|
|
Not more than specified value
|
Not more than specified value
|
|
|
Caacitance Change
|
Within ±30% initial value
|
|
Within ±25% initial value
|
Within ±10% initial value
|
|
|
Dissipation Factor
|
Not more than 300% of specified value
|
|
Not more than 250% of specified value
|
Not more than 130% of specified value
|
|
|
Condition
Applied Voltage Applied Current Applied Temperature Outlier Percetage |
U
R
I
R
85℃
≤1%
|
U
R
1.4×I
R
40℃
≤1%
|
U
R
I
R
85℃
0%
|
U
R
I
R
=0
85℃
IEC60384
|
|
Unit: mm
Frequency Coefficient
|
Frequency
(Hz) |
50
|
100(120)
|
300
|
1K
|
≥10K
|
|
Rated
Voltage (V) |
|
|
|
|
|
|
400~450
|
0.70
|
1.00
|
1.10
|
1.30
|
1.40
|
Life Time Graph
The graphs shows a typical trend of the standard capacitor useful life.
Dimensions
Size φD×L(mm)
Maximum Allowable Ripple Current ( A rms) at 105℃ 120Hz
Maximum Allowable Ripple Current ( A rms) at 105℃ 120Hz
