Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER AUTO EQUIPMENT
-
Model Number:
-
TPB-18-5
-
Product name:
-
Hot sale Truck Painting Automotive Paint Car Spray Booth Oven with CE
-
Usage:
-
Truck Painting and Baking
-
Heating System:
-
Diesel Heating System
-
Fans kind:
-
Centrifugal Fans CE
-
Lighting System:
-
LED Light
-
Illuminance:
-
≥1000LUX
-
Filters:
-
Environmental 3 Filter Process
-
Color:
-
Blue/Orange/Red/White
-
Environmental certificate:
-
CE Approved Truck Spray Booth
-
Warranty:
-
One Year Service
Quick Details
-
Power:
-
75.5 KW
-
External Size:
-
18150*6896*5600mm
-
Internal Size:
-
18000*5000*5000mm
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER AUTO EQUIPMENT
-
Model Number:
-
TPB-18-5
-
Product name:
-
Hot sale Truck Painting Automotive Paint Car Spray Booth Oven with CE
-
Usage:
-
Truck Painting and Baking
-
Heating System:
-
Diesel Heating System
-
Fans kind:
-
Centrifugal Fans CE
-
Lighting System:
-
LED Light
-
Illuminance:
-
≥1000LUX
-
Filters:
-
Environmental 3 Filter Process
-
Color:
-
Blue/Orange/Red/White
-
Environmental certificate:
-
CE Approved Truck Spray Booth
-
Warranty:
-
One Year Service
Product Description
|

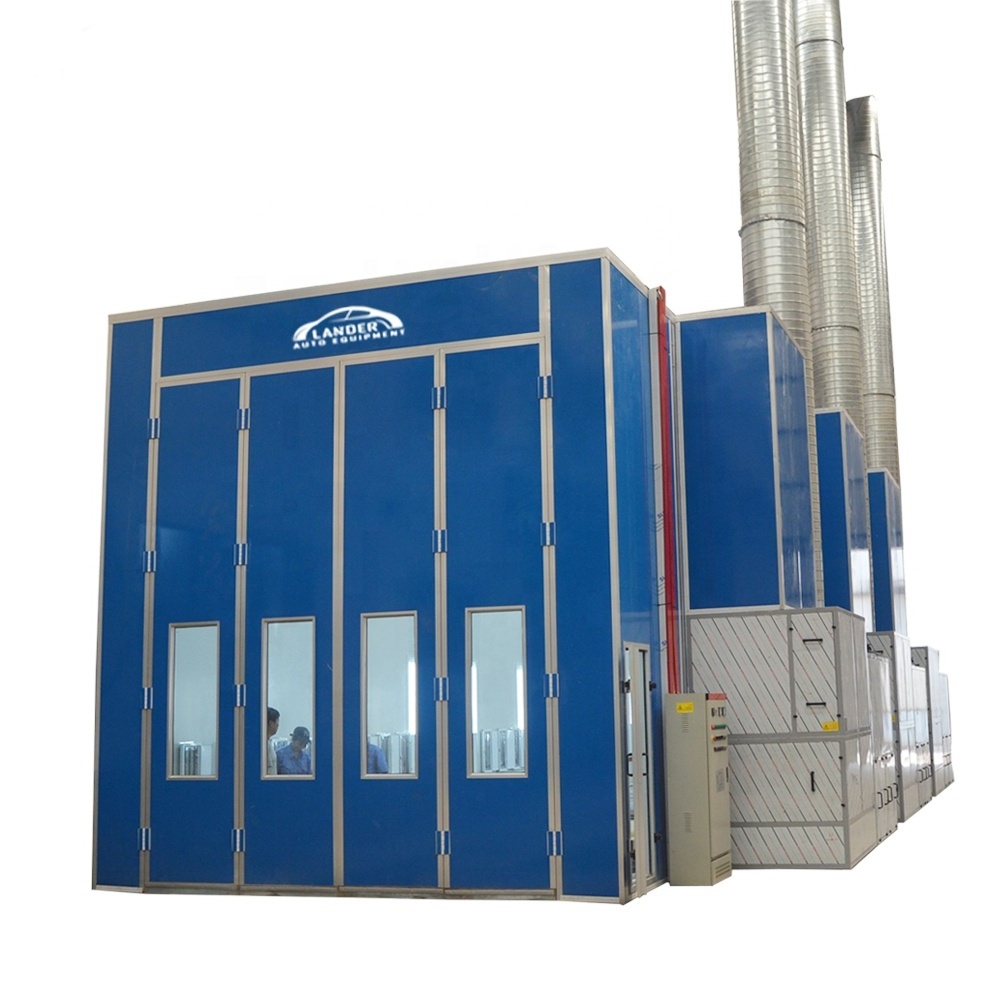

SPECIFICATIONS FOR TPB-18-5 SPRAY BOOTH
|
|
|
|
|||
|
Outside Dimensions(mm)
|
18150*6896*5600mm
|
Inside Dimensions(mm)
|
18000*5000*5000mm
|
|||
|
Front Door(mm)
|
4000×4500mm(W×H)
|
Service Door(mm)
|
800*2000mm(W×H)
|
|||
|
Total Power
|
75.5 KW
|
Voltage
|
380V/50 or 60Hz/3Ph, etc.
|
|||
|
Cabin System
|
Wall Panel
|
75mm EPS colorful steel skin board, tongue& groove style compound construction, anti-flame and heat-insulation, steel sheet thinkness: 0.5mm
|
|
|||
|
|
Ceiling Panel
|
0.8mm Galvanized Steel Sheet
|
|
|||
|
|
Basement
|
Without Basement, but 2 tunnels for exhaust the air.
2 rows of Grid Plates (Galvanized), made of 30x5mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame. |
|
|||
|
|
Glass
|
5mm Safety Tempered Glass
|
|
|||
|
|
Windows
|
Square Glass Window with wide vision
|
|
|||
|
|
Front Door
|
4 folds,size is 4,000×4,500mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock
|
|
|||
|
|
Service Door
|
2 sets. Size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock
|
|
|||
|
Air Make-up System
|
Air-Intake Fan System
|
6*5.5KW double-intake centrifugal fans for intake air,model is YDW4.5S,total air capacity is 93000m³/h
|
|
|||
|
|
Air-Exhaust Fan System
|
3*11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive,model TAE-630H,air capacity is 84000m³/h
|
|
|||
|
|
Air Capacity
|
93000m³/h
|
|
|||
|
|
Air Flowing Speed
|
0.35m/s in empty booth
|
|
|||
|
Purification System
|
Primary Filter
|
Filtering rate > 83%
G3 Grade(EN779),type:C16-300 ; Fibre glass filter, G3 Grade(EU-3) |
|
|||
|
|
Air-Intake Filter
|
Filtering rate > 97%
Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) |
|
|||
|
|
Air-Exhaust Filter
|
Filtering rate > 70%
Fibre glass filter, G2 Grade(EU-3) |
|
|||
|
|
Activated Carbon Filter
|
Included
|
|
|||
|
Heating System
|
Heating Exchanger
|
Heating Exchanger*1unit,made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe,equipped with safe anti-explosion hole,1M stainless steel chimney, 3M long bended galvanised steel chimney & 1 pc of rain shield.
|
|
|||
|
|
Heating Burner
|
Diesel Burner*3unit (Italy RIELLO, RG5S), Heating capacity: 780,000Kcal/H
Manual damper actuates from spraying to baking cycle, and one for exhaust air |
|
|||
|
|
Max. Heat Temperature
|
80℃
|
|
|||
|
Lighting System
|
Ceiling Light
|
24 Units, total 96pcs, 36w LED lamp, with Light Fixtures, anti-explosion designed
|
|
|||
|
|
Side Light
|
28 Units, total 112pcs, 36w LED lamp, with Light Fixtures, anti-explosion designed
|
|
|||
|
|
Illumination
|
≥1000LUX
|
|
|||
|
Control System
|
Switched Control Panel
|
Button type control box, with main switch
Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. |
|
|||
|
Accessories
|
All Hardware, Fasteners, and Sealants
|
|
|
|||
LANDER Auto Equipment is a specialists manufacturer and supplier of spraybooths and associated equipment. Our position as clear market dealers is highlighted by expertise that spans a wide range of applications, from high volume conveyorised production, car body repair and large scale special projects.
As well as being powerful force in workshop and bodyshop productivity, we have produced spraybooths that meet and exceed the highly specific demands of the aviation industries and the relentless demands of industry and manufacturers.
Our spraybooths are in operation throughout the world, creating the ultimate clean-air environments for spraying and ensuring fast drying times for fast, energy-efficient production. Also we can customize for customer based on the detailed request.
Detailed Images
Packing & Delivery
FAQ
Q: How do you ganrantee the production quality?
Q: Have you exported to our country?
A: From now on, we have did business with foreign friends from 128 countries, such as USA, Canada, UK, Italy, South Africa......
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
Q: What is your payment terms?
A: We accept T/T, Western Union, L/C, Alibaba Trade Assurance, etc.
A: We accept T/T, Western Union, L/C, Alibaba Trade Assurance, etc.
Q: Can you provide the whole workshop automotive equipment?
A: Yes. we can. And we have help many customers to start their body shops, some from Canada, UAE, Germany,Tailand, etc.
A: Yes. we can. And we have help many customers to start their body shops, some from Canada, UAE, Germany,Tailand, etc.
Q: Can I have a visit to your company?
A: Sure, welcome to visit us. Our factories are located in Jinan and Yantai of Shandong Province.
A: Sure, welcome to visit us. Our factories are located in Jinan and Yantai of Shandong Province.
