Quick Details
-
Power:
-
5KW-10KW
-
Dimension(L*W*H):
-
3680*650*1700mm
-
Weight:
-
550 KG
-
Warranty of core components:
-
1 year
-
Name:
-
Homebrewery
-
Material:
-
SUS304/SUS316/red Copper
-
Brewhouse type:
-
1/2 vessels
-
Heating way:
-
Electricity/Steam/Fire
-
Control system:
-
PID/PLC
-
Cooling way:
-
Dimple plate cooling
-
Plate type:
-
Mirror polishing/2B/wire Drawing
-
Insulation:
-
Polyurethane/rockwool
-
QA & QC:
-
Yes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Canada, United Kingdom, United States, France, Germany, Australia
-
Certification:
-
CE ISO SGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NDL Craft
-
Voltage:
-
220/380V 50HZ/60HZ
-
Power:
-
5KW-10KW
-
Dimension(L*W*H):
-
3680*650*1700mm
-
Weight:
-
550 KG
-
Warranty of core components:
-
1 year
-
Name:
-
Homebrewery
-
Material:
-
SUS304/SUS316/red Copper
-
Brewhouse type:
-
1/2 vessels
-
Heating way:
-
Electricity/Steam/Fire
-
Control system:
-
PID/PLC
-
Cooling way:
-
Dimple plate cooling
-
Plate type:
-
Mirror polishing/2B/wire Drawing
-
Insulation:
-
Polyurethane/rockwool
-
QA & QC:
-
Yes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Canada, United Kingdom, United States, France, Germany, Australia
-
Certification:
-
CE ISO SGS
Homebrewery nano brew system 60l 100l 200l 500l cooling fermenter homebrew equipment
Why NDL Craft Home Brewery Equipment?
1. Patent product(C ore Technology )
2. New design(CE PED standards and ASME design codes)
3. Localized service(United States, the United Kingdom and Canada)
4. Modern production(7 Brewery Pressing Line)

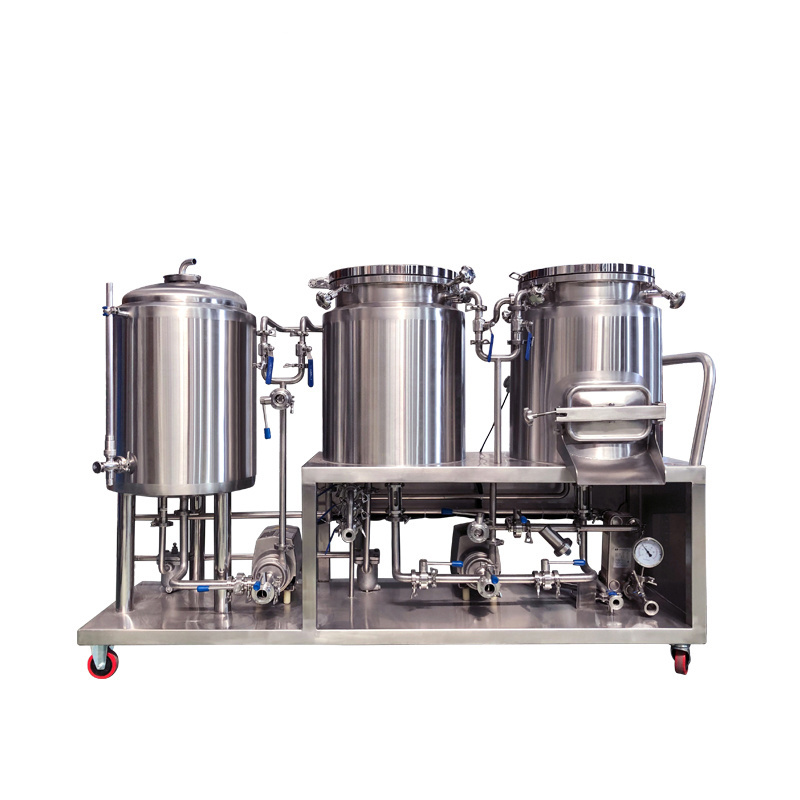

60L Home Brewery
:
This type 60l beer brewery equipment includes two vessels brewhouse, 2 or 3*60l fementers, glycol water tank, chiller and control cabinet and fitting all necessary parts.
The 60l beer brewery machine is easy to operate, bottom with wheel, easy to move, it is suitable for home brewing / beer recipes test / pilot brewing etc.
60L home diy beer brewery
Two-vessel Brewhouse:
Fermenter with cooling system:
-New design for home brewery
-Fast and easy cleanup
-Small size save space
-High configuration model
-REMOTE CONTROL
|
System |
Name |
Quantity |
|
Mashing system |
Mash tun/lauter tank |
1pcs |
|
Boiler/whirlpool tank |
1pcs |
|
|
Heat Exchanger |
1pcs |
|
|
Wort pump |
1pcs |
|
|
Pipelines, valves fitting |
1 pcs |
|
|
Platform with casters |
1 pcs |
|
|
Brewhouse controller |
1 pcs |
|
|
Fermenting/cooling/ controlling system |
Fermenter |
2 pcs |
|
Glycol water tank |
1 pcs |
|
|
Glycol water pump |
1 pcs |
|
|
Chiller |
1 pcs |
|
|
Cabinet |
1 pcs |
|
|
controller |
1 pcs |
|
|
Pipelines, valves |
1 pcs |
|
|
Platform with casters |
1 pcs |
Which one will be better for you?
You May Also Like Other Brewhouse Types:
A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers or feeding a distilling operation might go with a dedicated Mash Tun, dedicated Lauter Tun, and a combination Kettle/Whirlpool. Three-vessel systems don’t have the same output and versatility as four-vessel systems, but they will still out perform a two-vessel system and provide increased efficiency.
A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
Four-vessel systems offer the highest throughput and the most versatility. With proper vessel sizing, well laid out hard piping, and well-designed controls these brewhouses can be extremely large and only require one person to operate it. The ability to make more beer with less labor input, paired with gains in efficiency and quality control make the four-vessel brewhouse a worth while investment for breweries that intend to produce a lot of beer.
