Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greater
-
Model Number:
-
H05V-R/H07V-R
-
Rated voltage:
-
300/500V 450/750V
-
Voltage:
-
300/500V 450/750V
-
Standard:
-
H05V-R/H07V-R
-
Certificate:
-
SAA/CE/UL/VDE/
-
No. of Conductor:
-
1 core
-
Conductor:
-
Copper Conductor
-
Insulation:
-
PVC
-
Size NO.:
-
1.5mm to 185mm
-
Temperature:
-
70℃
-
Keyword:
-
6mm 10mm Electric Wire House Building Power Cable
-
Warranty:
-
1 Year
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greater
-
Model Number:
-
H05V-R/H07V-R
-
Rated voltage:
-
300/500V 450/750V
-
Voltage:
-
300/500V 450/750V
-
Standard:
-
H05V-R/H07V-R
-
Certificate:
-
SAA/CE/UL/VDE/
-
No. of Conductor:
-
1 core
-
Conductor:
-
Copper Conductor
-
Insulation:
-
PVC
-
Size NO.:
-
1.5mm to 185mm
-
Temperature:
-
70℃
-
Keyword:
-
6mm 10mm Electric Wire House Building Power Cable
-
Warranty:
-
1 Year
Products Description
Application

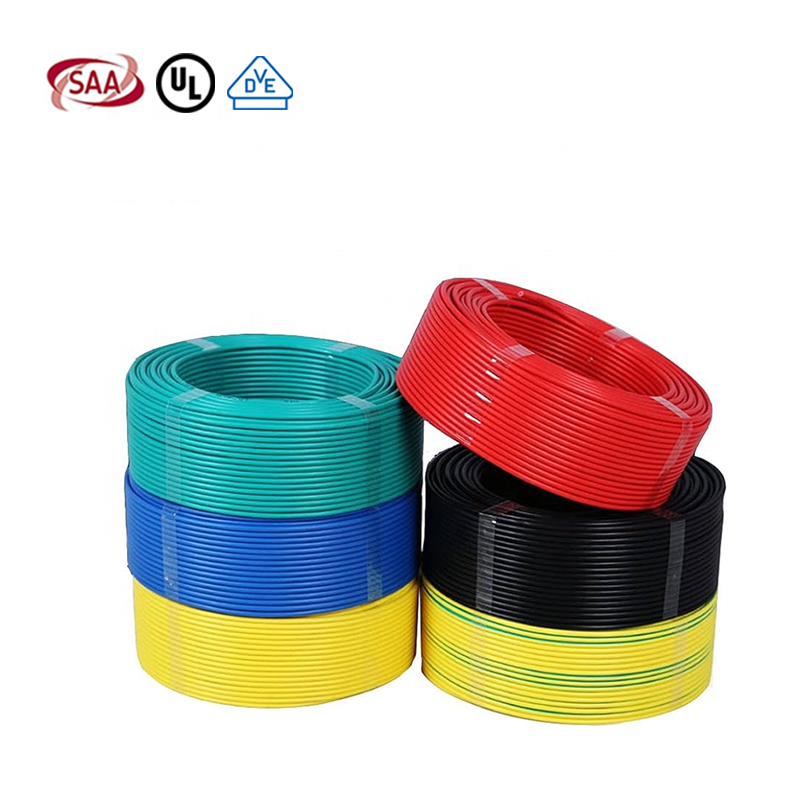

H05V-R/H07V-R is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.
Construction
Conductor
H07V-R: Class 2 stranded copper conductor to BS EN 60228
Insulation
PVC (Polyvinyl Chloride) Type T11 according to BS EN 50363
Conductor
H07V-R: Class 2 stranded copper conductor to BS EN 60228
Insulation
PVC (Polyvinyl Chloride) Type T11 according to BS EN 50363
Cable Standards
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed .
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed .
Characteristics
Voltage Rating (Uo/U)
H05V-R: 300/500V
H07V-R: 450/750V
Temperature Rating
-15℃ to +70℃
Minimum Bending Radius
Up to 10mm2: 3 x overall diameter
10mm2 to 25mm2: 4 x overall diameter
Above 25mm2: 5 x overall diameter
Insulation Colour
Red, Black, Blue, Yellow, White, Green/Yellow, Grey, Brown
H05V-R: 300/500V
H07V-R: 450/750V
Temperature Rating
-15℃ to +70℃
Minimum Bending Radius
Up to 10mm2: 3 x overall diameter
10mm2 to 25mm2: 4 x overall diameter
Above 25mm2: 5 x overall diameter
Insulation Colour
Red, Black, Blue, Yellow, White, Green/Yellow, Grey, Brown
Product Paramenters
|
Type Code
|
Cross-section
[mm]
|
Nominal Outer Diameter
[mm]
|
Current rating, installation in open air, ambient 30°C
[A]
|
Total weight
[kg/km]
|
|
H07V-R
|
1.5
|
3.0
|
24
|
21
|
|
H07V-R
|
2.5
|
3.6
|
32
|
32
|
|
H07V-R
|
4
|
4.1
|
42
|
46
|
|
H07V-R
|
6
|
4.7
|
54
|
68
|
|
H07V-R
|
10
|
6.1
|
73
|
109
|
|
H07V-R
|
16
|
7.0
|
98
|
163
|
|
H07V-R
|
25
|
8.6
|
129
|
259
|
|
H07V-R
|
35
|
9.8
|
158
|
344
|
|
H07V-R
|
50
|
11.5
|
198
|
483
|
|
H07V-R
|
70
|
13.5
|
245
|
674
|
|
H07V-R
|
95
|
15.8
|
292
|
924
|
|
H07V-R
|
120
|
17.4
|
344
|
1154
|
|
H07V-R
|
150
|
18.1
|
391
|
1499
|
|
H07V-R
|
185
|
21.5
|
448
|
1824
|
FAQ
Q1: Are you a factory?
A1: The company's main products are low-voltage cables. We are a manufacturer with more than 30 years of experience.
Q2: How about MOQ ?
A2: Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the best option.
Q3: How long is your delivery time?
A3: Generally it is 5-10 days if wires are in stock. if wires are not in stock, it is according to quantity.
Q4: Can I see the sample first before I place the real order ?
A4: Of course. We can offer samples for testing .
A1: The company's main products are low-voltage cables. We are a manufacturer with more than 30 years of experience.
Q2: How about MOQ ?
A2: Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the best option.
Q3: How long is your delivery time?
A3: Generally it is 5-10 days if wires are in stock. if wires are not in stock, it is according to quantity.
Q4: Can I see the sample first before I place the real order ?
A4: Of course. We can offer samples for testing .
Q5 : Can I get a discount?
A5：It depends on your quantity. Please contact us.
Q6：When can I get the price?
A6：We usually quote within 5 hours of receiving your inquiry. If you are in a hurry to get a price, please call us or let us know in your email so we can prioritize your inquiry.
Q7: Do you accept OEM/ODM?
A7：We support OEM/ODM service: please don't hesitate to tell us your thoughts. Please feel free to leave your request.
A5：It depends on your quantity. Please contact us.
Q6：When can I get the price?
A6：We usually quote within 5 hours of receiving your inquiry. If you are in a hurry to get a price, please call us or let us know in your email so we can prioritize your inquiry.
Q7: Do you accept OEM/ODM?
A7：We support OEM/ODM service: please don't hesitate to tell us your thoughts. Please feel free to leave your request.
