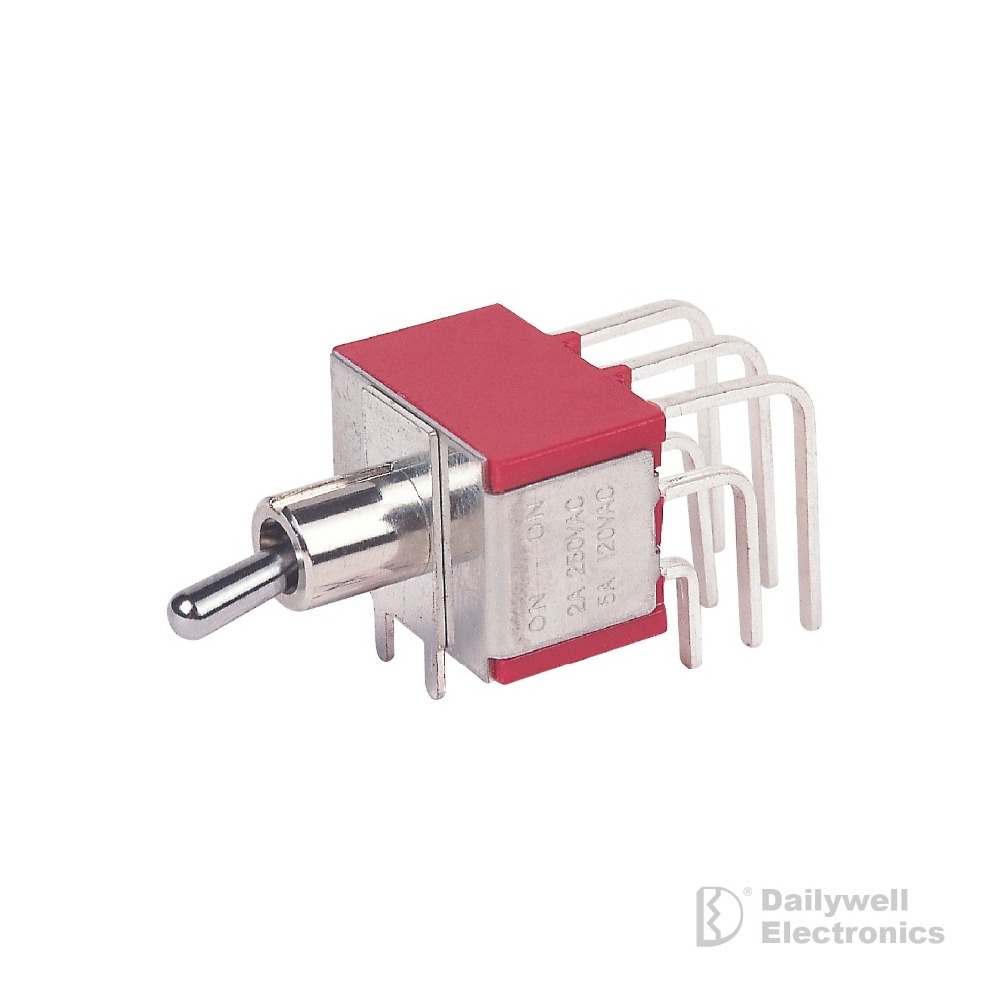

Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch

Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch

FOB Reference Price: Get Latest Price
≥500 Pieces
US $0.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
1M Series
Max. Current:
Gold: 0.4VA (maximum) at 20V (maximum) (AC or DC)
Mechanical Life:
40,000 make-and-break cycles
Applications:
Telecommunication /Medical equipment /Instrumentation
Function:
ON-ON,ON-OFF-ON,MOM-OFF-MOM
Certifications:
UL,ROHS,Lead Free
Case:
Diallyl phthalate (DAP) (UL94v-0)
Actuator:
Brass,chrome plated
Bushing:
Brass,nickel plated
Housing:
Stainless steel
Switch support:
Brass,tin plated
Housing color:
Red
classification:
1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch

Quick Details

Max. Voltage:
Silver:5A at 120VAC or 28VDC/2A at 250VAC
Place of Origin:
Guangdong, China
Brand Name:
Dailywell
Model Number:
1M Series
Max. Current:
Gold: 0.4VA (maximum) at 20V (maximum) (AC or DC)
Mechanical Life:
40,000 make-and-break cycles
Applications:
Telecommunication /Medical equipment /Instrumentation
Function:
ON-ON,ON-OFF-ON,MOM-OFF-MOM
Certifications:
UL,ROHS,Lead Free
Case:
Diallyl phthalate (DAP) (UL94v-0)
Actuator:
Brass,chrome plated
Bushing:
Brass,nickel plated
Housing:
Stainless steel
Switch support:
Brass,tin plated
Housing color:
Red
classification:
1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch
Product Description

Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch

Feature
Multi-pole and multi-position
Wide variety of actuator and termination options
Epoxy sealed terminals prevent contamination during soldering
SPECIFICATIONS
CONTACT RATING: Dependent upon contact material
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
MECHANICAL LIFE: 40,000 make-and-break cycles.
OPERATING TEMPERATURE: -30°C to 85°C.
CONTACT RESISTANCE: 10mΩmax. initial @ 2-4VDC
INSULATION RESISTANCE: 1,000 MΩġmin.
100mA for both silver and gold plated contacts.
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
HOUSING: Stainless steel.
ACTUATOR: Brass,chrome plated.
SWITCH SUPPORT: Brass, tin plated.
BUSHING: Brass, nickel plated.
CONTACT / TERMINALS: Copper alloy, Silver or gold plated.
Our Company

With ourcore technology on the integration of resources, customized requestcan be fulfilled in such a small amount of diversification with fast delivery to meet all the customer’s needs.
We have the professional management team andwe develop the new technology and continuously growing steady to meet all kinds of challenges in front of us.
DailywellElectronics Co., Ltd., has the R&D team that can solve the customer’s non-standard specifications on demand. In accordance with the company system planning, we are updatingthe directions of future productsfor the next 3 to 5 years annually to grow with our customers. Up-to-date with current market changes, starting from technical research and development, establish standard specifications, and expand the type of product lines. Then reinforce the educational training of professional knowledge in all department units after setting the future development strategyso that the whole company goes toward on thesame common goal. Customers always find us trustworthy by cooperating with us. Additional high value is what makes us outstanding in the market. We believe that by collaborating with us, our customers not only just get a switch they need but also get a partner that goes alongin this electronic road.

1997/03
Dailywell Electronics Co., Ltd. was officially established.

2000/10
Expanded production capacity and embarked on the strategy of internationalization by establishing a factory in Dongguan, China.

2001/05
Research on high-insulation, import to mass production. Awarded TUV certification.

2003/07
Awarded NEW version of ISO-2000 and TUV.

2003/09
Qualified Member of the Green Design Network.

2004/12
Established CNC Automated Latching Department to expand manufacturing rate.

2008/06
The new factory are built and started in Pingsha, Zhu Hai.

2008/10
Awarded ISO14001, OHSAS18001 certification.

2010/09
Awarded ISO9001:SGS International Quality Certification of 2008 year edition.

2015/08
Increase capital of NTD 20 million Total capital NTD 100 million Upgrade to C class member in TEEMA.
Our Advantage

From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory.
Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products.
Dailywell Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.

Quality Assurance
To ensure product quality and in line with the world environmental regulations, high-end precision analysis and testing are executed to provide excellent quality with the best services.

We care for environmental protection so we put efforts in creating a pollution-free environment, produce RoHS goods, and regularly implement the environmental verification on our products.

Our Service
Packing & Delivery
Our Certifications

Dailywell 1M series VS5 VS2-VS3 M6 M7 DPDT miniature toggle switch

FAQ

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.

Q: What is the payment terms do you accept?

A: We accept T/T in advance, L/C and Western Union.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
