Industrial Ultra Fine Dolomite Glass Pumice Powder Grinding Mill Price in China

Product Description

Name: 500 Mesh Superfine Quarry Caco3 Talc Barite Limestone Coke Slag Crushing Machine

Model: HGM series
Brand: Clirik
Powder Fineness Process Ability: 150-3000 mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h
Use Range: can be used in more than 300 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble and so on
Application: mining, chemiscal, transport and many other different areas

Parameter of HGM ultra fine grinding mill

Model	Ring Diameter (mm)	Ring Number (PCS)	Roller Number (PCS)	Shaft Speed (r. p. m)	Input Size (mm)	Finished Size (mesh)	Capacity (t/h)	Outlet Size L*W*H (m)	Power Consumption (KW)
HGM80	800	3	21	230-240	≤10	150-3000	0.5-5.5	8605*4139x6050	142
HGM80A	800	3	/	/	≤10	150-3000	0.5-5.5	10454*3393*6626	142
HGM90L	900	4	24-32	200-220	≤10	150-3000	0.8-6.5	11735*3952*7525	180
HGM100L-Ⅱ	1000	4	27	180-200	≤15	150-3000	1.2-10	14507*3633*7562	242
HGM100P	1000	4	34	180-200	≤15	150-3000	1.2-11	14362*4200*7562	267
HGM125L	1250	4	40-44	135-155	≤20	150-2500	2.5-20	19261*4406*8591	401
HGM1680L	1680	4	30-40	120-130	≤20	150-2000	5-45	25067*5414*9007	665-685

Application of HGM ultra fine grinding mill

HGM Ultra Fine Grinder mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite (calcite carbonate, calcium carbonate), chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 300 kinds of materials. Product fineness can be controlled between 0.047 and 0.005mm. And the HGM ultra fine grinding mill is a device that breaks solid materials into powder by grinding, Such comminution is an important unit operation in many processes. It is usually used in Metallurgy, building materials, chemical and mine industries.

Wear Parts of HGM ultra fine grinding mill

HGM ultra fine grinding mill wear parts including: Discharging Valve, Siemens Cabinet, Clasifer Impeller, Filter Bag, Pins, Turn Plates, Grinding Rings and Grinding Rollers, Shanghai Clirik Machinery as a professional grinding mill manufacturer also can supply these wear parts for you.

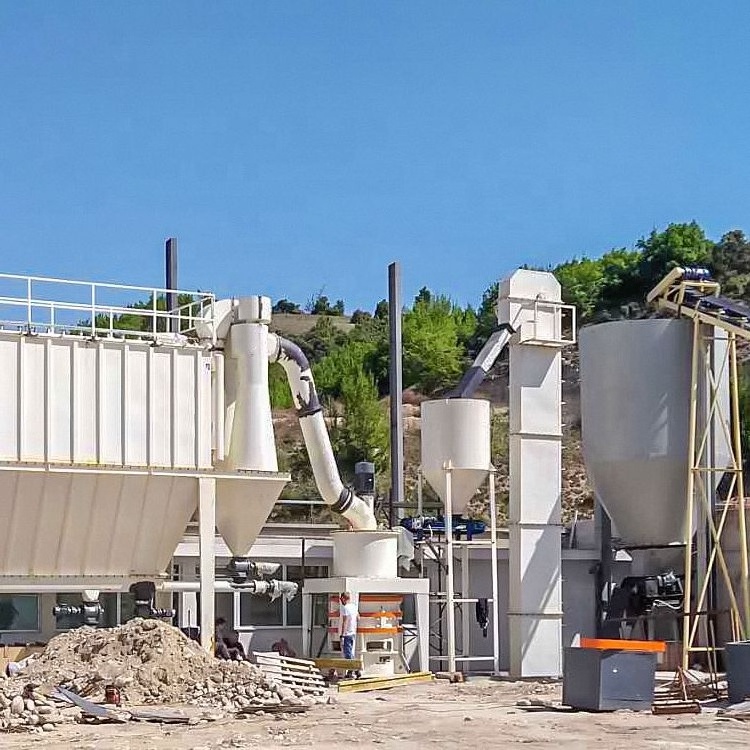

Working Principle&Flow of HGM ultra fine grinding mill

1. Large pieces of material are crushed to the required size by the jaw crusher.

2. Crushed material is sent to the storage hopper by elevator.

3. Vibrating feeder send material to the main grinding chamber evenly and continuously for grinding.

4. The ground powder is taken away by the airflow of the fan and classified by the analyzer.

5. The finished product that meets the fineness is collected by the airflow through the pipe, then into the large selection air collecting pipe.

6. The material is discharged through the powder outlet pipe to become the finished powder.

Advantages of HGM ultra fine grinding mill

1. HGM Ultrafine Grinding Mill has successfully replaced the jet mill, ball mill etc, simplifty the flow, reduce the production cost and increase the final powder fineness.

2. Wearing parts are made of wear-resistant materials. High utilization rate of Wear material: 2-5years.

3. Integrated design of powder milling and powder selection, with a smaller footprint.

4. Multi-layer grinding ring design for higher grinding efficiency

5. Wide grinding range. Adjustable particle size: 200-3000 mesh.

6. The structure is firm and reliable. The design of the mill is rigorous, so no screw loosening to damage the machine.

7. The operation of intelligent control system is more convenient.

8. Grinding cavity fully enclosed design and sound insulation room design.  It is the green and ideal equipment for environment protection.

Certification of HGM ultra fine grinding mill

As a professional grinding mill manufacturer in China, Shanghai Clirik had passed CE, ISO9001:2008, BV, SGS...and other many certification, and we also have our own patents.

------------------------------------------------------------------------------------------------------------------------------------------------------------
