Quick Details
-
Luminous Efficacy(lm/w):
-
100
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FUTAO
-
Shape:
-
Polygonal
-
Surface treatment:
-
Hot Dip Galvanized
-
Color:
-
Request
-
Height:
-
3-50m
-
Certificate:
-
ISO9001
-
Thickness:
-
2.5mm-20mm
-
Usage:
-
For lighting
-
Ground Mounted:
-
Base Plate
-
Welding:
-
AWS D 1.1
-
Warranty:
-
10Years
Quick Details
-
Material:
-
Steel
-
Type:
-
Polygonal
-
Application:
-
Other
-
Luminous Efficacy(lm/w):
-
100
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FUTAO
-
Shape:
-
Polygonal
-
Surface treatment:
-
Hot Dip Galvanized
-
Color:
-
Request
-
Height:
-
3-50m
-
Certificate:
-
ISO9001
-
Thickness:
-
2.5mm-20mm
-
Usage:
-
For lighting
-
Ground Mounted:
-
Base Plate
-
Welding:
-
AWS D 1.1
-
Warranty:
-
10Years

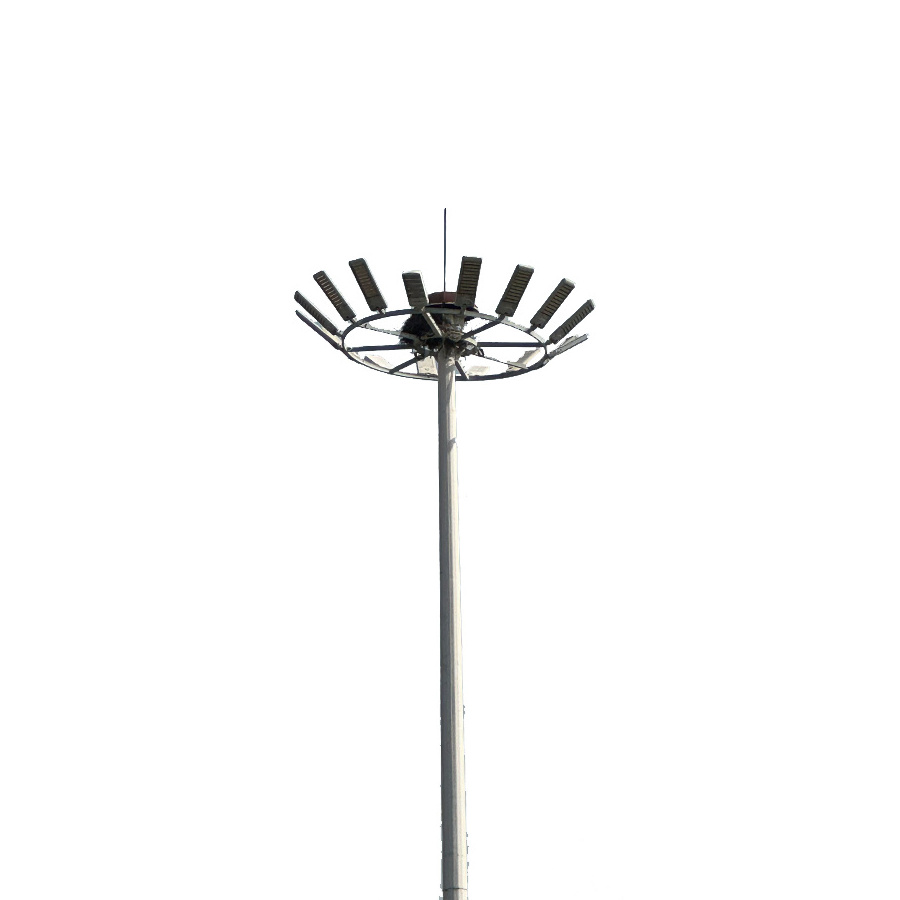

Galvanized Weather Resistant High Mast Lamp Steel Pole
|
Height |
From 15m to 25 m |
|
Suit for |
Airport ,seaport,plaza,stadium ,square,highway,street way etc |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Material |
Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
|
Lamp power |
20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
|
Torlance of the dimenstion |
+- 2% |
|
Optical assembly of lighting fixture |
IP 65 |
|
Electroshock resistant protective grade |
Grade one |
|
The casing anti-corrosion performance |
Class two |
|
Working atmosphere of lighting fixture |
-35 °C~+45 °C |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 12m once forming without slip joint |
|
Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
|
|
Style |
Size and styles are veriable as per customer request |
