- Product Details
- {{item.text}}
Quick Details
-
Power:
-
95kw
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
top brand
-
Dimension(L*W*H):
-
5564*2000*3700mm
-
Type:
-
RP405
-
Maximum paving width(m):
-
1.8~3.4m
-
Maximum paving thickness(mm):
-
260
-
Engine power(kW):
-
75/2000
-
Overall weight(T):
-
12
-
Minimum paving width(m):
-
4.5
-
Paving speed(m/min):
-
30
-
Travel speed(km/h):
-
3.6
-
Theoretical productivity(T/h):
-
300
-
Hopper capacity(T):
-
12
Quick Details
-
Weight:
-
33000 kg
-
Engine Brand:
-
Top brand
-
Production Capacity:
-
350 t/h
-
Power:
-
95kw
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
top brand
-
Dimension(L*W*H):
-
5564*2000*3700mm
-
Type:
-
RP405
-
Maximum paving width(m):
-
1.8~3.4m
-
Maximum paving thickness(mm):
-
260
-
Engine power(kW):
-
75/2000
-
Overall weight(T):
-
12
-
Minimum paving width(m):
-
4.5
-
Paving speed(m/min):
-
30
-
Travel speed(km/h):
-
3.6
-
Theoretical productivity(T/h):
-
300
-
Hopper capacity(T):
-
12
Contact way
Carlota ji
Whatsapp/Tel:
+86-18637752754
Wechat:
+86-18637752754
Email:
carlota@oriemac.com
Product features

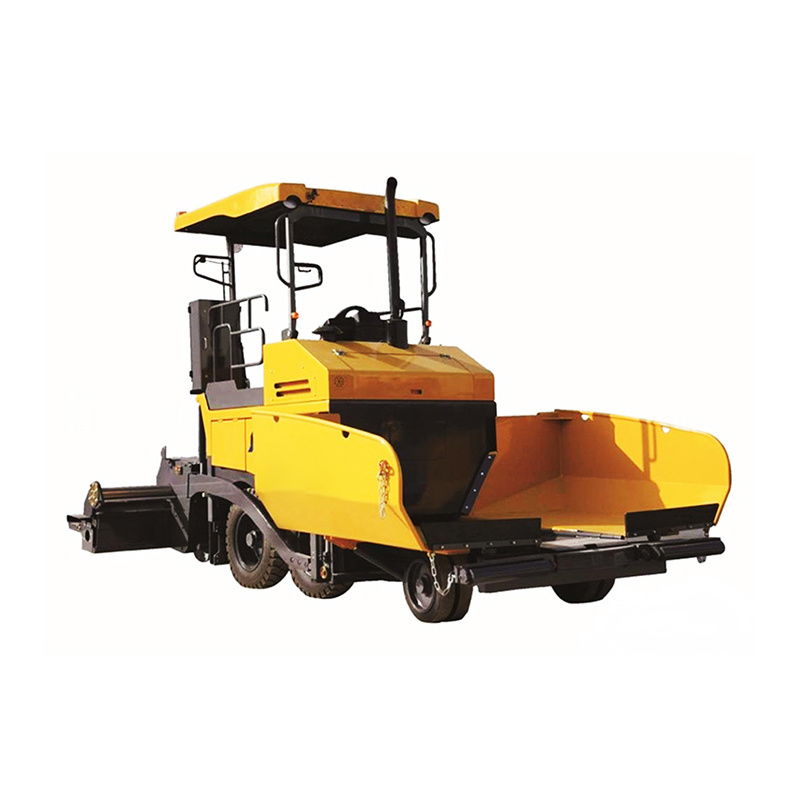

Road Construction Equipment 4m Asphalt Concrete Paver RP405
The RP403 paver is the first full-hydraulic small crawler asphalt paver in China. The whole machine adopts full hydraulic drive and electro-hydraulic automatic control, advanced technology and reliable performance.
The minimum width of the whole machine is only 1.8 meter, which is the smallest among domestic products. Due to its compact shape, it is widely used in large scale paving, including sidewalks, bike lanes, farm roads and small roads.
The paving width can be stepless adjusted from 0.8 meters (if installed with width limit device) to 4.5 meters, and is especially suitable for the maintenance of roads.
Performance Characteristics:
1.The device is equipped with a water-cooled turbocharged diesel engine (75kW/2000rpm), a powerful three-phase alternator with generator management system, and the generator adopts independent drive technology.
2.The hydraulic system adopts load-sensitive control technology on both sides.
3.The hoppers can be individually folded and oscillating follow-up inference.
4.The electronic control system design is a famous brand bus technology platform, a network control system of the CPU control technology, and an automatic leveling device.
Specifications
|
ltem
|
Unit
|
RP405
|
|
Basic Pave Width
|
m
|
1.8~3.4
|
|
Maximum Pave Width
|
m
|
4.5
|
|
Maximum Layer Thickness
|
mm
|
260
|
|
Maximum Paving Speed
|
m/min
|
30
|
|
Maximum Travel Speed
|
km/h
|
3.6
|
|
Hopper Capacity
|
t
|
12
|
|
Maximum L aydown Rate
|
t/h
|
300
|
|
Engine and Type
|
-
|
BF4M2012
|
|
Rated Power
|
kW/rpm
|
75/2000
|
|
Shipping Dimension (LxWxH)
|
mm
|
5581*1800*3152
|
|
Shipping Weight
|
t
|
11.5
|
|
Full Dimension (LxWxH)
|
mm
|
558*1800*3629
|
|
Full Weight
|
t
|
12
|
