Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Youngsun
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
Customized Size
-
Product name:
-
PTFE mesh Conveyor Belt
-
Color:
-
Brown
-
Application:
-
Fiberglass Mesh Cloth
-
Standing Temperature:
-
-60~260 C
-
Alkali Content:
-
Medium
-
Weave Type:
-
Plain Woven
-
Width:
-
4000mm
-
Yarn Type:
-
E-Glass
-
Surface Treatment:
-
PTFE Coated
-
Weight:
-
550g/㎡
-
Certification:
-
ISO
Quick Details
-
Power:
-
0.4kW - 22kW
-
Warranty:
-
3 months
-
Width or Diameter:
-
1000 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Youngsun
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
Customized Size
-
Product name:
-
PTFE mesh Conveyor Belt
-
Color:
-
Brown
-
Application:
-
Fiberglass Mesh Cloth
-
Standing Temperature:
-
-60~260 C
-
Alkali Content:
-
Medium
-
Weave Type:
-
Plain Woven
-
Width:
-
4000mm
-
Yarn Type:
-
E-Glass
-
Surface Treatment:
-
PTFE Coated
-
Weight:
-
550g/㎡
-
Certification:
-
ISO
Product Description:

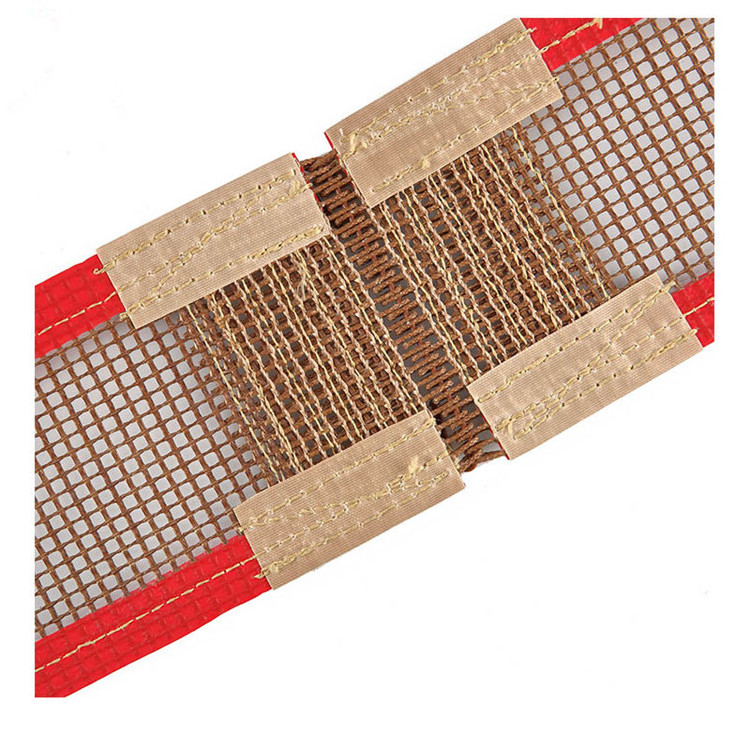

Youngsun select fine fiberglass as basic weaving material, coated with excellent PTFE resin to make it into various PTFE open mesh conveyor belts.
Properties:
1. High temperature resistance—It Can continuously work under-140 to 320°C,max resist high temperature up to 360°C.
2. Permeability—It can avoid wasting heat and improve drying efficiency for it’s permeability.
3. Chemical resistance—It can resist all most of chemical medicines.
4. Non Stick—It can easily remove all kinds of adhesives such as resin, paint and chemical
medicine, easy to clean.
5.Good flex fatigue resistance—It has high tensile strength and excellent flex fatigue resistance. It’s better for small wheels.
Applications:
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer
3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
4. Oiling machine for paper glazing and waxing, plant engineering.
5. Seperating sheet for hardboard production etc.
Advantages:
1. Avoid wasting heat and improve drying efficiency
2. High temperature and chemical resistant
3. Non stick
4. Flex fatigue resistant
|
Model |
Mesh Size |
Material |
Thickness |
Weight |
Temp Resistance |
Max Width |
Tensile Strength |
|
YS-6001 |
1x1mm |
fiberglass |
0.5mm |
370g/m² |
-70~320°C |
4000mm |
310/290N/cm |
|
YS-6002 |
2x2mm |
fiberglass |
0.7mm |
450g/m² |
-70~320°C |
4000mm |
350/310N/cm |
|
YS-6003 |
4x4mm |
fiberglass |
1.0mm |
400g/m² |
-70~320°C |
4000mm |
390/320N/cm |
|
YS-6004 |
4x4mm |
fiberglass |
1.0mm |
450g/m² |
-70~320°C |
4000mm |
390/320N/cm |
|
YS-6007 |
4x4mm |
fiberglass +kevlar |
1.2mm |
600g/m² |
-70~320°C |
4000mm |
895/370N/cm |
|
YS-6008 |
4x4mm |
fiberglass |
1.0mm |
500g/m² |
-70~320°C |
4000mm |
395/370N/cm |
|
YS-6010 |
4x4mm |
Kevlar |
1.0mm |
500g/m² |
-70~320°C |
4000mm |
900/600N/cm |
|
YS-6012 |
4x4mm |
fiberglass |
1.0mm |
550g/m² |
-70~320°C |
4000mm |
395/370N/cm |
|
YS-6013 |
10x10mm |
fiberglass |
1.2mm |
450g/m² |
-70~320°C |
4000mm |
360/300N/cm |
|
YS-6014 |
0.5x1mm |
fiberglass |
0.5mm |
420g/m² |
-70~320°C |
4000mm |
310/290N/cm |
|
YS-6015 |
2x2.5mm |
fiberglass |
0.9mm |
600g/m² |
-70~320°C |
3000mm |
390/320N/cm |
Width : 0-4000mm. Special sizes can be made upon request.
1. MOQ: 10m 2
2. FOB Price: USD4-6
3. Port: Shanghai/Ningbo
4. Payment Terms: T / T, L/C
5. Supply Ability: 100000
m
2
/ week
6. Delivery period: 3-10days after advance payment or confirmed L / C received
7. Conventional packaging: rolls in carton box or upon customers' request
