- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Wanzhong
-
Model Number:
-
reinforcing mesh welding machine
-
Weight (KG):
-
4500
-
Power (kW):
-
55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Wire Diameter:
-
5.0-12.0mm
-
Inlet Hot Roll Bar Diameter:
-
6-14mm
-
Motor:
-
55+18.5Kw
-
Control System:
-
Fully Frequency
-
Working Speed:
-
120m/min
-
Receiving Wire Way:
-
I Spool
-
Receiving Wire Weight:
-
1.0-2.0Tons
-
Ribbed Roll Way:
-
Two Face or Three Face Customized
-
Roll Wire Drum Diameter:
-
800mm
Quick Details
-
Wire Diameter (mm):
-
5 - 12 mm
-
Production Capacity:
-
30 sets
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Wanzhong
-
Model Number:
-
reinforcing mesh welding machine
-
Weight (KG):
-
4500
-
Power (kW):
-
55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Wire Diameter:
-
5.0-12.0mm
-
Inlet Hot Roll Bar Diameter:
-
6-14mm
-
Motor:
-
55+18.5Kw
-
Control System:
-
Fully Frequency
-
Working Speed:
-
120m/min
-
Receiving Wire Way:
-
I Spool
-
Receiving Wire Weight:
-
1.0-2.0Tons
-
Ribbed Roll Way:
-
Two Face or Three Face Customized
-
Roll Wire Drum Diameter:
-
800mm
Product Overview

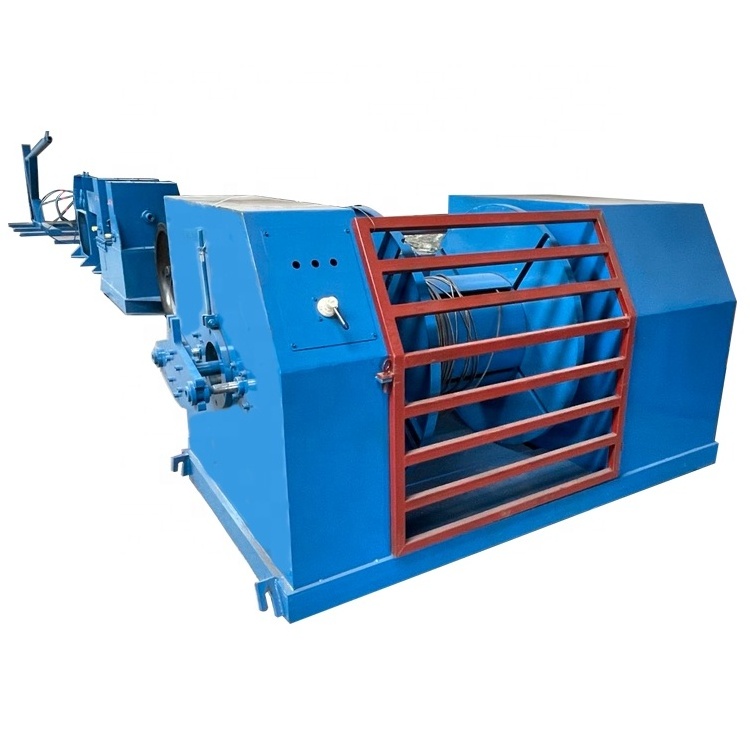

Hot Sale Factory Price Cold Rolled Steel Bar Ribbed Wire Making Machine
This Machine is mainly used to produce cold deformed steel rebars.
FEATURES AT A GLANCE
Line Wires Automatic Feeding System
Five Wheels
Phosphorous Removing Device,Materials Cr Steel
PRODUCT SPECIFICATIONS
|
No
|
Item
|
WZ-10000T
|
WZ-15000T
|
WZ-20000T
|
||
|
1
|
Inlet Steel Wire Diameter(mm)
|
5.0-13.5
|
6.0-14.0
|
5.5-14.0
|
||
|
2
|
Outlet Ribbed Bar Diameter(mm)
|
4.0-12.0
|
5.0-13.0
|
5.0-13.0
|
||
|
3
|
Power(kw)
|
37.5+11.0(18.5)
|
55+11.0(18.5)
|
75*2+11.0(18.5)
|
||
|
4
|
Working Speed(m/min)
|
100
|
120
|
200
|
||
|
5
|
Control Way
|
Fully Frequency
|
|
|
||
|
6
|
Receiving Wire Way
|
I Spool Take-up Machine(1.0Ton or 2.0Ton)
|
|
|
||
PRODUCT CONFIGURATION
Three Face Ribbed Wire Device
I Spool Receiving Wire Device
Phosphorous Removing Device
SALES AND SERVICE NETWORK
FAQ
Q:Are you manufacture or trading company?
A:We are manufacture,our factory set up on 2006,So we can give you a competitive price.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt,they will inspect the machine before shipping,to ensure there is nothing problem of the machine.
Q:Does the packing strong?
A:Yes,of course!All of our export packing,all to meet the export packing standards.
Q:How about after-sales service process?
A:When your machine has problem,cantact our sales and we will solve your problem as soon as possible.
Q:Where is your factory?
A:Our factory located in wire mesh industrial zone,anping county,hebei province,china,welcome to visit our factory!
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
A:We are manufacture,our factory set up on 2006,So we can give you a competitive price.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt,they will inspect the machine before shipping,to ensure there is nothing problem of the machine.
Q:Does the packing strong?
A:Yes,of course!All of our export packing,all to meet the export packing standards.
Q:How about after-sales service process?
A:When your machine has problem,cantact our sales and we will solve your problem as soon as possible.
Q:Where is your factory?
A:Our factory located in wire mesh industrial zone,anping county,hebei province,china,welcome to visit our factory!
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
RELEVANT MACHINES
COMPANY INFORMATION
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the production of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines,Wire Drawing Machines, Chain Link Fence Machines, Nail Making Machines, Barbed Wire Machines, Razor Barbed Wire Machines,etc.
Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is “AAA”.
Our machines have already been exported to more than 40 countries, including Trinidad and Tobago,the United Arab Emirates,Kuwait,Brazil,Chile,Peru,Russia,Malaysia,Algeria,Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania, Egypt and so on.
Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.
Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is “AAA”.
Our machines have already been exported to more than 40 countries, including Trinidad and Tobago,the United Arab Emirates,Kuwait,Brazil,Chile,Peru,Russia,Malaysia,Algeria,Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania, Egypt and so on.
Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.
