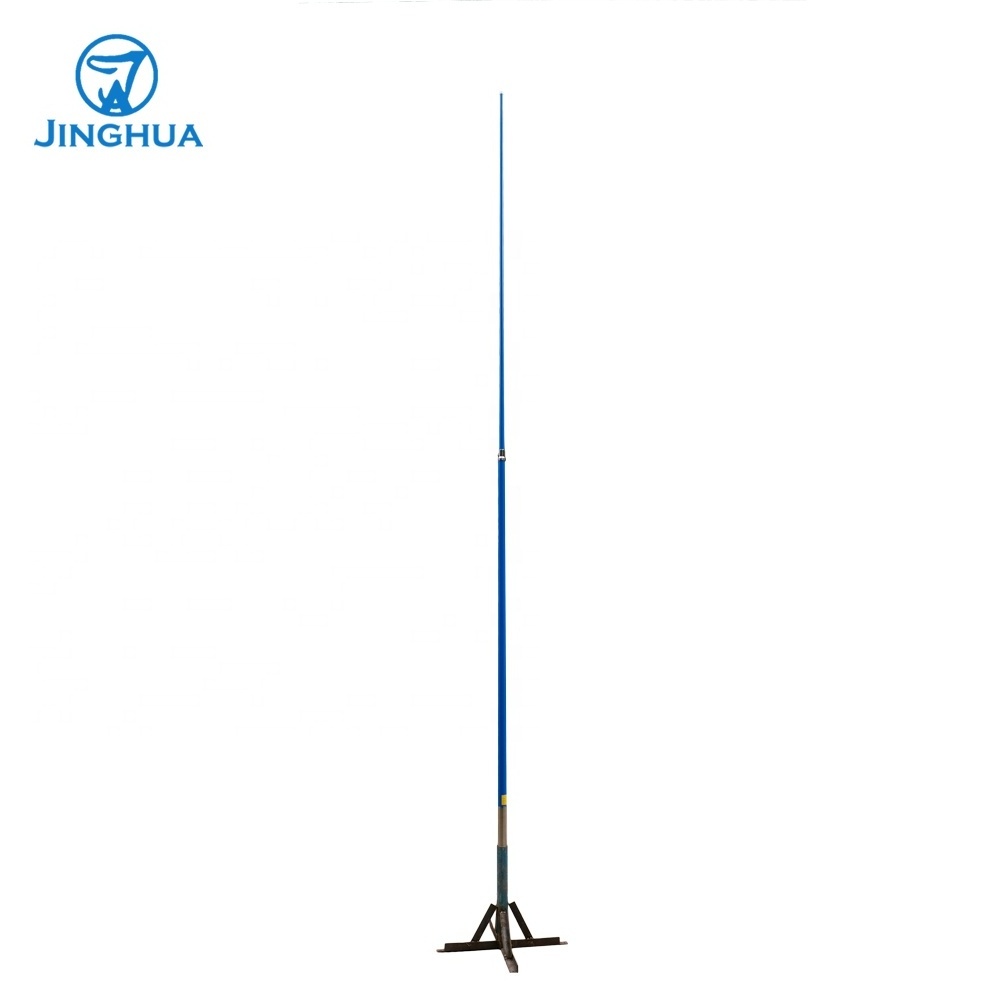

Designed for marine used and this rugged omnidirectional antenna supports VHF band in 160MHz-164MHz. It's widely used in marine wireless communication transmission system. It has 13
dBi high gain to support long distance radio communication.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Frequency:
-
160-164
-
Gain:
-
13
-
VSWR:
-
≤1.5
-
Connector:
-
N-K
-
Color:
-
White
-
Name:
-
Antenna
-
Cable type:
-
RG58
-
Dimension:
-
5500
-
Application:
-
Mobile Radio
Quick Details
-
Type:
-
Base station Antenna
-
Brand Name:
-
Jinghua
-
Model Number:
-
JH-OF-160-13-5500
-
Place of Origin:
-
Guangdong, China
-
Frequency:
-
160-164
-
Gain:
-
13
-
VSWR:
-
≤1.5
-
Connector:
-
N-K
-
Color:
-
White
-
Name:
-
Antenna
-
Cable type:
-
RG58
-
Dimension:
-
5500
-
Application:
-
Mobile Radio
Product Specificaton
01
02
High gain,
Low VSWR,
Long coverage, Stable connection.
03
Ideal in offshore telecommunication between boats and radio system in designated bands.
04
Application: Wakie-talkie, Radio system, TV broadcasts, Marine system, etc.
05
Heavy duty fiberglass radome for extra protection from offshore environment.
06
Waterproof design for all weather conditions. Durable for years.
07
Customized frequency, gain, connectors cables
|
MODEL
|
JH-OF-160-13-5500
|
|
|
Electrical Specifications
|
|
|
|
Frequency range (MHz)
|
160-164
|
|
|
Gain (dBi)
|
13
|
|
|
Horizontal beamwidth (°)
|
360
|
|
|
Vertical beamwidth (°)
|
60
|
|
|
F/B Ratio
|
>15
|
|
|
VSWR
|
≤1.5
|
|
|
Impedance (Ω)
|
50Ω
|
|
|
Polarization
|
Veritical/Horizontal
|
|
|
Connector
|
SL16/N-K/Customized
|
|
|
Mechanical Specifications
|
|
|
|
Cable Type
|
RG58
|
|
|
Size (mm)
|
φ35-50*5500
|
|
|
Weight (kg)
|
12
|
|
Q: May I order samples in small amount before placing bulk orders?
A
: Yes samples are available while costs will be paid upfront and this will deduct in bulk orders. Sample costs for customized products will be a case to case scenario. Please contact us for details.
Q: What is your default shipping terms?
A
: Our default terms is FOB. Please note that shipping cost is not included in the product price shown above, and customer pays the related freight charges and handling fees.
Q: Are you a manufacturer or a trading company? Do you do OEM&ODM?
A
: We are manufacturer. We have a factory located in Guangzhou China and we make every order in-house. OEM and OEM are welcomed.
Q: What's your lead time?
A
: Please allow us 10-15 business days after order confirmation. Lead time also depends on the size and type of antennas in your order.
Q: What's the accepted forms of payment?
A
: We accept T/T, West Union, PayPal, L/C and Credit cards.
