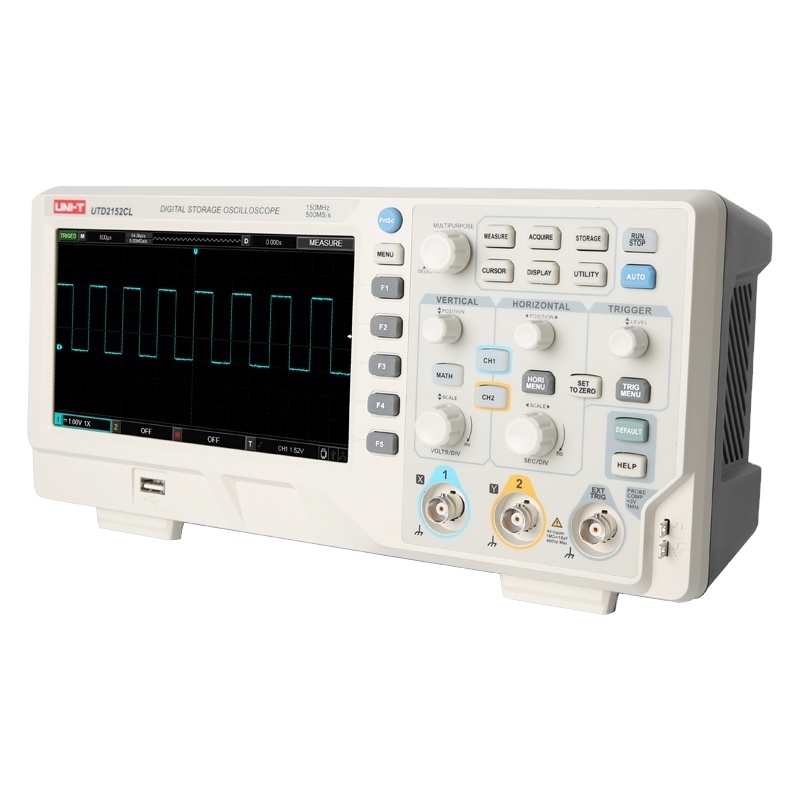

UNI-T UTD2152CL Dual Channel Digital Storage Oscilloscope Industrial/Laboratory Electronic Measuring Instrument

FOB Reference Price: Get Latest Price

≥1 Pieces

US $269

≥20 Pieces

US $259

≥1000 Pieces

US $239

Free Inquiry

Customized Request

Quick Details

Related Products

Product Description

1.70MHz/150MHz bandwidth, 2 analog channels

2. The sampling rate is 500MS/s, the storage depth is 64kpts

3. Waveform capture rate 5,000wfms/s

4.34 kinds of waveform parameters automatic measurement

5. Wider display range 8div×16div

6. Standard square wave output with multiple frequencies: 10Hz, 100Hz, 1kHz, 10kHz

7. Unique independent time base

8. Lissajous waveform phase measurement

9. Support plug and play USB storage device, and can communicate with computer and remote control via USB

Specifications
Model	UTD2072CL	UTD2152CL
Channels	2
Bandwidth	70MHz	150MHz
Sampling rate	500MS/s
Rise time	<5ns	<2.4ns
Memory depth	64kpts
Waveform capture rate	>5, 000wfms/s
Vertical scale (V/div)	1mV/div~20V/div
Time base scale (s/div)	2ns/div~50s/div
Timing accuracy	≤± (50+2 × service life) ppm
Time base modes	Y-T, X-Y, Roll
Storage methods	Setup, wave, bitmap
Trigger types	Edge, pulse, alternate, slope, video
Mathematical operations	A+B, A-B, A×B, A/B, FFT
Auto measurements	Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq,Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR , FFF, LRF, LRR, LFR, LFF, Area, CycArea, OverSht, PreSht, Phase, 34 paramet ers in total
Number of measurements	Display 5 measurements at the same time
Frequency counter	6 bits
Standard interfaces	USB OTG, Pass/Fail
