Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Caretech
-
Voltage:
-
380v (or customized), 380v (or customized)
-
Power:
-
12kw, 12kw
-
Dimension(L*W*H):
-
2300*2800*1800mm
-
Weight:
-
1000 kg, 1000kg
-
Product name:
-
Double Side Glass Edging Polishing Machine Line
-
Dimension:
-
2300*2800*1800mm
-
Min processing size:
-
10*10cm
-
Max processing size:
-
150cm(Not fixed, can be customized)
-
Min glass processing thickness:
-
2mm((Not fixed, can be customized)
-
Glass transfer speed:
-
10-20m/min
-
After-sales Service Provided:
-
Engineers available to service
Quick Details
-
Machine Type:
-
Glass Beveling Machine
-
Glass Thickness:
-
3-19mm
-
Production Capacity:
-
10-20m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Caretech
-
Voltage:
-
380v (or customized), 380v (or customized)
-
Power:
-
12kw, 12kw
-
Dimension(L*W*H):
-
2300*2800*1800mm
-
Weight:
-
1000 kg, 1000kg
-
Product name:
-
Double Side Glass Edging Polishing Machine Line
-
Dimension:
-
2300*2800*1800mm
-
Min processing size:
-
10*10cm
-
Max processing size:
-
150cm(Not fixed, can be customized)
-
Min glass processing thickness:
-
2mm((Not fixed, can be customized)
-
Glass transfer speed:
-
10-20m/min
-
After-sales Service Provided:
-
Engineers available to service

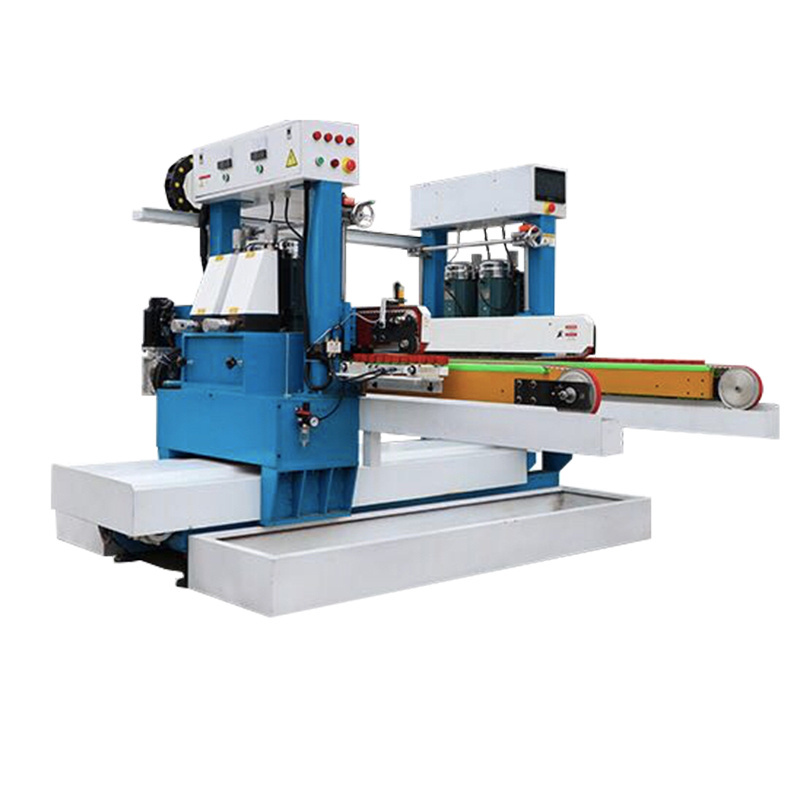

Double Side Glass Edging Polishing Machine Line
The product is suitable for grinding flat glass with double straight sides. Rough grinding, fine grinding, polishing safety angle (installed safety chamfering wheel) once completed.
Grinding head sliding with double straight rolling guide, double ball screw drive to reach a stable moving speed, eliminate mobile clearance, reduce resistance and friction, to ensure repeat positioning. PLC control system set the processing parameters by the interface to complete the processing. The use of automatic compensation polishing brake mechanism to ensure the surface finish after grinding. Width opening and closing and crawler drive using high-power inverter motor. Speed control, constant power, constant twist rejection output, stable and reliable.
This glass double-sided machine has been improved compared to the bilateral machines currently on the market. Added CNC system, with automatic opening and closing system to automatically adjust the edging width. Manual mode, automatic mode is optional. The machine has improved the single drive of the gearbox, two servo drives are used to make the machine edging more accurate and the belt replacement is more convenient in the later period.
|
Dimension |
|
|
Weight |
1000kg |
|
Min processing size |
10*10cm |
|
Max processing size |
150cm(Not fixed, can be customized) |
|
Min glass processing thickness |
2mm((Not fixed, can be customized) |
|
Glass transfer speed |
10-20m/min |
|
Power |
12kw |
|
Voltage |
380v (or customized) |
* Small pieces of glass crafts round edge * Home decorated glass, furniture glass edging
*Building decoration, mirror edge and so on *Deep processing of glass and other industries
