Quick Details
-
CE:
-
Certified
-
ISO9001:2008:
-
Certified
-
OEM:
-
Support
-
Gain:
-
Adjustable
-
Voltage:
-
20V, 1200MA
-
Cascadabel:
-
Support
-
Slope Gain:
-
Support
-
ANT IN:
-
1 Port
-
LNB IN:
-
4 Ports
-
Product name:
-
Multiswitch amplifier
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GECEN / OEM
-
Model Number:
-
MS-5A
-
CE:
-
Certified
-
ISO9001:2008:
-
Certified
-
OEM:
-
Support
-
Gain:
-
Adjustable
-
Voltage:
-
20V, 1200MA
-
Cascadabel:
-
Support
-
Slope Gain:
-
Support
-
ANT IN:
-
1 Port
-
LNB IN:
-
4 Ports
-
Product name:
-
Multiswitch amplifier

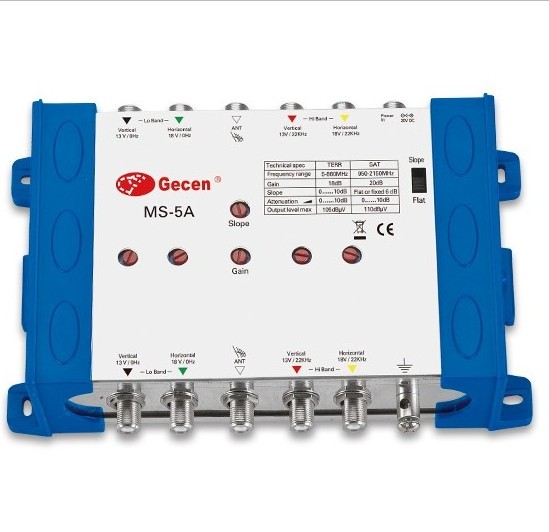

Gecen Satellite Multiswitch Amplifier with 5 inputs
Features:
- Gain adjustable design
- Can compensate the loss in your distribution system
- External 20V, 3000mA DC power supply
- Red LED for power in, yellow LED for power link
Specifications
|
Item
|
Specification
|
Item
|
Specification
|
|
Frequency Range ANT
|
5-860(MHz) |
Output Level ANT
|
105(dBuV)
|
|
Frequency Range SAT
|
950-2150 (MHz) |
Output Level SAT |
110(dBuV) |
|
Gain SAT |
20(dB) |
Noise Figure |
6(dB) |
|
Gain ANT
|
18(dB) |
DC Power Consumption |
350(mA) |
|
Slope Control SAT
|
0/6(dB) selectable |
Supply Voltage(VDC) |
20V(±1)1200mA |
|
Slope Control ANT
|
0-10(dB) |
Temperature Range |
-20 °C -60 °C |
|
Return Loss
|
10(dB) |
Impedance(all ports) |
75(Ω) |
|
Gain Adjustable Range
|
0-10(dB) |
|
|
Connectors:“F”type female
