* The normal models of hydraulic hose crimper are in stock, they can be delivered once the payment is finished. As for the
customized ones, we promise that they can be deliverd within a week after we received the payment.
* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
730*1000*1620mm
-
Weight:
-
1230
-
Power (kW):
-
5.5kW
-
Model:
-
Y160
-
Max Hydraulic Hose Size:
-
2" 6SP (ID 51mm)
-
Crimping Range:
-
3mm-89mm
-
Max Opening:
-
+65mm
-
Accessible Diameter:
-
160mm
-
Master Dies Length:
-
100mm
-
weight:
-
1230kg
-
Maxi. Crimping Force:
-
2800kN/280T
-
Size:
-
730*1000*1620mm
-
System Pressure:
-
31.5Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YONG-FENG
-
Voltage:
-
110/220/380/400/415V
-
Dimension(L*W*H):
-
730*1000*1620mm
-
Weight:
-
1230
-
Power (kW):
-
5.5kW
-
Model:
-
Y160
-
Max Hydraulic Hose Size:
-
2" 6SP (ID 51mm)
-
Crimping Range:
-
3mm-89mm
-
Max Opening:
-
+65mm
-
Accessible Diameter:
-
160mm
-
Master Dies Length:
-
100mm
-
weight:
-
1230kg
-
Maxi. Crimping Force:
-
2800kN/280T
-
Size:
-
730*1000*1620mm
-
System Pressure:
-
31.5Mpa
For more products, please click to consult
Products Description

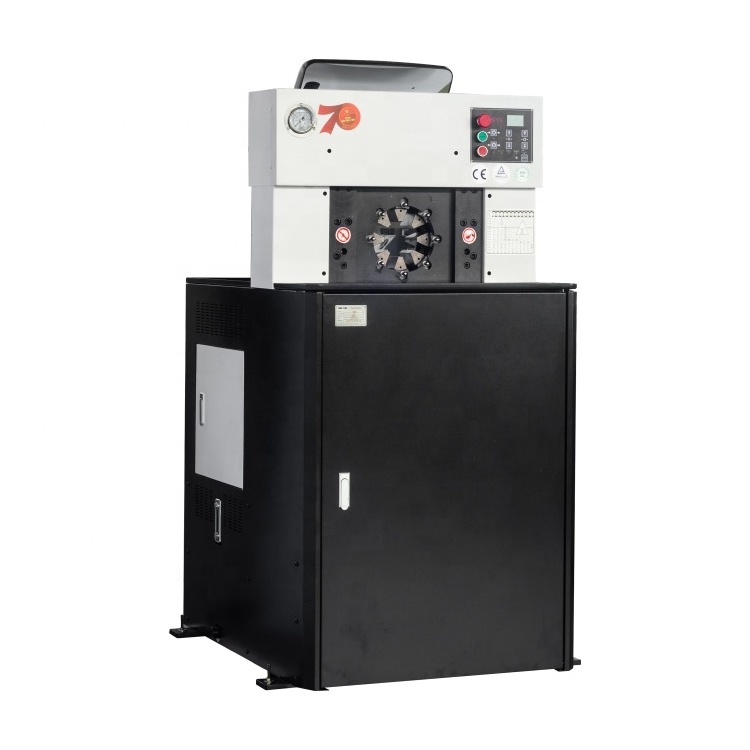

Y160 crimiping machine hydraulic hose 2 is leading in terms of speed, precision, reliability and durability. She's suitable for
high strength pressure hydraulic hoses and industrial hoses, and designed to handle the high production volumes hoses. Y160 crimiping machine hydraulic hose 2 is strong and compact, easy to move from one place to another
high strength pressure hydraulic hoses and industrial hoses, and designed to handle the high production volumes hoses. Y160 crimiping machine hydraulic hose 2 is strong and compact, easy to move from one place to another
|
TECHNICAL DATA
|
|
|
|
H.C. Material
|
Forge Steel (Cr40)
|
|
|
Max Hose Size
|
2", 6SP (ID 51mm)
|
|
|
Crimping Range
|
3mm-89mm (1/8"-3 1/2")
|
|
|
Max Opening/mm
|
+65
|
|
|
Opening without Dies
|
160mm (6 5/16")
|
|
|
Accessible Diameter
|
160mm (6 5/16")
|
|
|
Master Die Length
|
90mm
|
|
|
System Pressure
|
31.5Mpa
|
|
|
Motor
|
5.5kW
|
|
|
Voltage
|
110/220/380/400/415V
|
|
|
Crimping Force
|
2800kN/280T
|
|
|
Conttol
|
Digital
|
|
|
Noise Level
|
60dBA
|
|
|
Weight
|
1230kg
|
|
|
Size (L*W*H)
|
730*1000*1620mm
|
|
Detailed Images
Attribute: CNC Operation Panel YONG-FENG Y160 crimiping machine hydraulic hose 2 is equipped with computer numerical control
operation panel. It makes crimping more accurate, faster and simpler. Attribute: Forge Steel Front cover, cylinder and piston use
Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC 26-30°, hardness of inside layer is
HRC59-63°, Eht 2mm. Attribute: Strong Connection Use Cr12 standard die steel which is a classical alloy tool steel, domestic
implementation standard is GB/T 1299-2000.
operation panel. It makes crimping more accurate, faster and simpler. Attribute: Forge Steel Front cover, cylinder and piston use
Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC 26-30°, hardness of inside layer is
HRC59-63°, Eht 2mm. Attribute: Strong Connection Use Cr12 standard die steel which is a classical alloy tool steel, domestic
implementation standard is GB/T 1299-2000.
