Quick Details
-
Model Number:
-
RM03-BW01V
-
Brand:
-
Rayman
-
Product name:
-
Ultrasound Machine
-
Screen:
-
12 inch HD display
-
Display modes:
-
B;B/B;4B;B +M;M
-
System:
-
singlechip (SCM)
-
Storage space:
-
128 permament storage
-
The probe interface:
-
Dual probe socket
-
Language:
-
Support 2 languages (English & Chinese)
-
External interface:
-
PAL video output, SVGA video output;USB
-
Report page:
-
Photo print
Quick Details
-
Properties:
-
Diagnosis & Injection
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Model Number:
-
RM03-BW01V
-
Brand:
-
Rayman
-
Product name:
-
Ultrasound Machine
-
Screen:
-
12 inch HD display
-
Display modes:
-
B;B/B;4B;B +M;M
-
System:
-
singlechip (SCM)
-
Storage space:
-
128 permament storage
-
The probe interface:
-
Dual probe socket
-
Language:
-
Support 2 languages (English & Chinese)
-
External interface:
-
PAL video output, SVGA video output;USB
-
Report page:
-
Photo print
Overview
Product Description

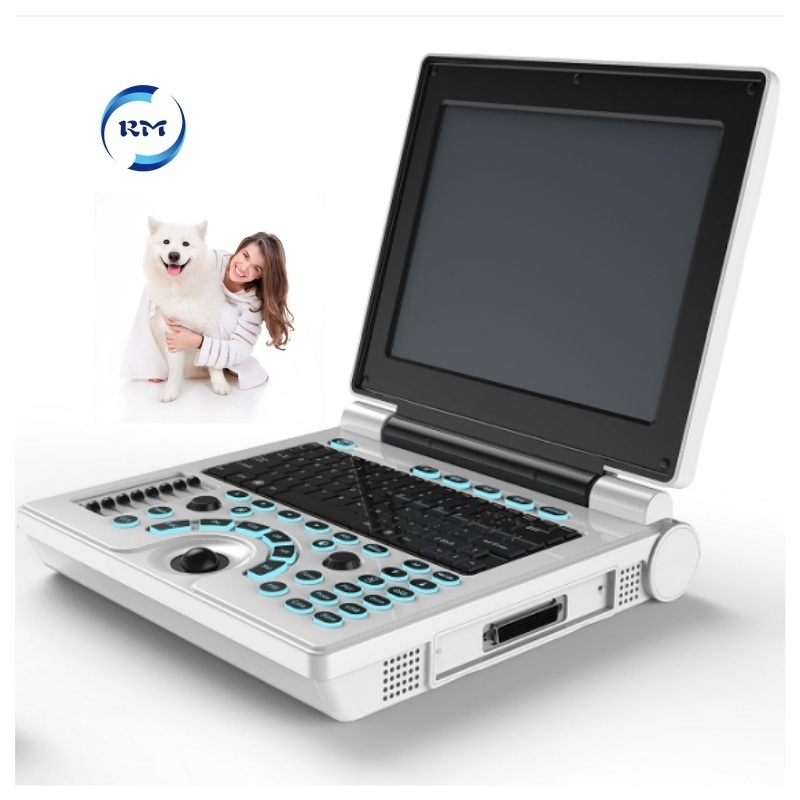

Rayman Veterinary Medical instrument ultrasound portable Scanner ultrasonic Vet ultrasound machine
Features:
★
12" LED display
★ Display modes: B;B/B;4B;B +M;M
★ 2 probe sockets
★ Built-in lithium battery
★ Internal 60GB disk, can store and print directly
★ Display modes: B;B/B;4B;B +M;M
★ 2 probe sockets
★ Built-in lithium battery
★ Internal 60GB disk, can store and print directly
★
Output: HDMI, VGA, DICOM, USB, LINE
★
Optional 3D software
★ Standard keyboard and backlight key
★ Application mode OB, GYN, superficial organ, urology, pediatric,cardiac, etc.
★ Multiple probes: Convex, Trans-vaginal, Linear, Micro-convex, Rectal
★ Standard keyboard and backlight key
★ Application mode OB, GYN, superficial organ, urology, pediatric,cardiac, etc.
★ Multiple probes: Convex, Trans-vaginal, Linear, Micro-convex, Rectal
Standard Configuration:
※ One host machine
※ One convex array probe:F=3.5MHZ
※ One power adapter
※ 11.1 V 5200MAH Li battery
※ USB port
※ Computer keyboard design, easy and fast operation
※ One host machine
※ One convex array probe:F=3.5MHZ
※ One power adapter
※ 11.1 V 5200MAH Li battery
※ USB port
※ Computer keyboard design, easy and fast operation
Rayman Veterinary Medical instrument ultrasound portable Scanner ultrasonic Vet ultrasound machine
Other parameters:
|
Designation
|
Performance
|
|
Displayer
|
12.1 inch LCD color display
|
|
Perimeter and areameasured deviation(%)
|
≤±20%
|
|
The battery pack workscontinuously
|
>2 hour
|
|
Input power
|
AC220V士22V，1.5A
|
|
Gross weight
|
About6 .2 kg
|
|
Host weight
|
about 5.5 kg
|
|
Host appearance size
|
310 x338 x76 (length x width x height)(mm3)
|
|
The outer packing size
|
490*460*250mm (length x width x height)(mm³)
|
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Rayman
|
|
Model Number
|
RM03-BW01V
|
|
Power Source
|
Electric
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Material
|
Material
|
|
Shelf Life
|
3 years
|
|
Quality Certification
|
Quality Certification
|
|
Instrument classification
|
Class II
|
|
Safety standard
|
None
|
|
Product name
|
Ultrasound Machine
|
|
Screen
|
12" LCD display
|
|
Display modes
|
B;B/B;4B;B +M;M
|
|
Output
|
HDMI, VGA, DICOM, USB, LINE
|
|
Multiple probes
|
Convex, Trans-vaginal, Linear, Micro-convex, Rectal
|
|
Gray scale
|
256 levels
|
|
Language
|
CN,EN,RUS,POR,ESP,FR,DE
|
|
Dynamic range
|
0~120db adjustable
|
