Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC 3W Uv Laser Marking Machine, JX AUTO CNC 3W Uv Laser Marking Machine
-
Marking Head Brand:
-
JX AUTO 3W Uv Laser Marking Machine
-
Weight (KG):
-
128 KG
-
Marking Area:
-
200*200MM
-
Warranty of core components:
-
1 years
-
Core Components:
-
3W Uv Laser Marking Machine
-
Feature:
-
GLASS MARKING
-
Laser wavelength:
-
355nm
-
Dimension(L*W*H):
-
1300*650*800mm
-
Laser head:
-
galvenometer head
-
Support Format:
-
DXF PLT JPG BMP AI
-
Marking Speed:
-
58000mm/second
-
Marking Depth:
-
0.01-4mm
-
Lifespan of laser device:
-
100,000 hours
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, DXF
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC 3W Uv Laser Marking Machine, JX AUTO CNC 3W Uv Laser Marking Machine
-
Marking Head Brand:
-
JX AUTO 3W Uv Laser Marking Machine
-
Weight (KG):
-
128 KG
-
Marking Area:
-
200*200MM
-
Warranty of core components:
-
1 years
-
Core Components:
-
3W Uv Laser Marking Machine
-
Feature:
-
GLASS MARKING
-
Laser wavelength:
-
355nm
-
Dimension(L*W*H):
-
1300*650*800mm
-
Laser head:
-
galvenometer head
-
Support Format:
-
DXF PLT JPG BMP AI
-
Marking Speed:
-
58000mm/second
-
Marking Depth:
-
0.01-4mm
-
Lifespan of laser device:
-
100,000 hours
Products Description
Big Promotion Sale

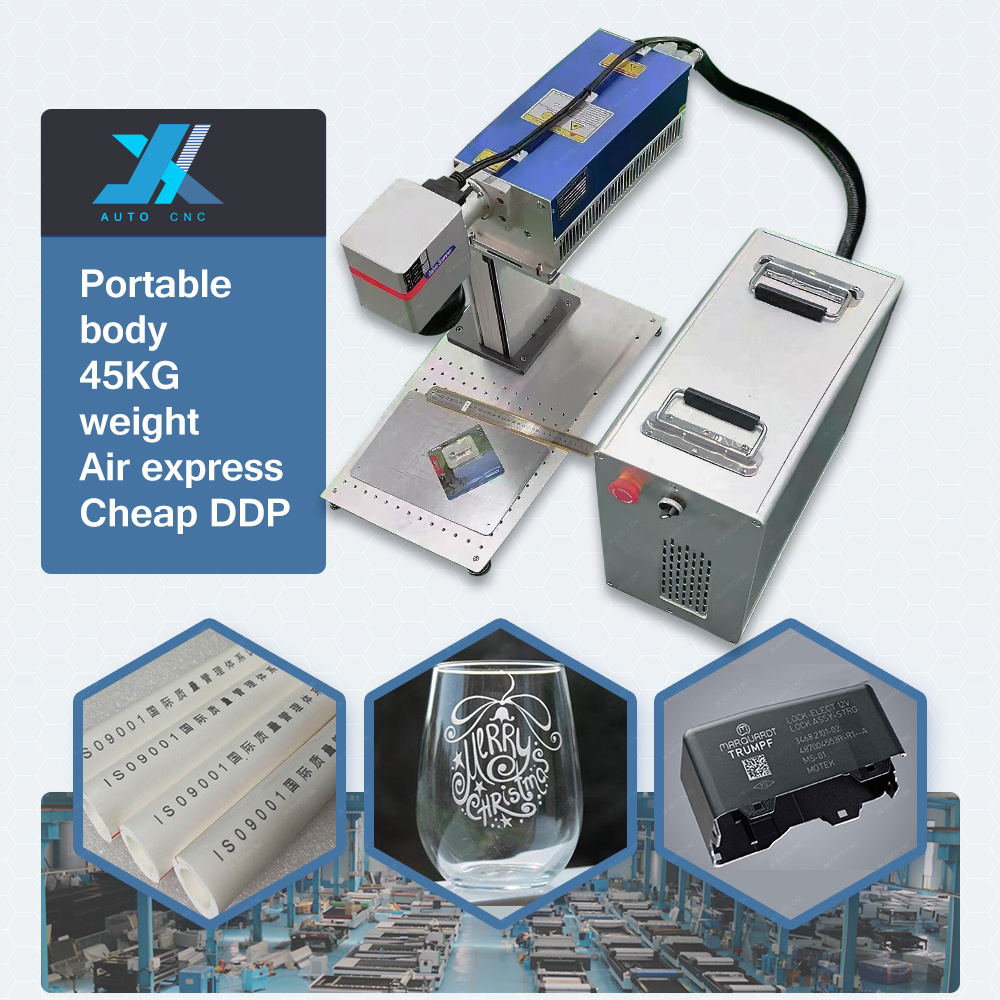

UV Laser Printing Marking 5w Mini Portable Jewelry Jpt UV Laser Marking Machine For Metal Plastic Glass
(Contact:Alice whatsapp:008618053182392 Email:
manager@jingxiaocnc.com
)
Our Advantages
1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 40kg.
2. High Precision: Re-position precision is 0.002mm
3.High Speed: Imported scanning system makes the scanning speed is up to 7000m/s
4.Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5.High Reliability: MTBF>100,000 hours
6. Energy Saving: The efficiency of optic-electrical converting is up to 30%
7.Low Running Cost: No wearing part. Free maintaining.
|
Model
|
JX-UV-5W
|
|
Laser wavelength
|
355nm
|
|
Marking speed
|
7000mm/s
|
|
Frequency range
|
10-100KHz
|
|
Pulse width range
|
13-80ns
|
|
Marking range
|
110*110mm/150*150mm/175*175mm/200*200mm/250*250mm/300*300mm etc.(optional)
|
|
Repeatability
|
±0.1μm
|
|
Beam diameter
|
0.8mm
|
|
Cooling mode
|
Water cooling/Air cooling
|
|
Graphic formate supported
|
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc
|
|
Machine voltage
|
220V/110V/380V(±10%),50Hz-60HZ |
|
Applicable materials
|
plastic/glass/metal/nylon/PCB/silicon/LCD glass/rubber/wood etc.
|
